CH 611 DH - Bear Cat 6" Chipper, 1.1 L Diesel Kubota (SN: 5VJAA0017BW002754 - 5VJAA0014CW003748) Hood Parts Diagram

6" Chipper, 1.1 L Diesel Kubota

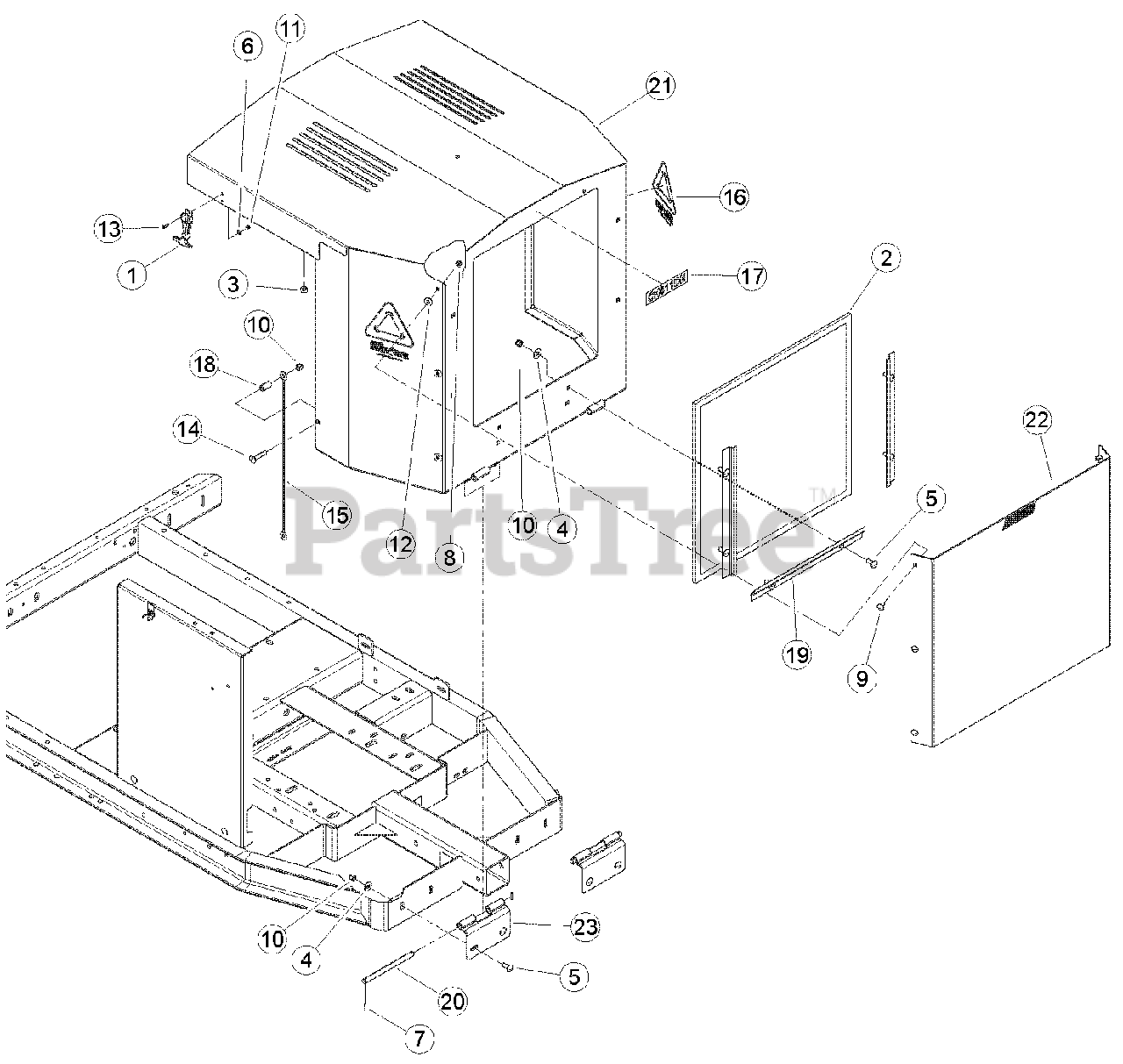

Hood Parts Diagram

  • Title

1

0125-0060-00

LATCH, FLEXIBLE DRAW

$

$

Not available

2

Bear Cat 12278

SCREEN, RADIATOR INLET

$136.99

$

Usually ships in 3-7 days

0

3

Bear Cat 13904-00

BUMPER, RUBBER

$2.99

$

Usually ships in 3-7 days

0

4

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

5

15057

BOLT, 3/8 X 1 CRG GR5 NC ZP

$

$

Not available

6

Bear Cat 15132

WASHER, 3/16 FLAT ZP

$

$

Not available

7

Bear Cat 15354

ROLL PIN, 5/32 X 3/4" PLAIN

$0.99

$

Usually ships in 3-7 days

0

8

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$0.99

$

Usually ships in 3-7 days

0

9

Bear Cat 15367

BOLT, 5/16 X 3/4 CRG GR5 NC ZP

$

$

Not available

10

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$0.99

$

Usually ships in 3-7 days

0

11

15397

NUT, 10/24 NYLOCK TYPE NM, ZP

$

$

Not available

12

Bear Cat 15409

WASHER, 5/16"ID 7/8"OD NYLON FLAT

$

$

Not available

13

15423

SCREW, 10-24 X 1/2 MCH PAN HD,PH ZP

$

$

Not available

14

15439

BOLT, SHOULDER 1.88" LONG CRG GR5 ZP

$

$

Not available

15

Bear Cat 18292-00

LANYARD, STEEL W/PVC 1/8" X 20"

$108.99

$

Usually ships in 3-7 days

0

16

Bear Cat 31391-00

DECAL, CHIP IT

$13.99

$

Usually ships in 3-7 days

0

17

36045-00

DECAL, MODEL CH611DH

$

$

Not available

18

Bear Cat 70046

IDLER SPACER

$

$

Not available

19

Bear Cat 72678-12

BRACKET, SCREEN HOLDER

$

$

Not available

20

Bear Cat 74904-00

PIN, HOOD HINGE PLATED

$50.99

$

Usually ships in 3-7 days

0

21

75069-35

WELDMENT, 6 INCH HOOD

$

$

Not available

22

Bear Cat 75102-12

GUARD, 6" CHIPPER ROCK

$

$

Not available

23

Bear Cat 75103-12

WELDMENT, HOOD HINGE

$

$

Not available
