CH 611 DH - Bear Cat 6" Chipper, 1.1 L Diesel Kubota (SN: 5VJAA0418GW005192 & Above) Access Cover Parts Diagram

6" Chipper, 1.1 L Diesel Kubota

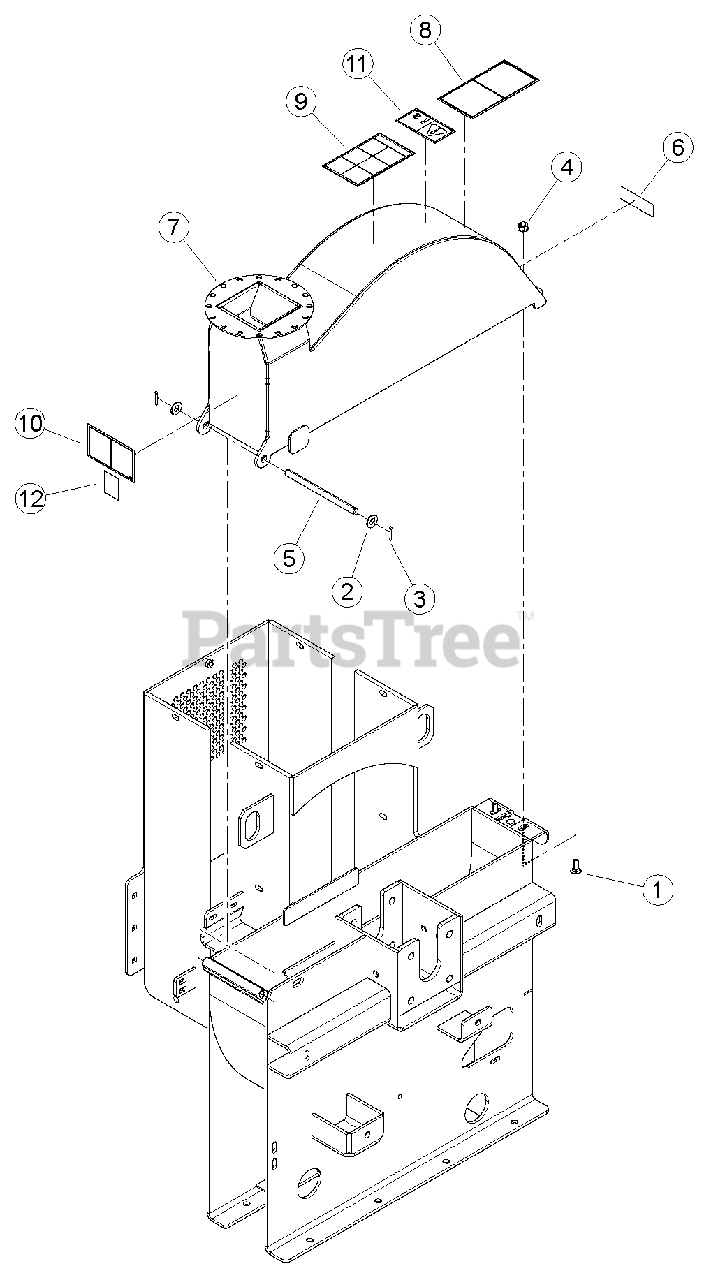

Access Cover Parts Diagram

  • Title
1

15057

BOLT, 3/8 X 1" GR5 CRG NC ZP

$

$

Not available

2

Bear Cat 15097

WASHER, 1/2"SAE FLAT ZP

$

$

Not available

3

Bear Cat 15375

PIN, 1/8 X 1.00 ZP COTTER

$

$

Not available

4

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

5

30980-00

SHAFT, CHIPPER TOP PIVOT

$

$

Not available

6

Bear Cat 31890-00

DECAL, ATLANTIC BRIDGE LTD INFO (CE COMPLIANT ONLY)

$9.99

$

Usually ships in 3-7 days

0

7

Bear Cat 71829-00

ASSEMBLY, CH611DH CHIPPER HOUSING TOP

Note: (INCLUDES ITEMS 8-12)

$986.99

$

Usually ships in 3-7 days

0

8

Bear Cat 12169

DECAL, KNIFE ACCESS ISO

$13.99

$

Usually ships in 3-7 days

0

9

Bear Cat 12172

DECAL, OPERATING INSTRUCTIONS ISO

$7.49

$

Usually ships in 3-7 days

0

10

Bear Cat 12173

DECAL, DISCHARGE ISO

$3.99

$

Usually ships in 3-7 days

0

11

Bear Cat 12250

DECAL, MAINTENANCE ISO

$3.99

$

In Stock, only 1 left!

0

12

Bear Cat 32392-00

DECAL, ECHO BEARCAT QR CODE

$2.99

$

Usually ships in 3-7 days

0
