CH 611 DH - Bear Cat 6" Chipper, 1.1 L Diesel Kubota (SN: 5VJAA0418GW005192 & Above) Feed Roller Parts Diagram

6" Chipper, 1.1 L Diesel Kubota

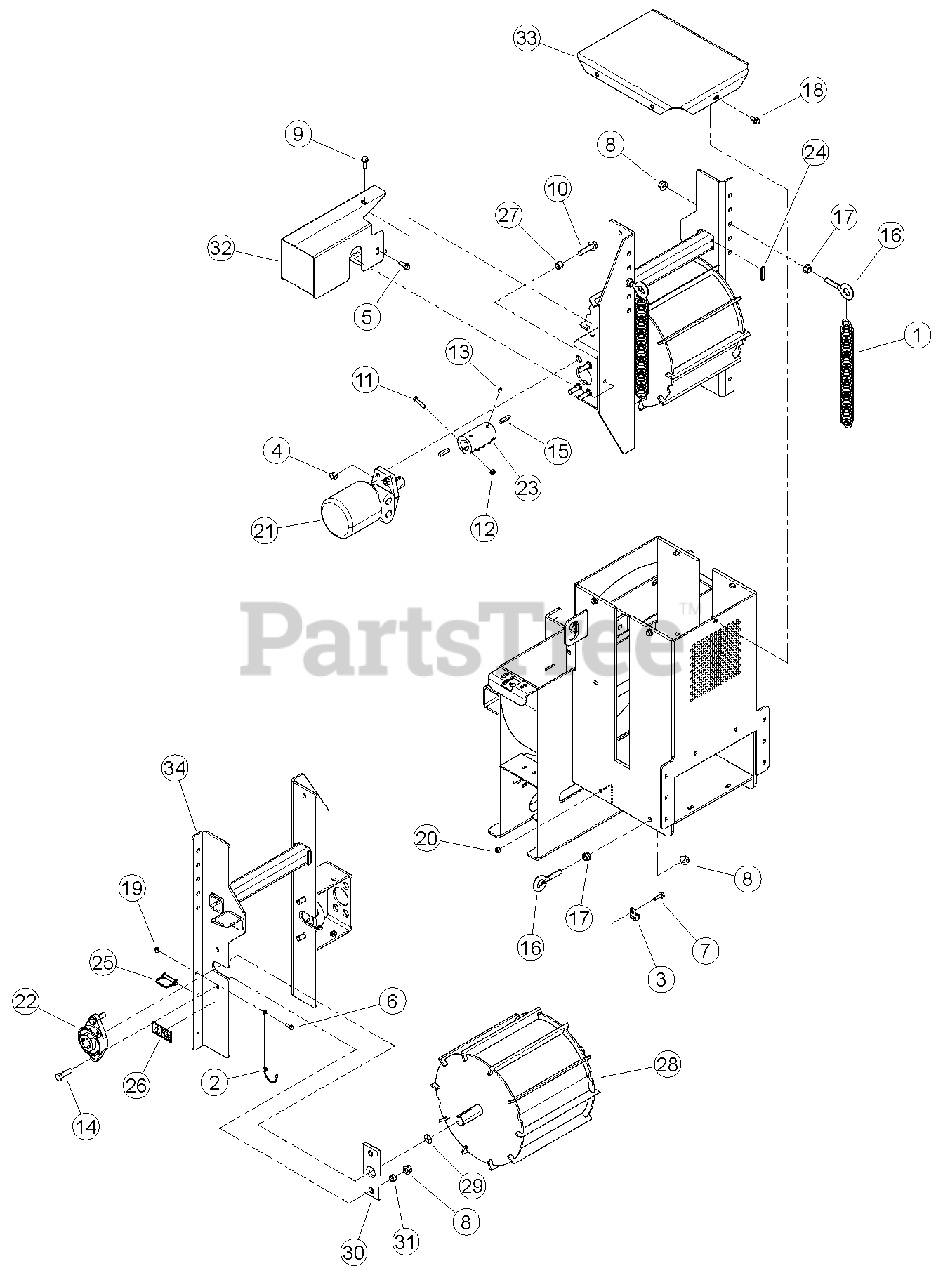

Feed Roller Parts Diagram

  • Title

1

Bear Cat 12504-12

SPRING, EXTENSION

$

$

Not available

2

12530

LANYARD, NYLON

$

$

Not available

3

14048-00

CLAMP, 9/16 COATED

$

$

Not available

4

Bear Cat 15049

NUT, 1/2" CENTERLOCK GRB ZP

$

$

Not available

5

15076

SCREW, 3/8-16 X 1 T23 THD CUTT HWH MAGNI 565 SILVER

$

$

Not available

6

15079-00

BOLT, 1/4-20 X 3/4 HWH GR5 CZP

$

$

Not available

7

Bear Cat 15120-00

BOLT, 5/16 X 1 FLANGE NC

$1.49

$

Usually ships in 3-7 days

0

8

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

9

15163-00

BOLT, 3/8 X 1 FLANGE NC

$

$

Not available

10

15200-00

BOLT, 1/2-13 X 2 HWH GR5 CZP

$

$

Not available

11

15282

BOLT, 5/16 X 1-1/2 GR5 HEX CPS ZP

$

$

Not available

12

Bear Cat 15356

NUT, 5/16" NE NYLOCK ZP

$

$

Not available

13

Bear Cat 15461

SET SCREW, 3/8 X 1/2 CUP PT SKT

$

$

Not available

14

15478

BOLT, 1/2 X 1 3/4 GR5 HCPS NC ZP

$

$

Not available

15

Bear Cat 15498

KEY, 5/16 X 1-1/2 SQUARE

$

$

Not available

16

Bear Cat 15502

EYEBOLT, 1/2 X 2" ZP

$31.99

$

Usually ships in 3-7 days

0

17

Bear Cat 15616

NUT, 1/2 SPIRAL LOCK NC ZP

$

$

Not available

18

15617

BOLT, 3/8 X 3/4" SERRATED FLANGE

$

$

Not available

19

Bear Cat 15900-00

NUT, 1/4-20 NYLOCK-FLANGE

$0.99

$

Usually ships in 3-7 days

0

20

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

21

Bear Cat 16586

MOTOR, 45 CU IN HYDRAULIC

$1444.99

$

Usually ships in 3-7 days

0

22

Bear Cat 16682

BEARING, 1-1/4" DIA 2 BOLT FLANGE

$

$

Not available

23

Bear Cat 16683

COUPLER, 1-1/4 SHAFT

$

$

Not available

24

17434

WEAR PAD, STD.SPRING HD FRONT

$

$

Not available

25

Bear Cat 17879

PIN, SNAP 3/8 X 1-1/2 USABLE LGH

$

$

Not available

26

Bear Cat 18983-00

DECAL, CRUSHING ISO

$5.49

$

Usually ships in 3-7 days

0

27

Bear Cat 70534

SPACER,0.75 X 0.620

$10.99

$

Usually ships in 3-7 days

0

28

Bear Cat 71839-00

ASSEMBLY, 6" FEED ROLLER SERVICE

Note: (INCLUDES ITEM 29)

$1193.99

$

Usually ships in 3-7 days

0

29

Bear Cat 18061-00

DECAL, ROTATING SHAFT

$11.99

$

Usually ships in 3-7 days

0

30

Bear Cat 73248

BEARING, SLIDE

$39.99

$

Usually ships in 3-7 days

0

31

Bear Cat 73249

SPACER, .75 OD X .5 ID X .37

$10.99

$

Usually ships in 3-7 days

0

32

Bear Cat 73978-12

WELDMENT, MOTOR COVER

$

$

Not available

33

Bear Cat 73981-35

WELDMENT, TOP ROLLER COVER

$

$

Not available

34

Bear Cat 75073-12

WELDMENT, ROLLER SLIDE

$

$

Not available
