CH 611 DH - Bear Cat 6" Chipper, 1.1 L Diesel Kubota (SN: 5VJAA0418GW005192 & Above) Frame (A) (Part 1) Parts Diagram

6" Chipper, 1.1 L Diesel Kubota

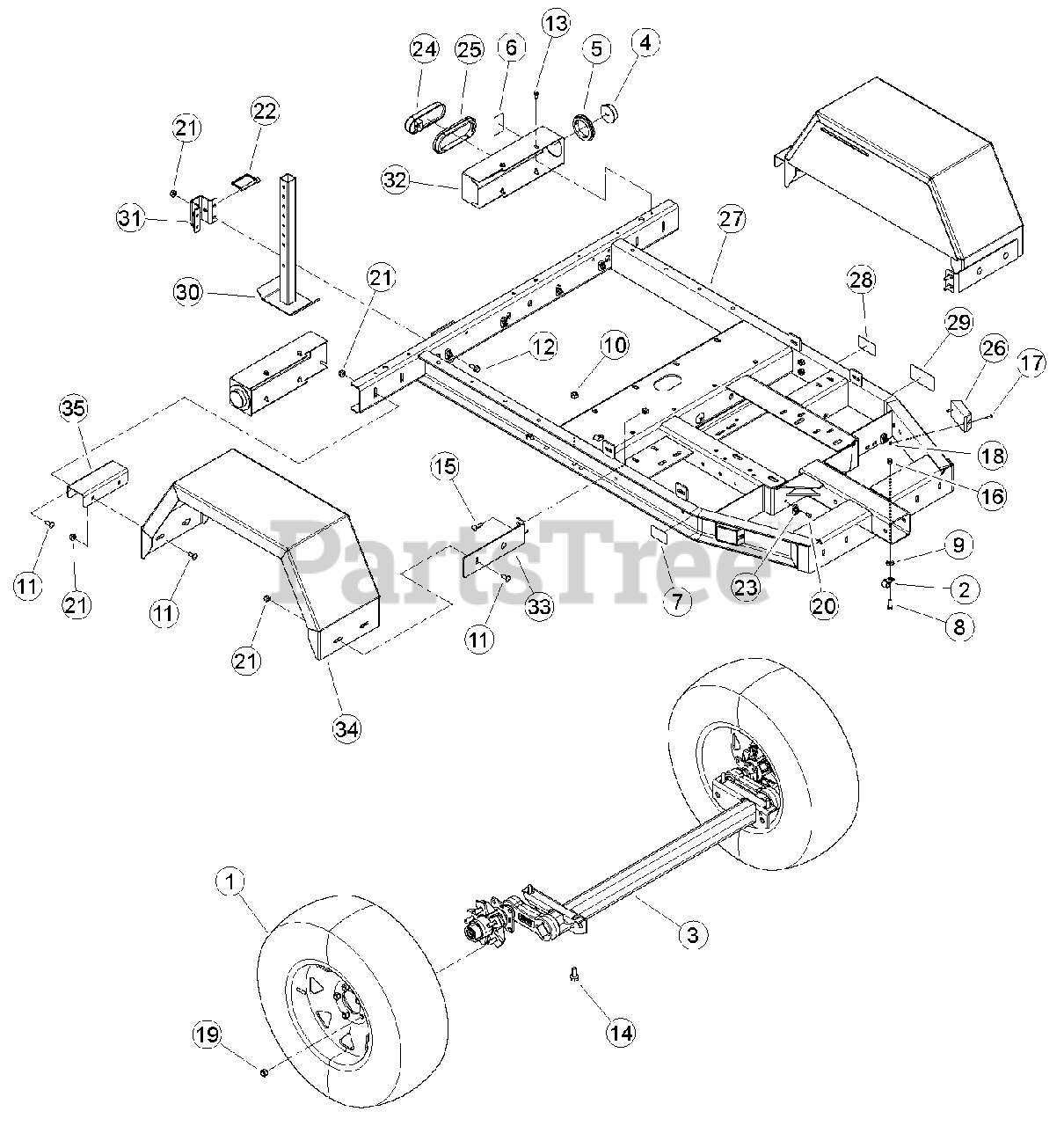

Frame (A) (Part 1) Parts Diagram

  • Title

1

Bear Cat 12125

ASSEMBLY, 15 INCH TIRE + WHEEL

$556.99

$

Usually ships in 3-7 days

0

2

14048-00

CLAMP, 9/16 COATED

$

$

Not available

3

Bear Cat 14256-00

AXLE, 2500 LB TORSION

$982.99

$

Usually ships in 3-7 days

0

4

Bear Cat 14361-00

LIGHT, RED CLEARANCE

$

$

Not available

5

Bear Cat 14366-00

GROMMET, CLEARANCE LIGHT

$

$

Not available

6

Bear Cat 14374-00

REFLECTOR, WIDE ANGLE RED

$5.99

$

Usually ships in 3-7 days

0

7

Bear Cat 14375-00

REFLECTOR, WIDE ANGLE AMBER

$5.49

$

Usually ships in 3-7 days

0

8

Bear Cat 15006

BOLT, 3/8 X 1 HEX HD GR5 ZP

$

$

Not available

9

Bear Cat 15031

WASHER, 3/8" FLAT ZP

$

$

Not available

10

Bear Cat 15049

NUT, 1/2" CENTERLOCK GRB ZP

$

$

Not available

11

15057

BOLT, 3/8 X 1" GR5 CRG NC ZP

$

$

Not available

12

15163-00

BOLT, 3/8 X 1 FLANGE NC

$

$

Not available

13

15176

SCREW, 11/32 X 7/8 HWH AB THREAD ZP

$

$

Not available

14

15232-00

BOLT, 1/2 -13 X 1-1/4 FLANGE NC

$

$

Not available

15

15378

BOLT, 3/8 X 1-1/4" GR5 CRG NC ZP

$

$

Not available

16

Bear Cat 15388

NUT, 3/8" NE NYLOCK ZP

$

$

Not available

17

15393

SCREW, MCH 10-24 X 1" RND HD PHL ZP

$

$

Not available

18

15397

NUT, 10/24 NYLOCK TYPE NM ZP

$

$

Not available

19

Bear Cat 15527

NUT, 1/2-20 WHEEL

$

$

Not available

20

Bear Cat 15828-00

RIVET, AL BLIND 1/4 X 3/4 DOME HEAD

$2.99

$

Usually ships in 3-7 days

0

21

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

22

16808

PIN, 3/8 X 2-3/4" SNAP

$

$

Not available

23

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$7.99

$

Usually ships in 3-7 days

0

24

Bear Cat 31736-00

TAIL LIGHT, OVAL LED

$51.99

$

Usually ships in 3-7 days

0

25

31737-00

GROMMET, OVAL TAIL LIGHT

$

$

Not available

26

Bear Cat 32347-00

LIGHT, AMBER MARKER
(Superseded to 74911-00)

$55.99

$

Usually ships in 3-7 days

0

27

Bear Cat 71626-00

ASSEMBLY, CH611DH TRAILER/DECALS

Note: (INCLUDES ITEMS 28 & 29)

$10366.99

$

Usually ships in 3-7 days

0

28

30321-00

DECAL, P215/70R15 100 LB LOAD RATING

$

$

Not available

29

32992-00

DECAL, EPA EMISSION

$

$

Not available

30

Bear Cat 73449-12

WELDMENT, REAR STABILIZER

$

$

Not available

31

Bear Cat 73450-12

GUIDE, TRAILER SUPPORT

$

$

Not available

32

Bear Cat 74019-12

BRACKET, TAILLIGHT

$

$

Not available

33

Bear Cat 74024-12

BRACKET, FENDER

$

$

Not available

34

Bear Cat 74144-12

WELDMENT, CHIPPER FENDER

$

$

Not available

35

Bear Cat 75147-12

PLATE, FENDER SPACER

$

$

Not available

17320

STRAP, 11 IN BLACK TIE

Note: (NOT SHOWN)

$

$

Not available

32349-00

HARNESS, CHIPPER TRAILER

Note: (NOT SHOWN)

$

$

Not available

77504-00

KIT, SPANISH/PORTUGESE TRAILER/COUPLER DECAL

Note: (NOT SHOWN)

$

$

Not available
