CH 6627 H - Bear Cat 6" Chipper, 627cc Briggs & Stratton (SN: 5VJAA0414HW005579 & Above) Feed Roller Parts Diagram

6" Chipper, 627cc Briggs & Stratton

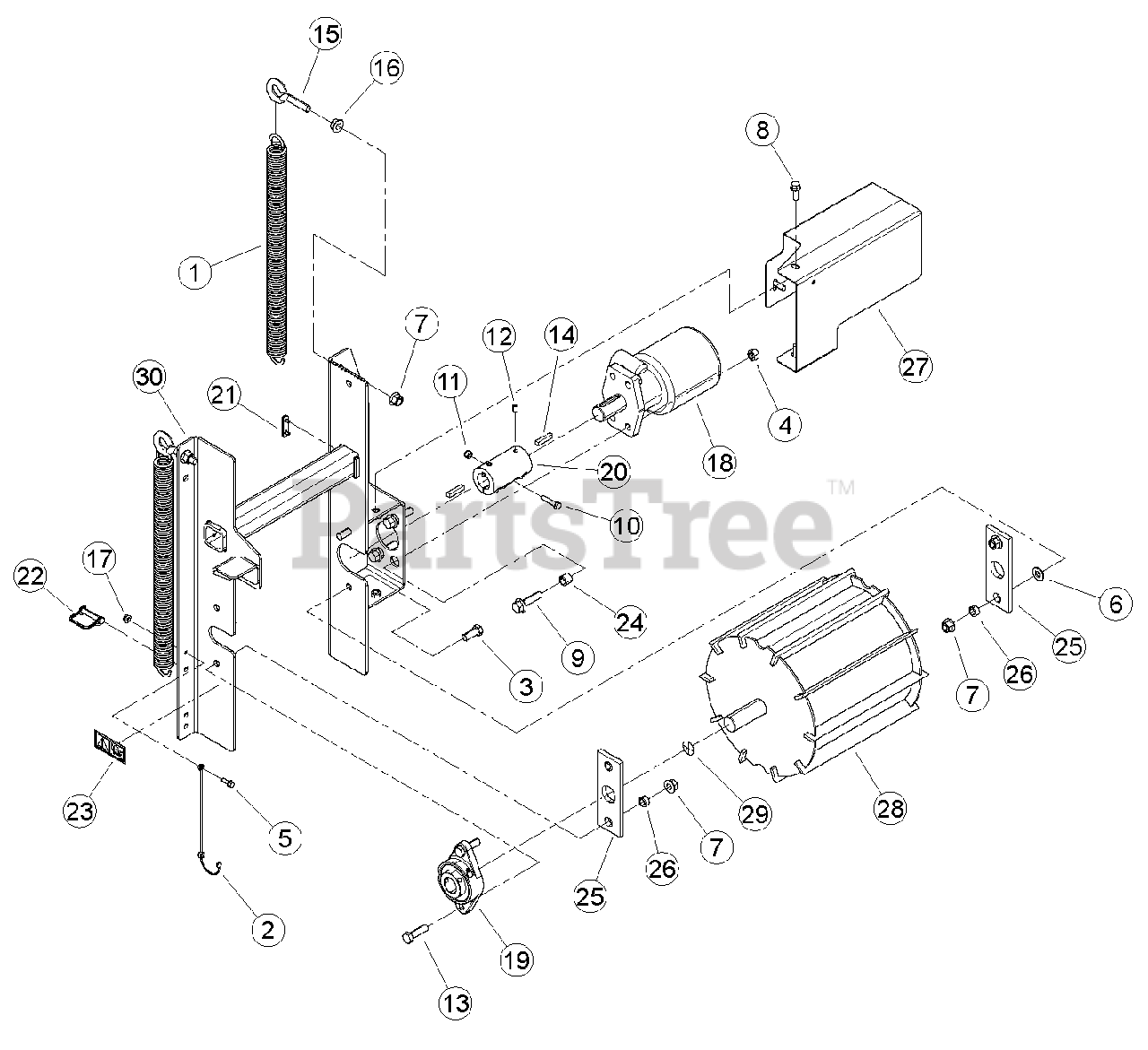

Feed Roller Parts Diagram

  • Title

1

Bear Cat 12504-12

SPRING, EXTENSION

$

$

Not available

2

12530

LANYARD, NYLON

$

$

Not available

3

15013

BOLT, 1/2 X 1-1/4" GR5 HHCS NC ZP

$

$

Not available

4

Bear Cat 15049

NUT, 1/2-13 GR5 CENTERLOCK GRB

$

$

Not available

5

15079-00

BOLT, 1/4-20 X 3/4 HWH GR5 CZP

$

$

Not available

6

Bear Cat 15097

WASHER, 1/2 SAE FLAT

$

$

Not available

7

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

8

15163-00

BOLT, 3/8 X 1 FLANGE NC

$

$

Not available

9

15200-00

BOLT, 1/2-13 X 2 HWH GR5 CZP

$

$

Not available

10

15282

BOLT, 5/16 X 1-1/2 GR5 HEX CPS ZP

$

$

Not available

11

Bear Cat 15356

NUT, 5/16-18 NE NYLOCK

$

$

Not available

12

Bear Cat 15461

SCREW, 3/8 X 1/2 CUP PT SKT SET

$

$

Not available

13

15478

BOLT, 1/2-13 X 1-3/4 GR5 HCPS

$

$

Not available

14

Bear Cat 15498

KEY, 5/16 X 1-1/2 SQUARE

$

$

Not available

15

Bear Cat 15502

EYEBOLT, 1/2-13 X 2

$31.99

$

Usually ships in 3-7 days

0

16

Bear Cat 15616

NUT, 1/2 SPIRAL LOCK NC ZP

$

$

Not available

17

Bear Cat 15900-00

NUT, 1/4-20 NYLOCK FLANGE

$0.99

$

Usually ships in 3-7 days

0

18

Bear Cat 16586

MOTOR, 45 CU IN HYDRAULIC

$1444.99

$

Usually ships in 3-7 days

0

19

Bear Cat 16682

BEARING, 1-1/4" DIA 2 BOLT FLANGE

$

$

Not available

20

Bear Cat 16683

COUPLER, 1-1/4 SHAFT

$

$

Not available

21

17434

WEAR PAD, STD. SPRING HD FRONT

$

$

Not available

22

Bear Cat 17879

PIN, 3/8 X 1-1/2 LYNCH

$

$

Not available

23

Bear Cat 18983-00

DECAL, CRUSHING ISO

$5.49

$

Usually ships in 3-7 days

0

24

Bear Cat 70534

SPACER, 0.75 X 0.620

$10.99

$

Usually ships in 3-7 days

0

25

Bear Cat 73248

BEARING, SLIDE

$39.99

$

Usually ships in 3-7 days

0

26

Bear Cat 73249

SPACER, .75 OD X .5 ID X .37

$10.99

$

Usually ships in 3-7 days

0

27

Bear Cat 76555-12

WELDMENT, MOTOR COVER

$

$

Not available

28

Bear Cat 77605-00

ASSEMBLY, 6" FEED ROLLER

Note: (INCLUDES ITEM 29)

$1035.99

$

Usually ships in 3-7 days

0

29

Bear Cat 18061-00

DECAL, ROTATING SHAFT

$11.99

$

Usually ships in 3-7 days

0

30

77817-12

WELDMENT, ROLLER SLIDE

$

$

Not available
