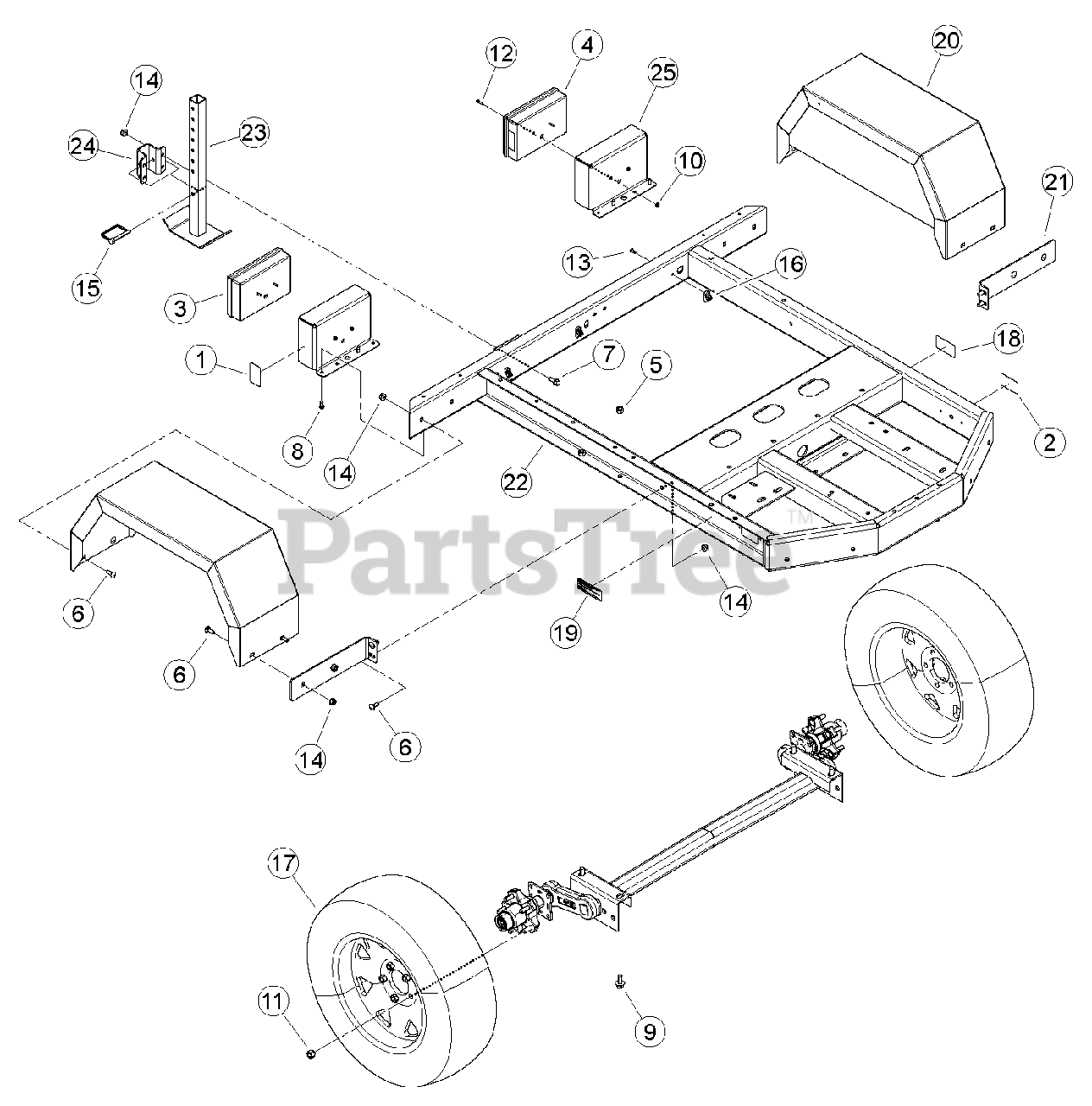

CH 6627 H - Bear Cat 6" Chipper, 627cc Briggs & Stratton (SN: 5VJAA0414HW005579 & Above) Frame (A) (CE Compliant) Parts Diagram

6" Chipper, 627cc Briggs & Stratton

Frame (A) (CE Compliant) Parts Diagram

  • Title
1

Bear Cat 14374-00

REFLECTOR, WIDE ANGLE RED

$5.99

$

Usually ships in 3-7 days

0

2

Bear Cat 14375-00

REFLECTOR, WIDE ANGLE AMBER

$5.49

$

Usually ships in 3-7 days

0

3

Bear Cat 14566-00

LIGHT, TAIL RH

$89.99

$

Usually ships in 3-7 days

0

4

Bear Cat 14580-00

LIGHT, TAIL LH

$89.99

$

Usually ships in 3-7 days

0

5

Bear Cat 15049

NUT, 1/2-13 GR5 CENTERLOCK GRB

$

$

Not available

6

15057

BOLT, 3/8-16 X 1 GR5 CRG

$

$

Not available

7

15163-00

BOLT, 3/8 X 1 FLANGE NC

$

$

Not available

8

15176

SCREW, 11/32-12 X 7/8 HWH T-AB

$

$

Not available

9

15231-00

BOLT, 1/2-13 1.00 GR5 FLANGE NC

$

$

Not available

10

15397

NUT, 10/24 NYLOCK TYPE NM ZP

$

$

Not available

11

Bear Cat 15527

NUT, 1/2-20 WHEEL

$

$

Not available

12

15557

BOLT, 10-24 X 3/4" HHCS GR8 PLAIN

$

$

Not available

13

Bear Cat 15828-00

RIVET, AL BLIND 1/4 X 3/4 DOME HEAD

$2.99

$

Usually ships in 3-7 days

0

14

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

15

16808

PIN, 3/8 X 2-1/2 LYNCH

$

$

Not available

16

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$7.99

$

Usually ships in 3-7 days

0

17

Bear Cat 31289-00

ASSEMBLY, TIRE AND WHEEL 14 IN

$595.99

$

Usually ships in 3-7 days

0

18

Bear Cat 32155-00

DECAL, P205/75R14 LOAD RATING

$62.99

$

Usually ships in 3-7 days

0

19

32519-00

DECAL, EPA EVAP

$

$

Not available

20

70743-12

WELDMENT, 6" CHIPPER FENDER

$

$

Not available

21

70744-12

BRACKET, 6" FENDER

$

$

Not available

22

70746-12

WELDMENT, 6" CHIPPER TRAILER

$

$

Not available

23

Bear Cat 73449-12

WELDMENT, REAR STABILIZER

$

$

Not available

24

Bear Cat 73450-12

GUIDE, TRAILER SUPPORT

$

$

Not available

25

Bear Cat 74321-12

BRACKET, TAIL LIGHT

$

$

Not available

Bear Cat 14587-00

HARNESS, TRAILER LIGHTING

Note: (NOT SHOWN)

$319.99

$

Usually ships in 3-7 days

0

17320

STRAP, 11 IN BLACK TIE

Note: (NOT SHOWN)

$

$

Not available
