CH 6720 H - Bear Cat 6" Chipper, 720cc Subaru (SN: 5VJAA0017EW004296 - 5VJAA0413GW005183) Hydraulic Layout Parts Diagram

6" Chipper, 720cc Subaru

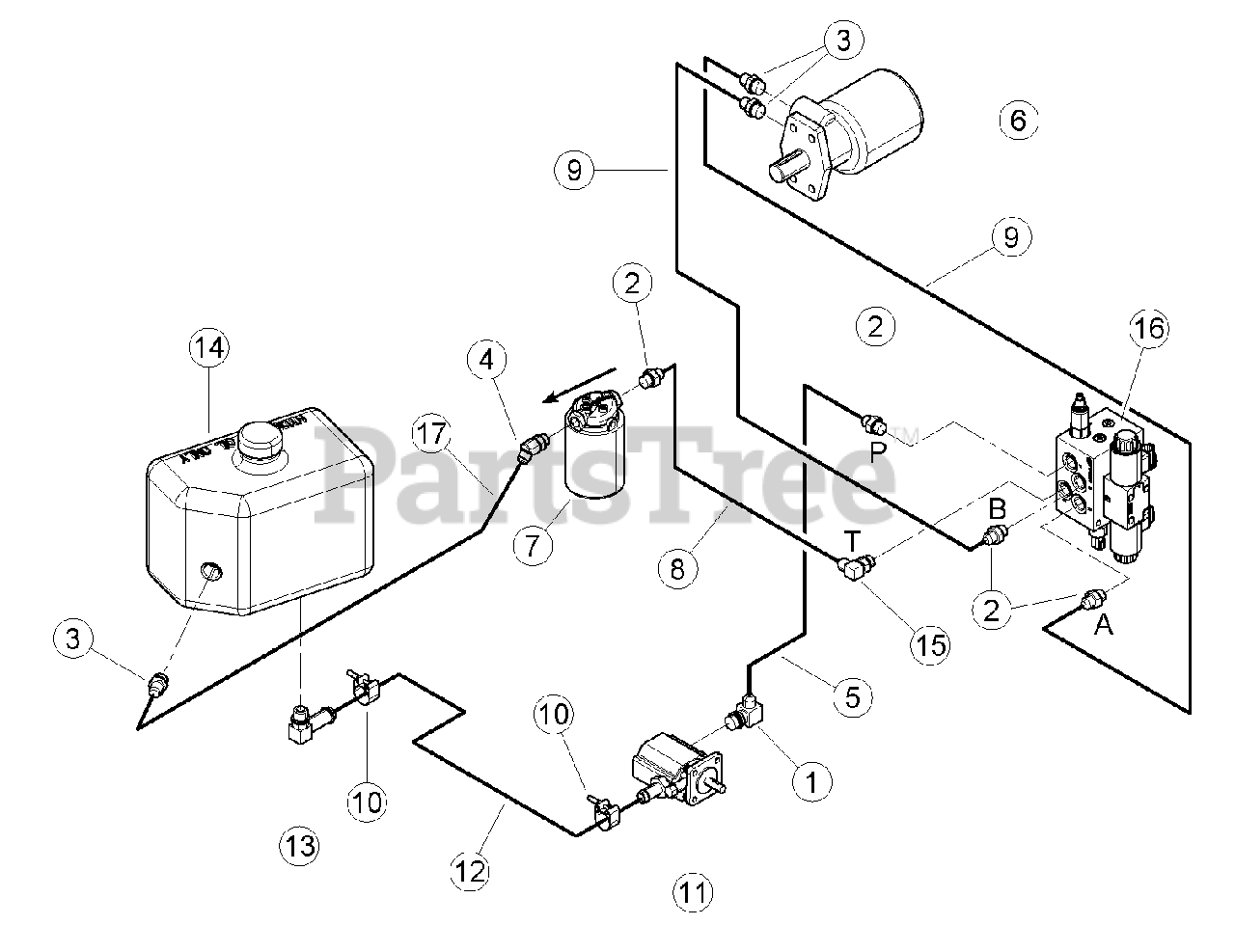

Hydraulic Layout Parts Diagram

  • Title

1

11810

ADAPTER, -10 MORING / -8 MJIC 90 DEG.

$

$

Not available

2

Bear Cat 12615

ADAPTER, -8 MORING / -8 MJIC

$

$

Not available

3

Bear Cat 12626

ADAPTER, -10 MORING / -8 MJIC

$

$

Not available

4

Bear Cat 14417-00

ADAPTER, -8 MORING / -8 MJIC 45 DEG.

$

$

Not available

5

Bear Cat 14631-00

HOSE ASSEMBLY, -8 FMJIC / -8 FMJICSW X 8-1/2

$69.99

$

Usually ships in 3-7 days

0

6

Bear Cat 16586

MOTOR, 45 CU. IN. HYDRAULIC

$1444.99

$

Usually ships in 3-7 days

0

7

Bear Cat 16588

FILTER, SPIN ON

Note: (ARROW ON TOP OF FILTER HEAD INDICATES DIRECTION OF FLOW)

$112.99

$

Usually ships in 3-7 days

0

8

Bear Cat 18533-00

HOSE ASSEMBLY, -8 FMJIC / -8 FMJIC 90 X 21 INCH

$57.99

$

Usually ships in 3-7 days

0

9

Bear Cat 18535-00

HOSE ASSEMBLY, -8 FMJIC / -8 FMJIC 90 X 61 INCH

$106.99

$

Usually ships in 3-7 days

0

10

Bear Cat 31425-00

CLAMP, 1 INCH OD. HOSE T-BOLT

$49.99

$

Usually ships in 3-7 days

0

11

Bear Cat 31671-00

PUMP, 2 STAGE CW HI/LO 0.605 DISP.

$639.99

$

Usually ships in 3-7 days

0

12

Bear Cat 31711-00

HOSE, .75 ID X 28 IN 100R4 HYD

$87.99

$

Usually ships in 3-7 days

0

13

Bear Cat 36017-00

ADAPTER, -10 MORING/.75 90 DEG. HOSE

$40.99

$

Usually ships in 3-7 days

0

14

Bear Cat 36322-00

TANK, OIL RESERVOIR

$356.99

$

Usually ships in 3-7 days

0

15

41287

ADAPTER, -8 MORING / -8 MJIC 90 DEG.

$

$

Not available

16

Bear Cat 71628-00

ASSEMBLY, HYDRAULIC FEED FLOW VALVE

$2142.99

$

Usually ships in 3-7 days

0

17

Bear Cat 76909-00

HOSE, 3/8 X 35 -8 FJICSW

$61.99

$

Usually ships in 3-7 days

0

Bear Cat 16922

ELEMENT, HYDRAULIC FILTER

Note: (NOT SHOWN)

$48.99

$

Usually ships in 3-7 days

0
