CH 6730 H - Bear Cat 6" Chipper, 730cc Kohler (SN: 5VJAA0000DW000001 & Above) Hydraulic Layout (VIN 5VJAA0015AW002671 AND BELOW) Parts Diagram

6" Chipper, 730cc Kohler

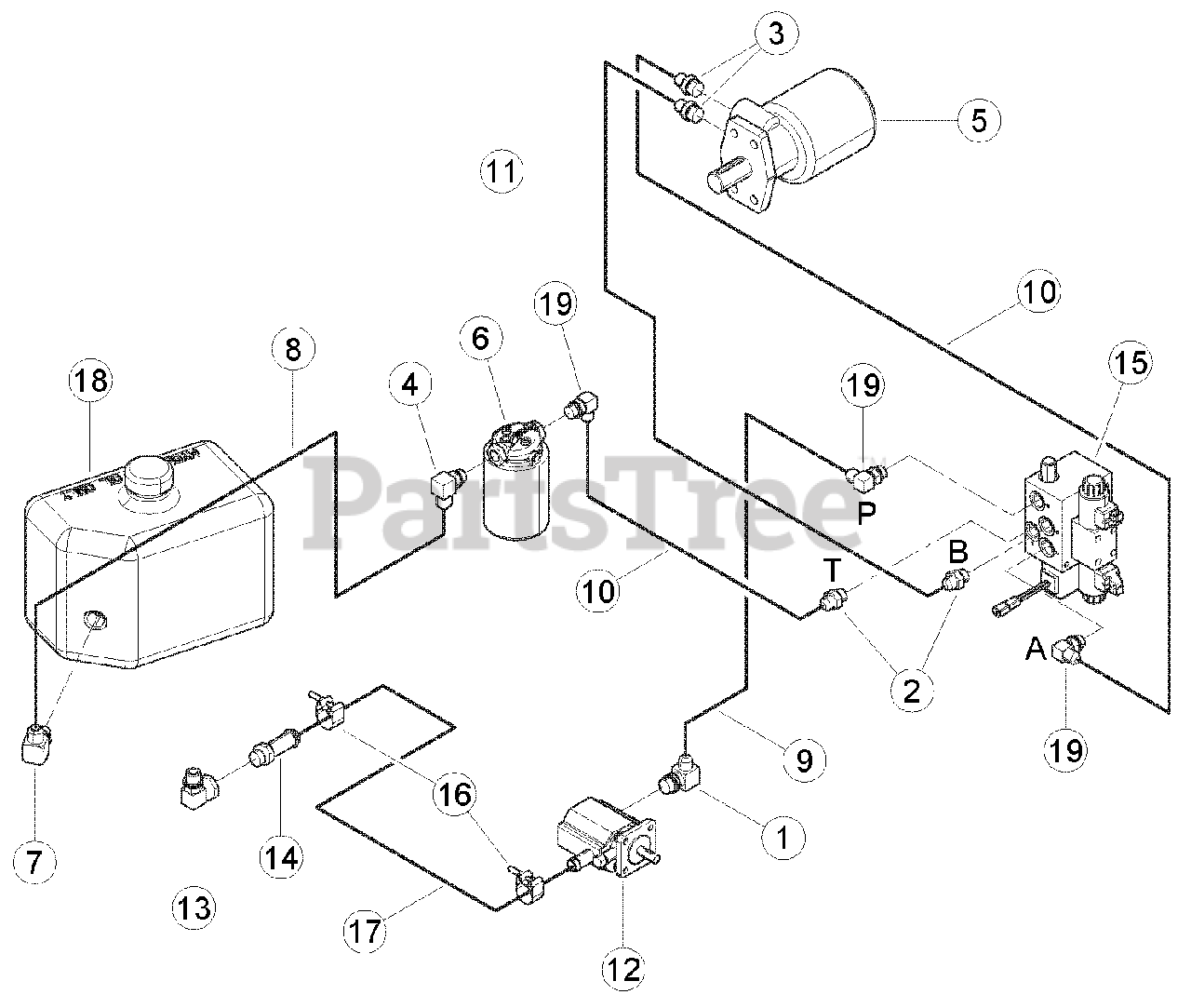

Hydraulic Layout (VIN 5VJAA0015AW002671 AND BELOW) Parts Diagram

  • Title

1

11810

ADAPTER, -10 MORING / -8 MJIC 90 DEG.

$

$

Not available

2

Bear Cat 12615

ADAPTER, -8 MORING / -8 MJIC

$

$

Not available

3

Bear Cat 12626

ADAPTER, -10 MORING / -8 MJIC

$

$

Not available

4

12917-00

ADAPTER, -8 MORING / -10 MJIC 90 DEG.

$

$

Not available

5

Bear Cat 16586

MOTOR, 45 CU. IN. HYDRAULIC

$1516.99

$

Usually ships in 3-7 days

0

6

Bear Cat 16588

FILTER, SPIN ON

$148.99

$

Usually ships in 3-7 days

0

Bear Cat 16922

ELEMENT, HYDRAULIC FILTER

Note: (NOT SHOWN)

$51.99

$

Usually ships in 3-7 days

0

7

16638

ADAPTER, -10 MORING / -10 MJIC 90 DEG.

$

$

Not available

8

Bear Cat 18025-00

HOSE, .50 X 38 -10 FMJIC / -10 FMJIC

$68.99

$

Usually ships in 3-7 days

0

9

Bear Cat 18533-00

HOSE ASSY', -8 FMJIC / -8 FMJIC 90 X 21 IN.

$57.99

$

Usually ships in 3-7 days

0

10

Bear Cat 18535-00

HOSE ASSY', -8 FMJIC / -8 FMJIC 90 X 61 IN.

$112.99

$

Usually ships in 3-7 days

0

11

Bear Cat 18536-00

HOSE ASSY', -8 FMJIC / -8 FMJIC X 61

$

$

Not available

12

PUMP, CW HI/LO .605 DISP. (WAS 31323-00; REPLACED AND SUPERSEDED. FOR SERVICE ORDER PN 31671-00, PUMP)

$

$

Not available

12

Bear Cat 31671-00

PUMP, 2 STAGE CW HI/LO 0.605 DISP. (FOR SERVICE ORDER PN 75927-00, KIT, PUMP PB HIGH/LOW)

$670.99

$

Usually ships in 3-7 days

0

13

Bear Cat 31367-00

ADAPTER, -10 ORING X 3/4 PIPE 90 DEG (FOR SERVICE ORDER. PN 36017-00, ADAPTER, -10 MORING/.75 90 DEG. HOSE)

$

$

Not available

14

Bear Cat 31368-00

ADAPTER, 1 IN. HOSE BEAD X 3/4 PIPE (FOR SERVICE ORDER PN 36017-00, ADAPTER, -10 MORING/.75 90 DEG. HOSE)

$

$

Not available

15

ASSEMBLY, SA-1987 VALVE WITH ADJUSTABLE SPEED KNOB (WAS 18527-00. REPLACED AND SUPERSEDED. FOR SERVICE ORDER PN 31376-00, ASSEMBLY, CHIPPER FLOW VALVE, 2-STAGE)

$

$

Not available

15

Bear Cat 31376-00

ASSEMBLY, CHIPPER FLOW VALVE, 2-STAGE
(Superseded to 71628-00)

$2249.99

$

Usually ships in 3-7 days

0

16

Bear Cat 31425-00

CLAMP, 1" OD. HOSE T-BOLT

$52.99

$

Usually ships in 3-7 days

0

17

Bear Cat 36101-00

HOSE, 1 ID. X 22 IN. 100R4 HYD.

$172.99

$

Usually ships in 3-7 days

0

18

Bear Cat 36322-00

TANK, OIL RESERVOIR

$374.99

$

Usually ships in 3-7 days

0

19

41287

ADAPTER, -8 MORING / -8 MJIC 90 DEG.

$

$

Not available
