CH 6730 H - Bear Cat 6" Chipper, 730cc Kohler (SN: 5VJAA0017AW002512 - 5VJAA0019CW003730) Chute (CE COMPLIANT) (Part 2) Parts Diagram

6" Chipper, 730cc Kohler

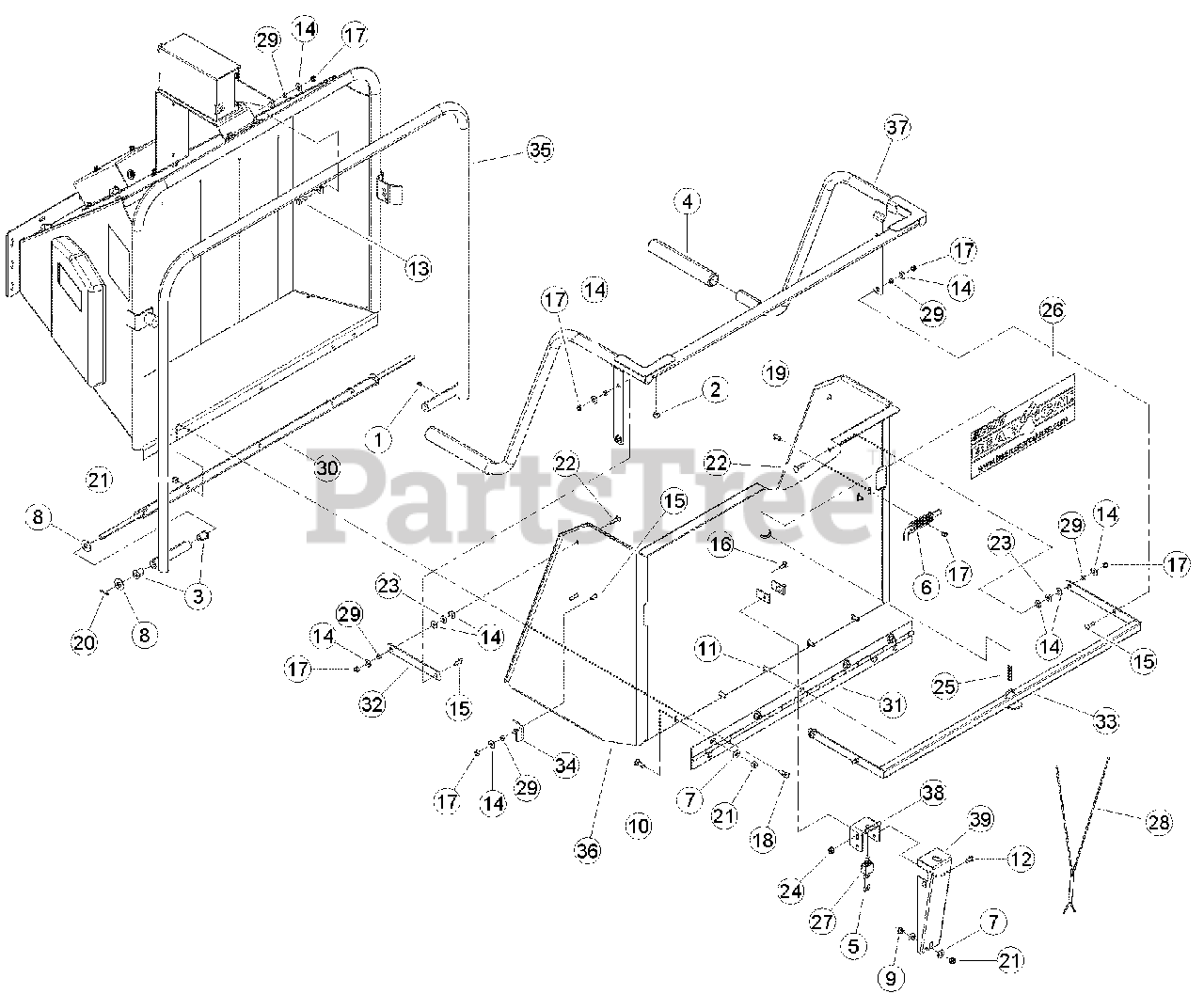

Chute (CE COMPLIANT) (Part 2) Parts Diagram

  • Title

1

Bear Cat 12275

FITTING, 1/4 SELF-TAP GREASE

$

$

Not available

2

Bear Cat 13904-00

BUMPER, RUBBER

$2.49

$

Usually ships in 3-7 days

0

3

Bear Cat 14236-00

BUSHING, 1/2 X 1 FLANGE LUBE

$9.49

$

Usually ships in 3-7 days

0

4

Bear Cat 14520-00

GRIP, 1.219 X 10.00

$23.99

$

Usually ships in 3-7 days

0

5

Bear Cat 14625-00

CONNECTOR, 1/4 QD MALE

$2.99

$

Usually ships in 3-7 days

0

6

Bear Cat 14971-00

LATCH, RH HINGE

$

$

Not available

7

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

8

Bear Cat 15034

WASHER, 1/2 FLAT ZP

$

$

Not available

9

Bear Cat 15051

NUT, 3/8 SERR FLANGE NC ZP

$

$

Not available

10

15057

BOLT, 3/8 X 1 CRG GR5 NC ZP

$

$

Not available

11

15058

BOLT, 3/8 X 1-1/2 CRG GR5 NC ZP

$

$

Not available

12

15176

SCREW, 11/32 X 7/8 HWH AB THREAD ZP

$

$

Not available

13

Bear Cat 15219

BOLT, 5/16 X 1 HEX HD GR5 NC ZP

$

$

Not available

14

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

15

Bear Cat 15301

BOLT, 5/16 X 1 CRG GR5 ZP

$

$

Not available

16

Bear Cat 15349

BOLT, 5/16 X 7/8 CRG GR5 NC ZP

$

$

Not available

17

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

18

15364

BOLT, 3/8 X 1-1/4 HEX HD GR5 ZP

$

$

Not available

19

Bear Cat 15367

BOLT, 5/16 X 3/4 CRG GR5 NC ZP

$

$

Not available

20

Bear Cat 15375

PIN, 1/8 X 1.00 COTTER ZP

$

$

Not available

21

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

22

Bear Cat 15398

BOLT, 5/16 X 1-1/4 CRG GR5 ZP

$

$

Not available

23

Bear Cat 15409

WASHER, 5/16 ID X 7/8 OD NYLON FLAT

$

$

Not available

24

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

25

Bear Cat 16698

SPRING, 1/2 X 2.00 LONG ZP

$21.99

$

Usually ships in 3-7 days

0

26

Bear Cat 31484-00

DECAL, BEARCAT WEB

$26.99

$

Usually ships in 3-7 days

0

27

Bear Cat 32375-00

SWITCH, MOMENTARY IP67 NORMALLY ON
(Superseded to 32693-00)

$172.99

$

Usually ships in 3-7 days

0

28

Bear Cat 36355-00

HARNESS, SAFETY BAR

$85.99

$

Usually ships in 3-7 days

0

29

Bear Cat 69126

SPACER, IDLER PIVOT

$4.49

$

Usually ships in 3-7 days

0

30

Bear Cat 73990-12

WELDMENT, CONTROL PIVOT

$188.99

$

Usually ships in 3-7 days

0

31

Bear Cat 74033-12

HINGE, EXTENSION TRAY

$

$

Not available

32

Bear Cat 74157-12

LINK, PARALLEL

$

$

Not available

33

Bear Cat 74202-12

WELDMENT, KNEEBAR PIVOT

$

$

Not available

34

Bear Cat 74222-12

LOCK, SAFETY BAR

$54.99

$

Usually ships in 3-7 days

0

35

Bear Cat 76594-12

WELDMENT, CONTROL ARM

$303.99

$

Usually ships in 3-7 days

0

36

Bear Cat 76605-12

WELDMENT, EXTENSION TRAY W/ TABS

$740.99

$

Usually ships in 3-7 days

0

37

Bear Cat 76611-35

WELDMENT, KNEEBAR

$363.99

$

Usually ships in 3-7 days

0

38

Bear Cat 77532-12

BRACKET, SWITCH

$56.99

$

Usually ships in 3-7 days

0

39

77535-12

SHIELD, SAFETYBAR SWITCH

$

$

Not available
