CH 6730 H - Bear Cat 6" Chipper, 730cc Kohler (SN: 5VJAA0017AW002512 - 5VJAA0019CW003730) Frame (Part 2) Parts Diagram

6" Chipper, 730cc Kohler

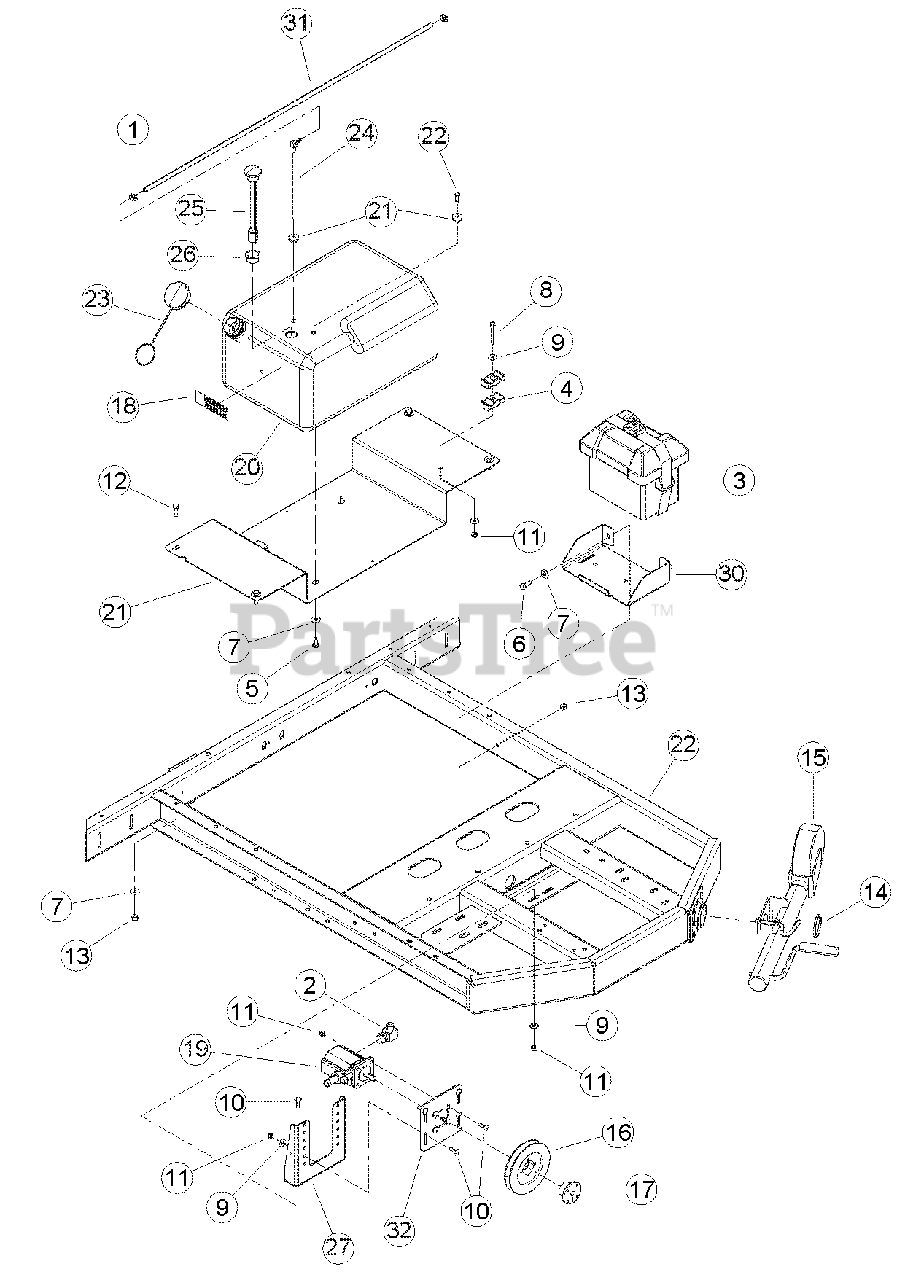

Frame (Part 2) Parts Diagram

  • Title
1

0123-0429-00

CLAMP, HOSE 5/16 X 5/8 DIA. MAX

$

$

Not available

2

11810

ADAPTER, -10 MORING / -8 MJIC 90 DEG.

$

$

Not available

3

Bear Cat 15005

BOLT, 3/8 X 3/4 HEX HD GR5 ZP

$

$

Not available

4

Bear Cat 15006

BOLT, 3/8 X 1 HEX HD GR5 ZP

$

$

Not available

5

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

6

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

7

Bear Cat 15301

BOLT, 5/16 X 1 CRG GR5 ZP

$

$

Not available

8

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

9

15378

BOLT, 3/8 X 1-1/4 CRG GR5 NC ZP

$

$

Not available

10

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

11

Bear Cat 16616

JACK, PIVOTING W/SWIVEL CASTOR

$201.99

$

In Stock, only 1 left!

0

12

Bear Cat 18704-00

SHEAVE, QT 1B5.6

$

$

Not available

13

Bear Cat 18705-00

BUSHING, QT 1/2

$

$

Not available

14

Bear Cat 31323-00

PUMP, CW HI/LO .605 DISP.
(Superseded to 75927-00)

$993.99

$

Usually ships in 3-7 days

0

15

Bear Cat 36522-00

TANK, 9.5 FAL ROTOMOLDED FUEL

$

$

Not available

16

Bear Cat 36689-00

GROMMET, TANK FITTING

$2.99

$

Usually ships in 3-7 days

0

17

Bear Cat 36690-00

PLUG, TANK VENT

$9.99

$

Usually ships in 3-7 days

0

18

Bear Cat 36693-00

CAP, FUEL TANK VENTED

$33.99

$

Usually ships in 3-7 days

0

19

Bear Cat 36694-00

FITTING, TANK FUEL PICK-UP TUBE

$25.99

$

Usually ships in 3-7 days

0

20

Bear Cat 36695-00

GUAGE, FUEL TANK KELCH 100

$57.99

$

Usually ships in 3-7 days

0

21

Bear Cat 36696-00

GROMMET, KELCH 100 GUAGE

$7.99

$

Usually ships in 3-7 days

0

22

Bear Cat 75134-12

MOUNT, PUMP

$46.99

$

Usually ships in 3-7 days

0

23

Bear Cat 75380-00

HOSE, 63 IN. FUEL LINE

$77.99

$

Usually ships in 3-7 days

0

24

Bear Cat 76365-12

BASE, 9.5 GAL NYLON TANK

$

$

Not available

25

Bear Cat 76538-12

MOUNT, PUMP

$51.99

$

Usually ships in 3-7 days

0

26

Bear Cat 76545-12

WELDMENT, CHIPPER TRAILER

$1386.99

$

Usually ships in 3-7 days

0

27

Bear Cat 76612-12

BRACKET, BATTERY HOLDER

$

$

Not available
