CH 800 H - Bear Cat 8" Chipper, Skid Steer (SN: D00001 & Above) Access Cover Parts Diagram

8" Chipper, Skid Steer

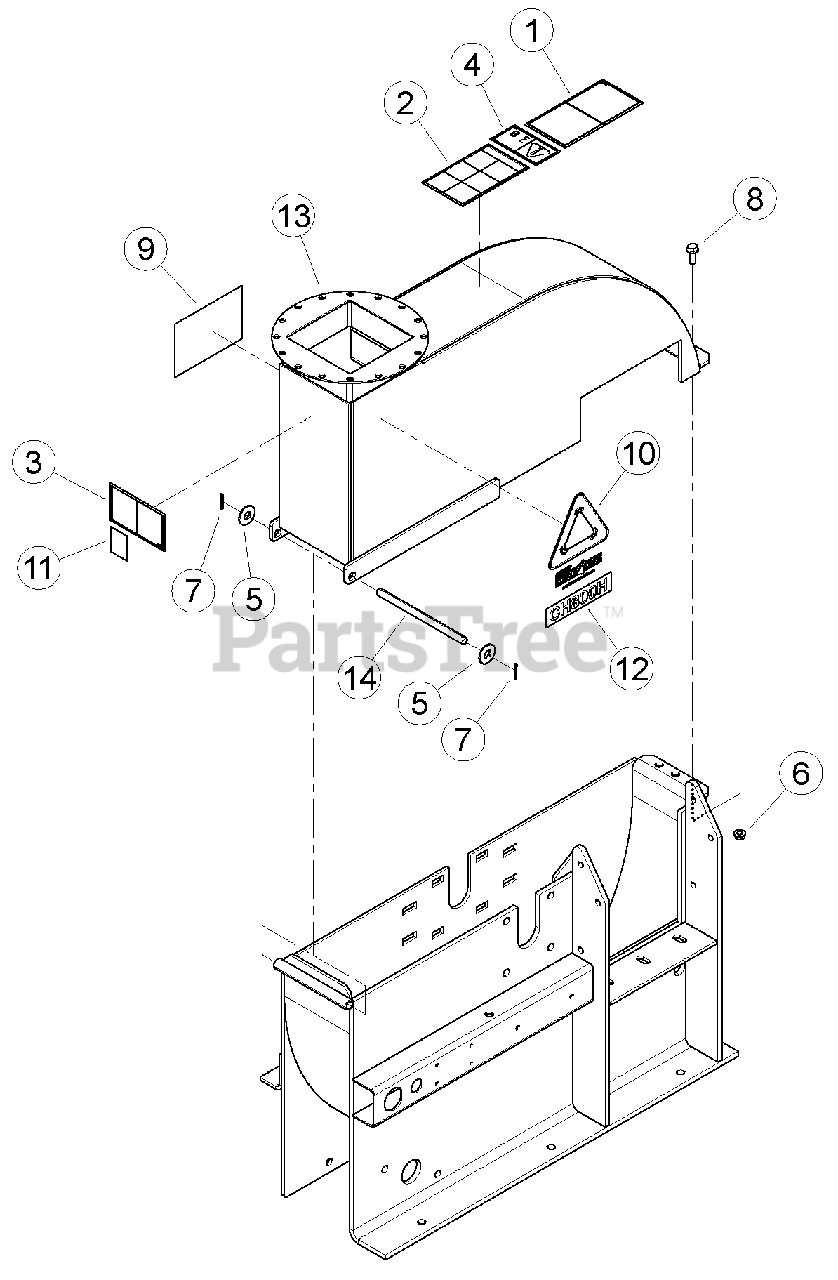

Access Cover Parts Diagram

  • Title

1

Bear Cat 12169

DECAL, KNIFE ACCESS ISO

$29.99

$

Usually ships in 3-7 days

0

2

Bear Cat 12172

DECAL, OPERATING INSTRUCTIONS ISO

$7.99

$

Usually ships in 3-7 days

0

3

Bear Cat 12173

DECAL, DISCHARGE ISO

$3.99

$

Usually ships in 3-7 days

0

4

Bear Cat 12250

DECAL, MAINTENANCE ISO

$3.99

$

Usually ships in 3-7 days

0

5

Bear Cat 15034

WASHER, 1/2 FLAT

$0.99

$

Usually ships in 3-7 days

0

6

Bear Cat 15051

NUT, 3/8-16 SERRATED FLANGE

$

$

Not available

7

Bear Cat 15375

PIN, 1/8 X 1.00 ZP COTTER

$

$

Not available

8

15382

BOLT, 3/8-16 X 1 SERRATED FLANGE GR5

$

$

Not available

9

Bear Cat 18287-00

DECAL, FLOW RATE HYDRAULIC

$36.99

$

Usually ships in 3-7 days

0

10

Bear Cat 31391-00

DECAL, CHIP IT

$13.99

$

Usually ships in 3-7 days

0

11

Bear Cat 32392-00

DECAL, ECHO BEARCAT QR CODE

$3.49

$

Usually ships in 3-7 days

0

12

Bear Cat 36049-00

DECAL, MODEL CH800H

$22.99

$

Usually ships in 3-7 days

0

13

Bear Cat 71150-35

WELDMENT, TOP CHIPPER HOUSING

$

$

Not available

14

Bear Cat 71329

SHAFT, CHIPPER TOP PIVOT

$50.99

$

Usually ships in 3-7 days

0
