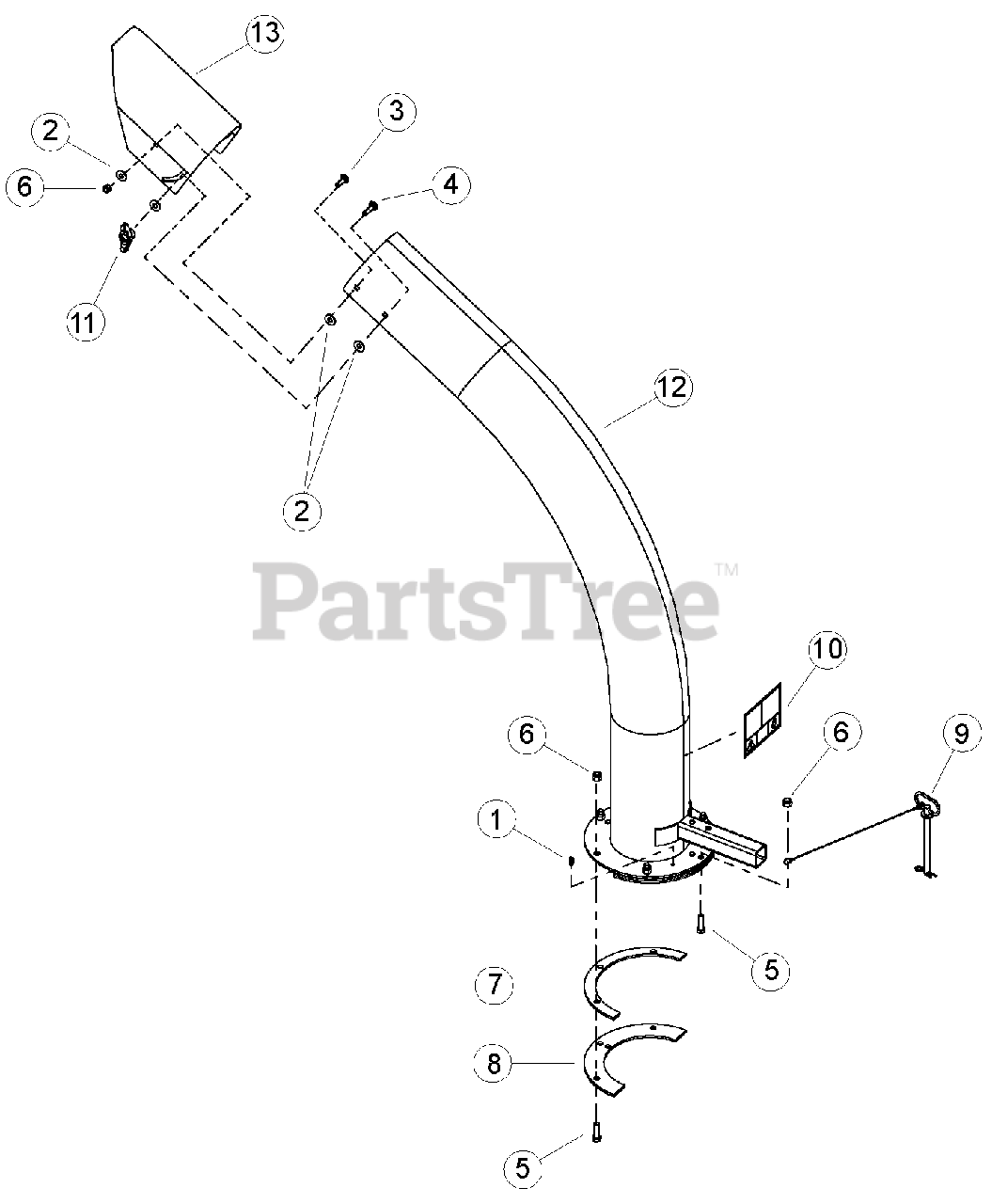

CH 800 H - Bear Cat 8" Chipper, Skid Steer (SN: D00001 & Above) Discharge (SN: F03643 - CURRENT) Parts Diagram

8" Chipper, Skid Steer

Discharge (SN: F03643 - CURRENT) Parts Diagram

  • Title

1

Bear Cat 12275

FITTING, 1/4 SELF-TAP GREASE

$

$

Not available

2

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

3

15057

BOLT, 3/8 X 1 CRG GR5 NC ZP

$

$

Not available

4

15058

BOLT, 3/8 X 1-1/2 CRG GR5 NC ZP

$

$

Not available

5

15364

BOLT, 3/8 X 1-1/4 HEX HD GR5 ZP

$

$

Not available

6

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

7

Bear Cat 71247

RING, DISCHARGE SPACER

$

$

Not available

8

Bear Cat 71248

RING, DISCHARGE CLAMP

$

$

Not available

9

Bear Cat 30131-00

PIN, 3/8" X 4.25" DISCHARGE

$

$

Not available

10

Bear Cat 32109-00

DECAL, DISCHARGE DEBRIS & LOCK

$18.99

$

Usually ships in 3-7 days

0

11

Bear Cat 32110-00

KNOB, 3/8-16 UNC FEMALE TEE

$

$

Not available

12

Bear Cat 70168-00

ASSEMBLY, 8 INCH DISCHARGE SERVICE PART (CH800H)

$792.99

$

Usually ships in 3-7 days

0

13

Bear Cat 71704-12

CAP, 8 IN. DISCHARGE CHUTE

$

$

Not available
