CH 8540 - Bear Cat 8" Chipper, 540cc PTO Gravity Feed (SN: B00001 - C09929) Drive Assembly (SN B01580 AND BELOW) Parts Diagram

8" Chipper, 540cc PTO Gravity Feed

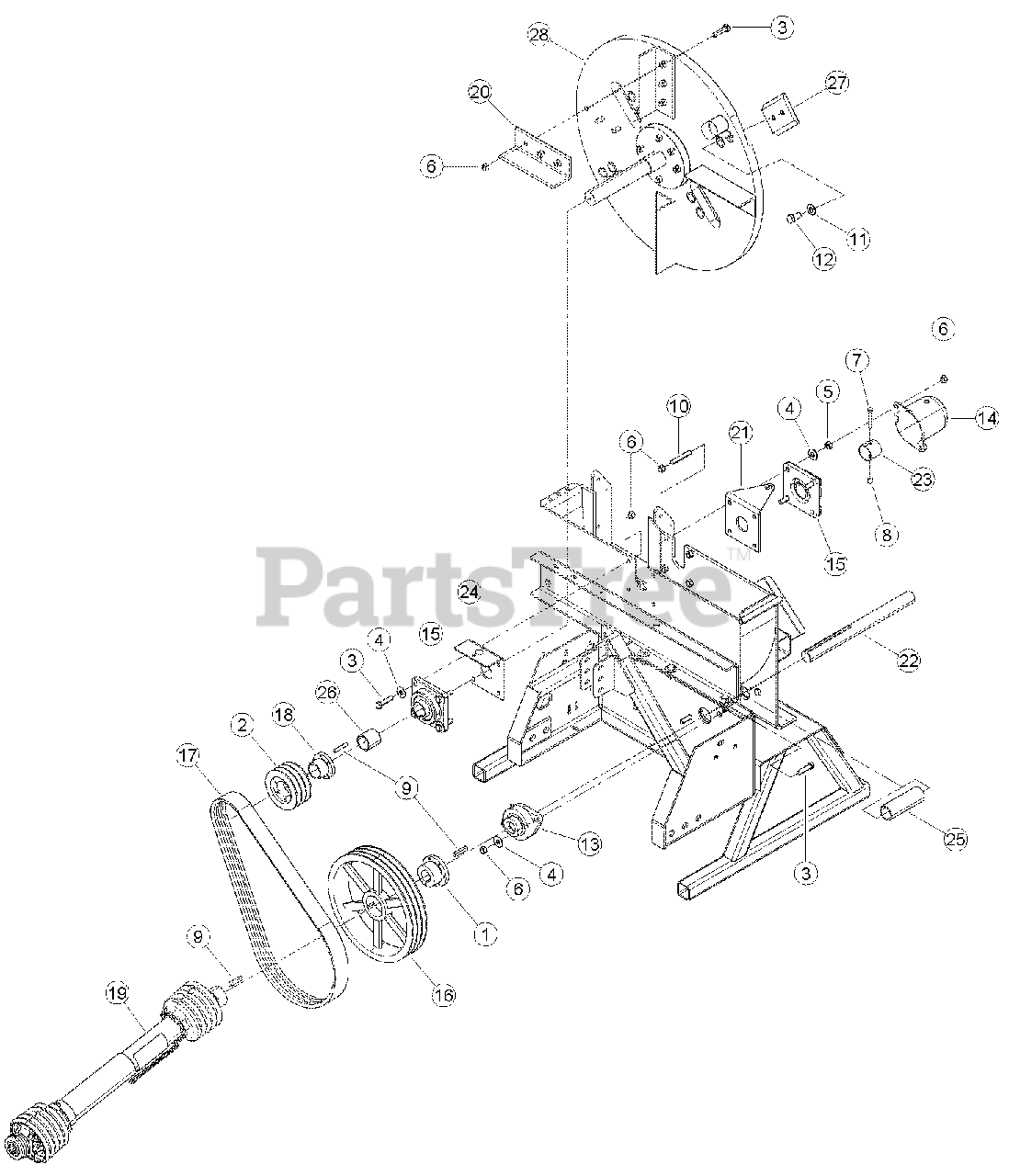

Drive Assembly (SN B01580 AND BELOW) Parts Diagram

  • Title

1

Bear Cat 12441

BUSHING, SK 1-1/2"

$

$

Not available

2

Bear Cat 12449

SHEAVE 3B4.8 SD

$133.99

$

Usually ships in 3-7 days

0

3

Bear Cat 15015

BOLT, 1/2 X 2 HEX HD GR5 ZP

$1.49

$

Usually ships in 3-7 days

0

4

Bear Cat 15034

WASHER, 1/2 FLAT ZP

$0.99

$

Usually ships in 3-7 days

0

5

Bear Cat 15043

NUT, 1/2 HEX NC ZP

$0.99

$

Usually ships in 3-7 days

0

6

Bear Cat 15049

NUT, 1/2 CENTERLOCK GRB ZP

$0.99

$

Usually ships in 3-7 days

0

7

Bear Cat 15116

BOLT, 3/8 X 2-1/2 HEX HD GR5 ZP

$

$

Not available

8

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$0.99

$

Usually ships in 3-7 days

0

9

Bear Cat 15440

KEY, 3/8 SQUARE X 2 LONG PLAIN

$5.49

$

In Stock, only 2 left!

0

10

Bear Cat 15481

STUD, 1/2-13 X 3 LONG B7 ZP

$18.99

$

Usually ships in 3-7 days

0

11

Bear Cat 15770-00

WASHER, 5/8 SAE HARDENED

$2.99

$

Usually ships in 3-7 days

0

12

Bear Cat 15833-00

BOLT, M16 X 2.0 X 30 HEX HD W/PATCH

$12.99

$

Usually ships in 3-7 days

0

13

Bear Cat 16004

BEARING, 2 BOLT FLANGE 1-1/2" BORE

$87.99

$

Usually ships in 3-7 days

0

14

Bear Cat 16460

CAP, LARGE SHAFT

$

$

Not available

15

Bear Cat 16553

BEARING, 4 BOLT FLANGE 1-3/4" BORE

$

$

Not available

16

Bear Cat 16581

SHEAVE, 3B13.6 SK

$

$

Not available

17

WAS PN 16582, BELT, BANDED CHIPPER (REPLACED AND SUPERSEDED. FOR SERVICE ORDER PN 32252-00 BELT, 3RB64.

$

$

Not available

17

Bear Cat 32252-00

BELT, 3RB64
(Superseded to 34400-00)

$213.99

$

Usually ships in 3-7 days

0

18

Bear Cat 16615

BUSHING, SD 1-3/4"

$

$

Not available

19

WAS PN 16958, DRIVESHAFT (REPLACED AND SUPERSEDED. FOR SERVICE ORDER PN 32219-00 DRIVELINE).

$

$

Not available

19

Bear Cat 32219-00

DRIVELINE
(Superseded to 71592-00)

$812.99

$

Usually ships in 3-7 days

0

20

Bear Cat 71123

PADDLE, BIG CHIPPER

$56.99

$

Usually ships in 3-7 days

0

21

WAS 71140, BEARING BRACKET. (REPLACED AND SUPERSEDED. FOR SERVICE ORDER PN 75960-12, BRACKET, DISK LOCK. (IF ORDERING NEW BRACKET ALSO ORDER PN 14544-00-HITCH PIN, 15001-BOLT, PN 15030-WASHER & PN 15355-NUT. SEE PAGES 8 & 9 FOR DETAILS))

$

$

Not available

22

Bear Cat 71228

JACKSHAFT, CHIPPER DRIVE

$99.99

$

Usually ships in 3-7 days

0

23

Bear Cat 71280

COLLAR, CHIPPER LOCK

$

$

Not available

24

Bear Cat 71325

WELDMENT, LEFT BEARING BRACKET

$

$

Not available

25

Bear Cat 71409

SHIELD, SHAFT

$31.99

$

Usually ships in 3-7 days

0

26

Bear Cat 72204-12

SPACER, 2.0 X 1.88

$

$

Not available

27

Bear Cat 76112-00

BLADE, BIG CHIPPER

$

$

Not available

28

Bear Cat 76287-00

ASSEMBLY, 9 INCH CHIPPER DISK

$4065.99

$

Usually ships in 3-7 days

0
