CH 8540 - Bear Cat 8" Chipper, 540cc PTO Gravity Feed (SN: B00001 - C09929) Drive Assembly (SN B10056 AND ABOVE) Parts Diagram

8" Chipper, 540cc PTO Gravity Feed

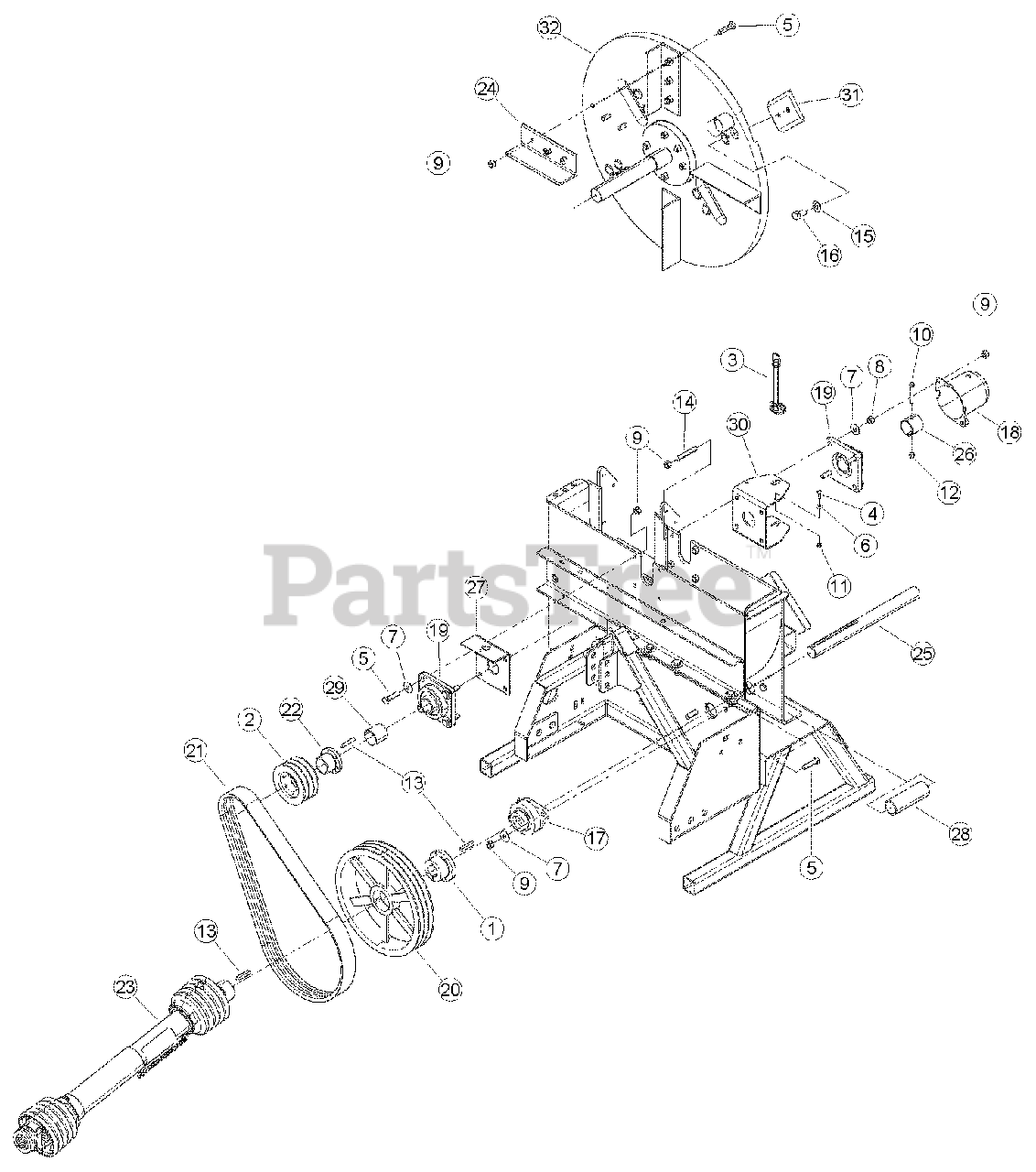

Drive Assembly (SN B10056 AND ABOVE) Parts Diagram

  • Title

1

Bear Cat 12441

BUSHING, SK 1-1/2"

$

$

Not available

2

Bear Cat 12449

SHEAVE 3B4.8 SD

$126.99

$

Usually ships in 3-7 days

0

3

Bear Cat 14544-00

PIN, HITCH 1/2 X 6-1/2 W LYNCH

$37.99

$

Usually ships in 3-7 days

0

4

15001

BOLT, 1/4 X 3/4 HEX HD GR5 ZP

$

$

Not available

5

Bear Cat 15015

BOLT, 1/2 X 2 HEX HD GR5 ZP

$

$

Not available

6

15030

WASHER, 1/4 FLAT ZP

$

$

Not available

7

Bear Cat 15034

WASHER, 1/2 FLAT ZP

$

$

Not available

8

Bear Cat 15043

NUT, 1/2 HEX NC ZP

$

$

Not available

9

Bear Cat 15049

NUT, 1/2 CENTERLOCK GRB ZP

$

$

Not available

10

Bear Cat 15116

BOLT, 3/8 X 2-1/2 HEX HD GR5 ZP

$

$

Not available

11

Bear Cat 15355

NUT, 1/4 NE NYLOCK ZP

$

$

Not available

12

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

13

Bear Cat 15440

KEY, 3/8 SQUARE X 2 LONG PLAIN

$4.99

$

In Stock, only 2 left!

0

14

Bear Cat 15481

STUD, 1/2-13 X 3 LONG B7 ZP

$17.99

$

Usually ships in 3-7 days

0

15

Bear Cat 15770-00

WASHER, 5/8 SAE HARDENED

$2.49

$

Usually ships in 3-7 days

0

16

Bear Cat 15833-00

BOLT, M16 X 2.0 X 30 HEX HD W/PATCH

$11.99

$

Usually ships in 3-7 days

0

17

Bear Cat 16004

BEARING, 2 BOLT FLANGE 1-1/2" BORE

$82.99

$

Usually ships in 3-7 days

0

18

Bear Cat 16460

CAP, LARGE SHAFT

$

$

Not available

19

Bear Cat 16553

BEARING, 4 BOLT FLANGE 1-3/4" BORE

$

$

Not available

20

Bear Cat 16581

SHEAVE, 3B13.6 SK

$

$

Not available

21

BELT, BANDED CHIPPER (WAS PN 16582, REPLACED AND SUPERSEDED. FOR SERVICE ORDER PN 32252-00 BELT, 3RB64)

$

$

Not available

Bear Cat 32252-00

BELT, 3RB64
(Superseded to 34400-00)

$177.99

$

Usually ships in 3-7 days

0

22

Bear Cat 16615

BUSHING, SD 1-3/4"

$

$

Not available

23

DRIVESHAFT. (WAS PN 16958, REPLACED AND SUPERSEDED. FOR SERVICE ORDER PN 32219-00 DRIVELINE)

$

$

Not available

Bear Cat 32219-00

DRIVELINE
(Superseded to 71592-00)

$773.99

$

Usually ships in 3-7 days

0

24

Bear Cat 71123

PADDLE, BIG CHIPPER

$53.99

$

Usually ships in 3-7 days

0

25

Bear Cat 71228

JACKSHAFT, CHIPPER DRIVE

$94.99

$

In Stock, only 1 left!

0

26

Bear Cat 71280

COLLAR, CHIPPER LOCK

$

$

Not available

27

Bear Cat 71325

WELDMENT, LEFT BEARING BRACKET

$

$

Not available

28

Bear Cat 71409

SHIELD, SHAFT

$28.99

$

Usually ships in 3-7 days

0

29

Bear Cat 72204-12

SPACER, 2.0 X 1.88

$

$

Not available

30

Bear Cat 75960-12

BRACKET, DISK LOCK

$

$

Not available

31

Bear Cat 76112-00

BLADE, BIG CHIPPER

$

$

Not available

32

Bear Cat 76287-00

ASSEMBLY, 9 INCH CHIPPER DISK

$3871.99

$

Usually ships in 3-7 days

0
