CH 8540 - Bear Cat 8" Chipper, 540cc PTO Gravity Feed (SN: B00001 - C09929) Replacement CE Safety Switch Parts Diagram

8" Chipper, 540cc PTO Gravity Feed

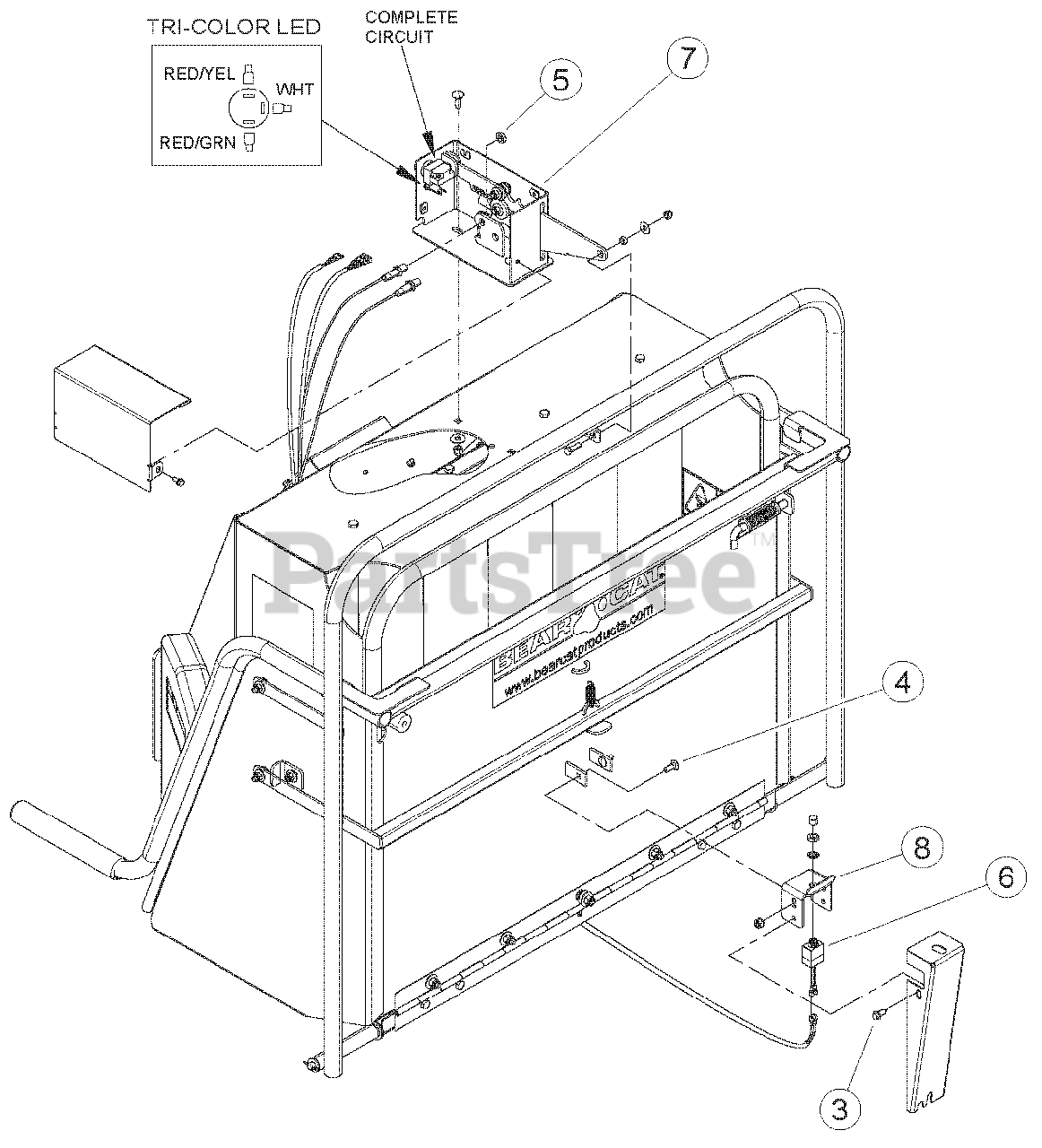

Replacement CE Safety Switch Parts Diagram

  • Title
1

Bear Cat 14624-00

CONNECTOR, 1/4 QD FEMALE

$1.99

$

Usually ships in 3-7 days

0

2

Bear Cat 14625-00

CONNECTOR, 1/4 QD MALE

$2.99

$

Usually ships in 3-7 days

0

3

15176

SCW,11/32*7/8 HWH AB THREAD ZP

$

$

Not available

4

Bear Cat 15349

BOLT,CARR 5/16*7/8" GR5 NC ZP

$

$

Not available

5

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

6

Bear Cat 32375-00

SWITCH, MOMENTARY IP67 NORMALLY ON
(Superseded to 32693-00)

$172.99

$

Usually ships in 3-7 days

0

7

Bear Cat 77527-00

ASSEMBLY, SWITCH BOX

$542.99

$

Usually ships in 3-7 days

0

8

Bear Cat 77532-12

BRACKET, SWITCH

$56.99

$

Usually ships in 3-7 days

0
