CH 8720 iH - Bear Cat 8" Chipper, 720cc Subaru Turntable (SN: 5VJAA0000DW000001 - 5VJAA0413GW005118) Feed Roller Parts Diagram

8" Chipper, 720cc Subaru Turntable

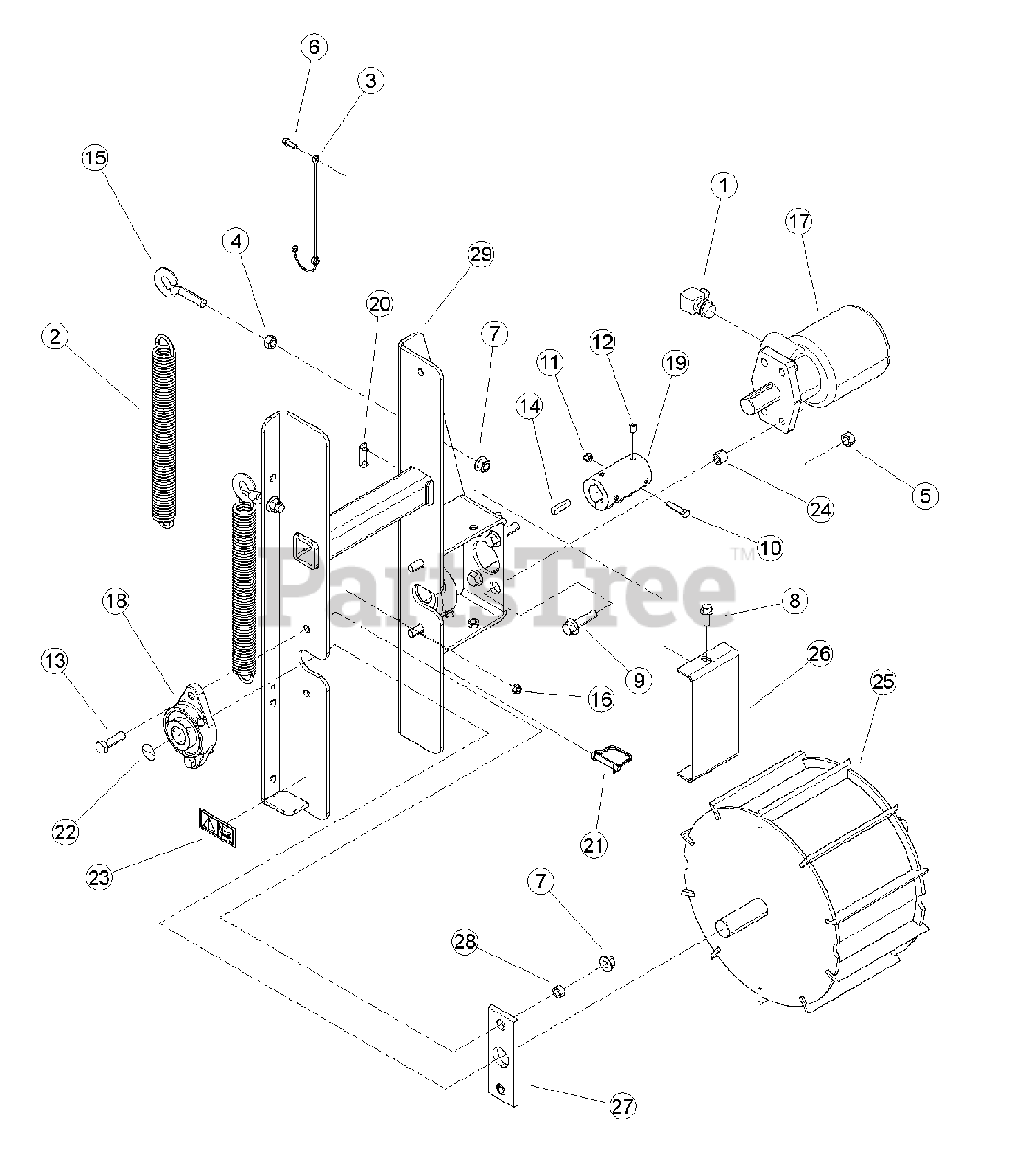

Feed Roller Parts Diagram

  • Title

1

11810

ADAPTER, -10MORING/-8MJIC 90 DEG

$

$

Not available

2

Bear Cat 12504-12

SPRING, EXTENSION

$

$

Not available

3

12530

LANYARD, NYLON

$

$

Not available

4

Bear Cat 15043

NUT, 1/2" HEX NC ZP

$

$

Not available

5

Bear Cat 15049

NUT, 1/2" CENTERLOCK GRB ZP

$

$

Not available

6

15079-00

BOLT, 1/4-20 X 3/4 HWH GR5 CZP

$

$

Not available

7

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

8

15163-00

BOLT, 3/8 X 1 FLANGE NC

$

$

Not available

9

15200-00

BOLT, 1/2-13 X 2 HWH GR5 CZP

$

$

Not available

10

15282

BOLT, 5/16 X 1-1/2 GR5 HEX CPS ZP

$

$

Not available

11

Bear Cat 15356

NUT, 5/16" NE NYLOCK ZP

$

$

Not available

12

Bear Cat 15461

SET SCREW, 3/8 X 1/2 CUP PT SKT

$

$

Not available

13

15478

BOLT, 1/2 X 1 3/4 GR5 HCPS NC ZP

$

$

Not available

14

Bear Cat 15498

KEY, 5/16 X 1-1/2 SQUARE

$

$

Not available

15

Bear Cat 15502

EYEBOLT, 1/2 X 2" ZP

$31.99

$

Usually ships in 3-7 days

0

16

Bear Cat 15900-00

NUT, 1/4-20 NYLOCK-FLANGE

$0.99

$

Usually ships in 3-7 days

0

17

Bear Cat 16586

MOTOR, 45 CU IN HYDRAULIC

$1444.99

$

Usually ships in 3-7 days

0

18

Bear Cat 16682

BEARING, 1-1/4" DIA 2 BOLT FLANGE

$

$

Not available

19

Bear Cat 16683

COUPLER, 1-1/4 SHAFT

$

$

Not available

20

17434

WEAR PAD, STD. SPRING HD FRONT

$

$

Not available

21

Bear Cat 17879

PIN, SNAP 3/8 X 1-1/2 USABLE LGH

$

$

Not available

22

Bear Cat 18061-00

DECAL, ROTATING SHAFT

$11.99

$

Usually ships in 3-7 days

0

23

Bear Cat 18983-00

DECAL, CRUSHING ISO

$5.49

$

Usually ships in 3-7 days

0

24

Bear Cat 70534

SPACER, 0.75 X 0.620

$10.99

$

Usually ships in 3-7 days

0

25

Bear Cat 71298

WELDMENT, TOP GRAB ROLLER
(Superseded to 77135-00)

$814.99

$

Usually ships in 3-7 days

0

26

Bear Cat 71335

SHIELD, COUPLER

$45.99

$

Usually ships in 3-7 days

0

27

Bear Cat 73248

BEARING, SLIDE

$39.99

$

Usually ships in 3-7 days

0

28

Bear Cat 73249

SPACER, .75 OD X .5 ID X .37

$10.99

$

Usually ships in 3-7 days

0

29

Bear Cat 77150-12

WELDMENT, ROLLER SLIDE

$

$

Not available
