CH 8720 iH - Bear Cat 8" Chipper, 720cc Subaru Turntable (SN: 5VJAA0000DW000001 - 5VJAA0413GW005118) Idler (A) Parts Diagram

8" Chipper, 720cc Subaru Turntable

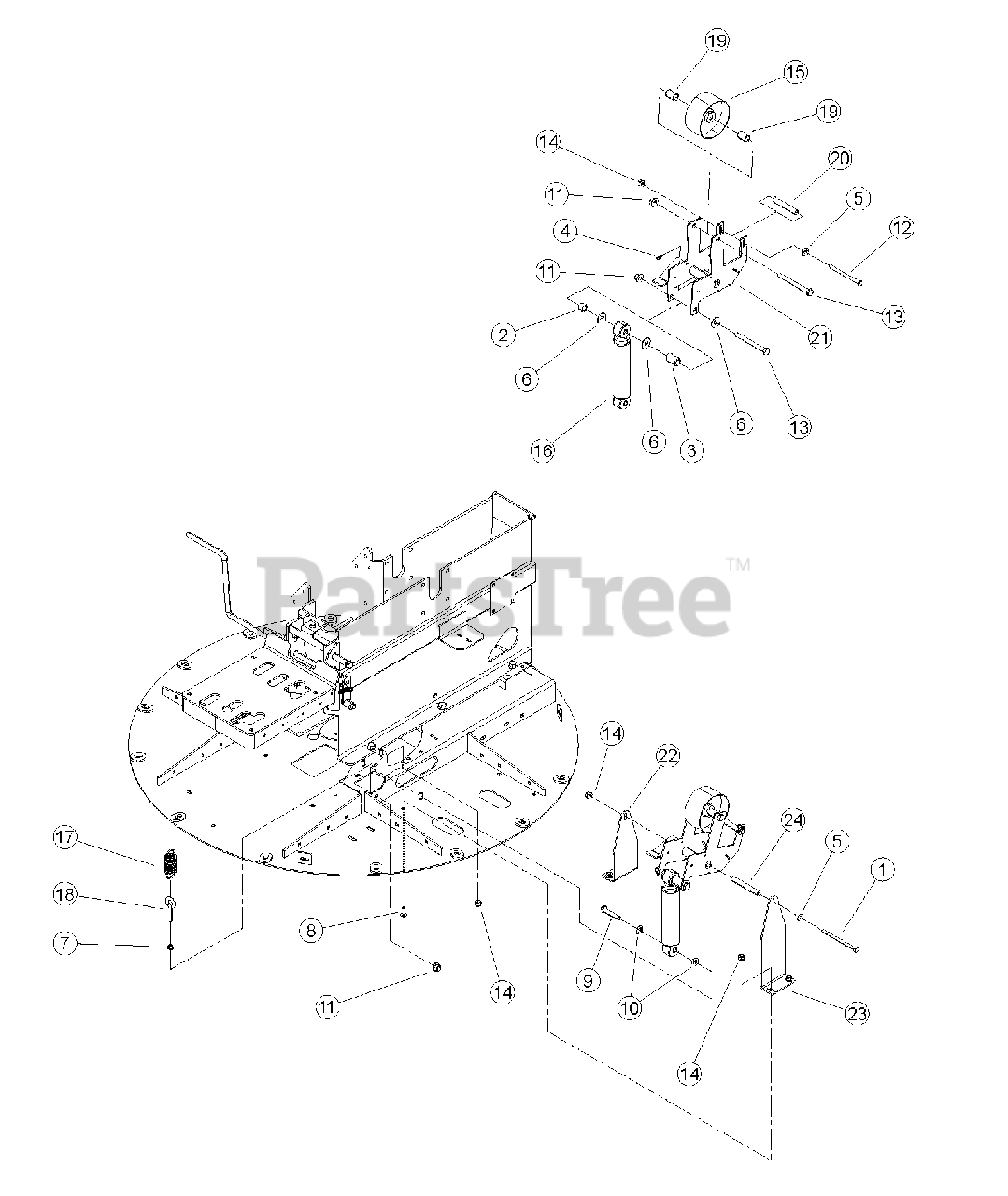

Idler (A) Parts Diagram

  • Title

1

0103-0848-00

BOLT, 3/8 X 5-1/2 HEX GR5 ZP

$

$

Not available

2

0313-0552-00

SPACER, .875 X .562 X .62 STL

$

$

Not available

3

0313-0561-00

SPACER, 1.00 X .688 X 1.50 STL

$

$

Not available

4

Bear Cat 12275

FITTING, 1/4 SELF-TAP GREASE

$

$

Not available

5

Bear Cat 15031

WASHER, 3/8" FLAT ZP

$

$

Not available

6

Bear Cat 15034

WASHER, 1/2" FLAT ZP

$

$

Not available

7

Bear Cat 15051

NUT, 3/8" SERRATED FLANGE NC ZP

$

$

Not available

8

15057

BOLT, 3/8 X 1" GR5 CRG NC ZP

$

$

Not available

9

Bear Cat 15092

BOLT, 1/2 X 2-1/2 GR5 HEX CAP ZP

$

$

Not available

10

Bear Cat 15097

WASHER, 1/2" SAE FLAT ZP

$

$

Not available

11

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

12

15205

BOLT, 3/8 X 5" GR5 HEX CPS ZP

$

$

Not available

13

Bear Cat 15394

BOLT, 1/2 X 5" GR5 HHCS NC ZP

$

$

Not available

14

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

15

Bear Cat 16230

PULLEY, IDLER 5 X 2.50"

$85.99

$

Usually ships in 3-7 days

0

16

Bear Cat 16786

ABSORBER, IDLER SHOCK

$

$

Not available

17

Bear Cat 17415

SPRING, 1.25OD X 3.50LG X .148WD

$

$

Not available

18

17416

EYE BOLT G-2, 3/8 X 2" ZP

$

$

Not available

19

Bear Cat 71106

SPACER, .875 X 1.25

$

$

Not available

20

Bear Cat 72511

SPACER, 5/8 OD X 11 GA X 3.80

$18.99

$

Usually ships in 3-7 days

0

21

Bear Cat 75200-12

WELDMENT, BELT IDLER

$

$

Not available

22

Bear Cat 75204-12

ANGLE, IDLER BRACKET

$

$

Not available

23

Bear Cat 75205-12

ANGLE, IDLER BRACKET

$

$

Not available

24

Bear Cat 75212-00

SPACER, 5/8 OD X 11 GA X 4.30

$22.99

$

Usually ships in 3-7 days

0
