CH 8720 iH - Bear Cat 8" Chipper, 720cc Subaru Turntable (SN: 5VJAA0000DW000001 - 5VJAA0413GW005118) Turntable (NON-CE COMPLIANT) Parts Diagram

8" Chipper, 720cc Subaru Turntable

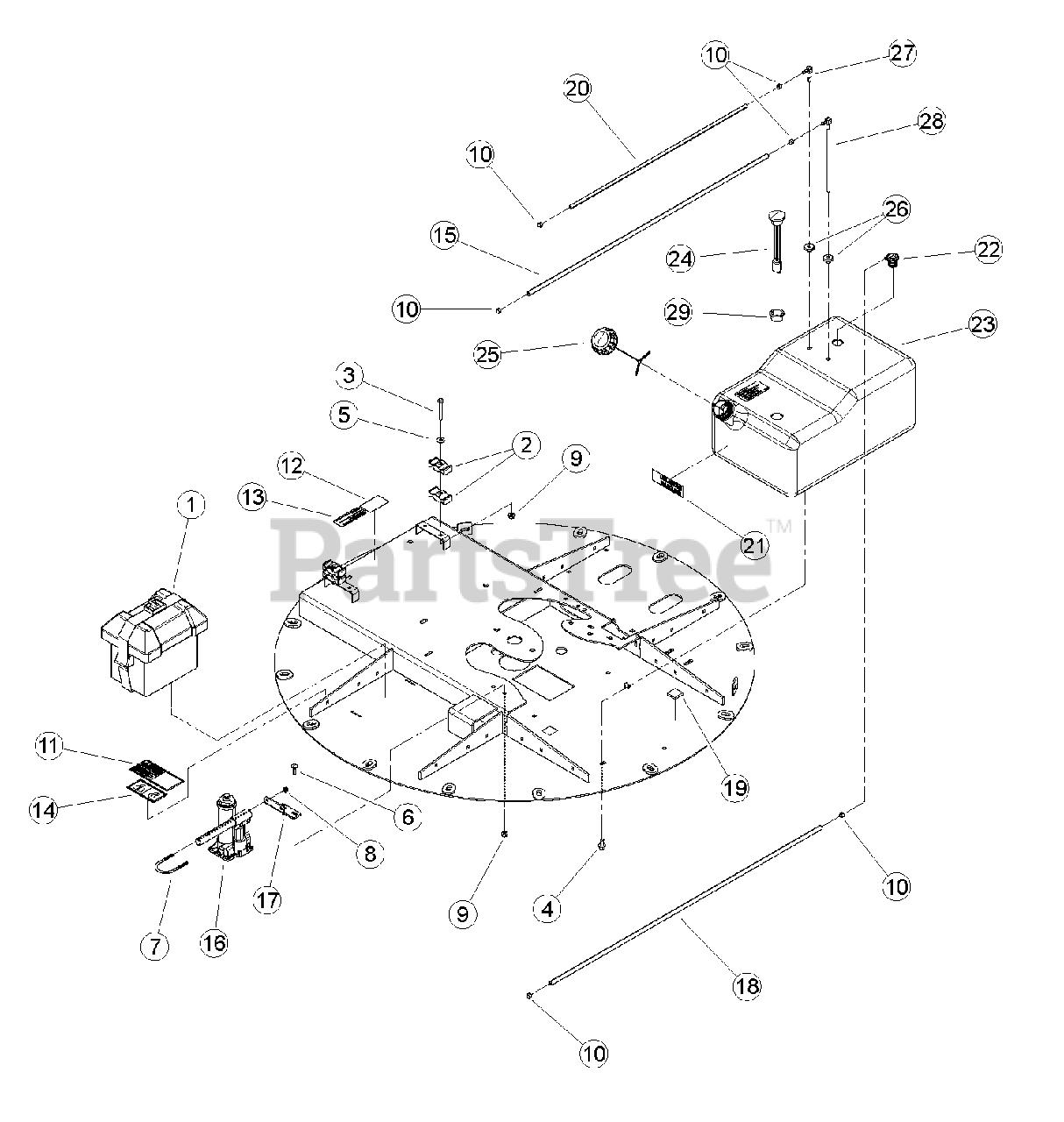

Turntable (NON-CE COMPLIANT) Parts Diagram

  • Title

1

Bear Cat 12839

BOX, SMALL BATTERY

$83.99

$

Usually ships in 3-7 days

0

2

14157-00

CLAMP, PLASTIC HOSE

$

$

Not available

3

Bear Cat 15154

BOLT, 5/16 X 2-1/2 G5 HX CAP ZP

$

$

Not available

4

15229-00

BOLT, 3/8 X 3/4 FLANGE NC

$

$

Not available

5

Bear Cat 15250

WASHER, 5/16" FLAT ZP

$

$

Not available

6

Bear Cat 15301

BOLT, 5/16 X 1" GR5 CRG ZP

$

$

Not available

7

Bear Cat 15768-00

U-BOLT, 1/4 X 1-1/2 PIPE

$8.99

$

Usually ships in 3-7 days

0

8

Bear Cat 15900-00

NUT, 1/4-20 NYLOCK-FLANGE

$0.99

$

Usually ships in 3-7 days

0

9

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

10

Bear Cat 16378

CLAMP, 15/32 SPRING

$3.99

$

Usually ships in 3-7 days

0

11

Bear Cat 18294-00

DECAL, HITCH TRANSPORT

$18.99

$

Usually ships in 3-7 days

0

12

Bear Cat 32154-00

DECAL, P215/70R15 LOAD RATING

$22.99

$

Usually ships in 3-7 days

0

13

32519-00

DECAL, EPA EVAP

$

$

Not available

14

Bear Cat 36378-00

DECAL, LOCK

$11.99

$

Usually ships in 3-7 days

0

15

Bear Cat 73079

HOSE, 38" FUEL LINE

$54.99

$

Usually ships in 3-7 days

0

16

Bear Cat 73722-12

JACK, HYDRAULIC 2 TON

$

$

Not available

17

Bear Cat 74981-12

PLATE, JACK MOUNT

$

$

Not available

18

Bear Cat 75057-00

HOSE, 43 INCH FUEL LINE

$58.99

$

Usually ships in 3-7 days

0

19

Bear Cat 76477-00

PAD, FOAM FUEL TANK DAMPER

$20.99

$

Usually ships in 3-7 days

0

20

Bear Cat 76771-00

HOSE, 28 INCH FUEL LINE 1/4"

$46.99

$

Usually ships in 3-7 days

0

Bear Cat 77717-00

ASSEMBLY, FUEL TANK EFI

Note: (INCLUDES ITEMS 21-29)

$457.99

$

Usually ships in 3-7 days

0

21

Bear Cat 18982-00

DECAL, UNLEADED GASOLINE

$5.49

$

Usually ships in 3-7 days

0

22

Bear Cat 32542-00

VALVE, ROLL OVER

$181.99

$

In Stock, only 1 left!

0

23

32822-00

TANK, ROTOMOLDED FUEL

$

$

Not available

24

Bear Cat 32823-00

GAUGE, FUEL LEVEL KELCH 100

$51.99

$

Usually ships in 3-7 days

0

25

Bear Cat 32824-00

CAP, NON-VENTED EPA/CARB APPROVED

$39.99

$

Usually ships in 3-7 days

0

26

Bear Cat 36689-00

GROMMET, TANK FITTING

$2.99

$

Usually ships in 3-7 days

0

27

Bear Cat 36691-00

FITTING, TANK VENT

$16.99

$

Usually ships in 3-7 days

0

28

Bear Cat 36694-00

FITTING, TANK FUEL PICK-UP TUBE

$25.99

$

Usually ships in 3-7 days

0

29

Bear Cat 36696-00

GROMMET, KELCH 100 GAUGE

$7.99

$

Usually ships in 3-7 days

0
