CH 8720 iH - Bear Cat 8" Chipper, 720cc Subaru Turntable (SN: 5VJAA0016AW002730 - 5VJAA0012CW003733) Frame (NON-CE COMPLIANT) (Part 1) Parts Diagram

8" Chipper, 720cc Subaru Turntable

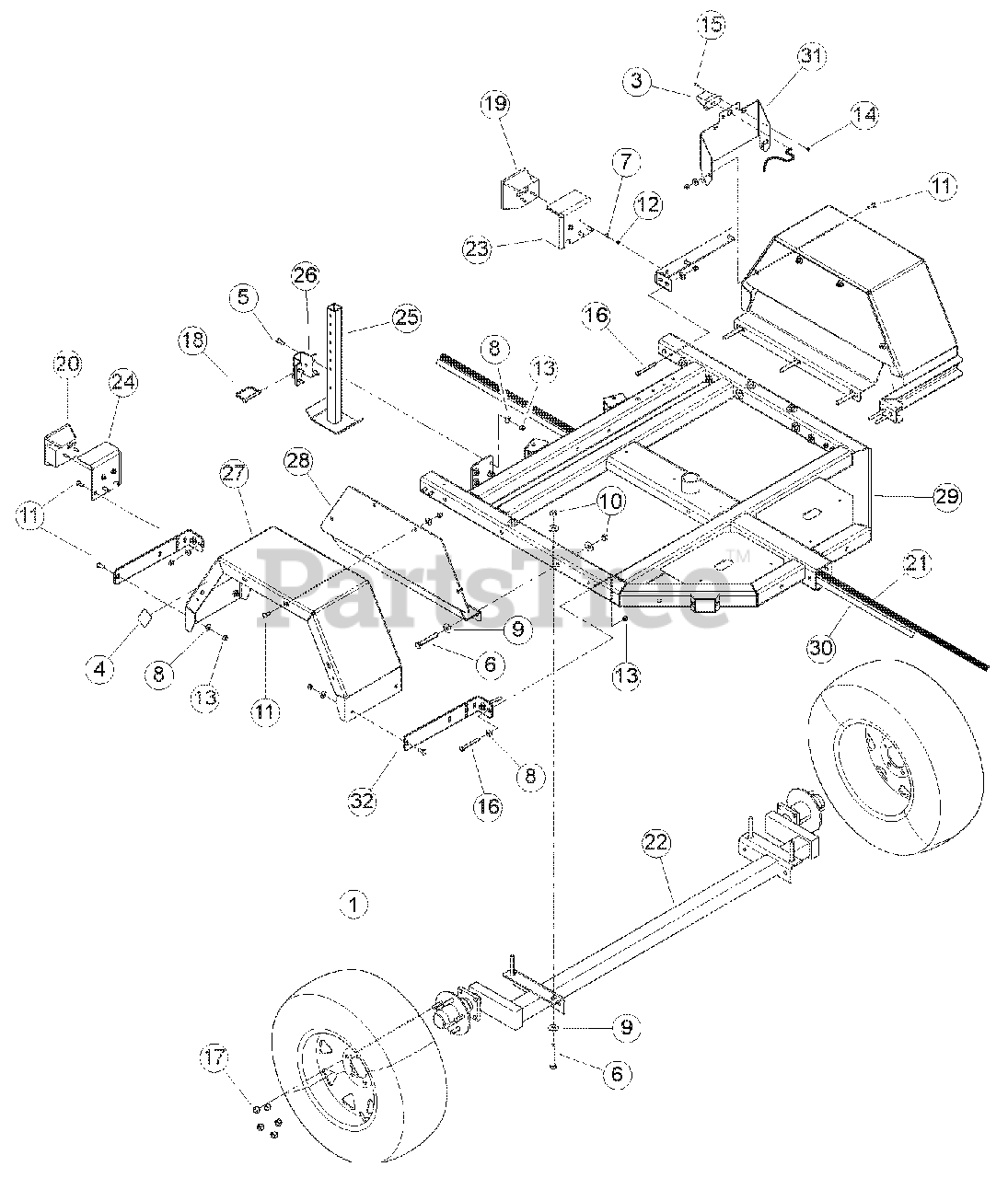

Frame (NON-CE COMPLIANT) (Part 1) Parts Diagram

  • Title

1

Bear Cat 12125

ASSY, 15 INCH TIRE + WHEEL

$584.99

$

Usually ships in 3-7 days

0

2

Bear Cat 14367-00

PLUG, 12 VOLT LIGHT

$9.49

$

Usually ships in 3-7 days

0

3

Bear Cat 14368-00

LIGHT, LICENSE PLATE

$

$

Not available

4

Bear Cat 14374-00

REFLECTOR, WIDE ANGLE RED

$5.99

$

Usually ships in 3-7 days

0

5

Bear Cat 15006

BOLT, 3/8 X 1 HEX HD GR5 ZP

$0.99

$

Usually ships in 3-7 days

0

6

15016

BOLT, 1/2"X3-1/2" GR5 HEXHD ZP

$

$

Not available

7

15030

WASHER, 1/4" FLAT ZP(149PCS/LB)

$

$

Not available

8

Bear Cat 15031

WASHER, 3/8" FLAT ZP (67PCS/LB)

$

$

Not available

9

Bear Cat 15034

WASHER, 1/2" FLAT ZP-56PCS/LB

$0.99

$

Usually ships in 3-7 days

0

10

Bear Cat 15049

NUT, 1/2" CENTERLOCK GRB ZP

$0.99

$

Usually ships in 3-7 days

0

11

15057

BOLT, CARR 3/8 * 1" GR5 NC ZP

$

$

Not available

12

Bear Cat 15355

NUT, 1/4" NE NYLOCK ZP

$

$

Not available

13

Bear Cat 15388

NUT, 3/8" NE NYLOCK ZP

$0.99

$

Usually ships in 3-7 days

0

14

15397

NUT, 10/24 NYLOCK TYPE NM, ZP

$

$

Not available

15

15423

SCW,MCH 10-24*1/2"PAN HD,PH ZP

$

$

Not available

16

Bear Cat 15501

BOLT, 3/8X3-1/4 HXHD GR5 ZP

$

$

Not available

17

Bear Cat 15527

NUT, 1/2-20 WHEEL

$

$

Not available

18

16808

PIN, 3/8" X 2-3/4" SNAP

$

$

Not available

19

Bear Cat 16903

LIGHT, LH TAIL

$38.99

$

Usually ships in 3-7 days

0

20

Bear Cat 16904

LIGHT, RH TAIL

$37.99

$

Usually ships in 3-7 days

0

21

Bear Cat 16905

HARNESS, TRAILER LIGHT

$60.99

$

Usually ships in 3-7 days

0

22

AXLE, 2500 LB TORSION, WAS 18100-00 (SN 5VJAA0017BW002799 AND BELOW) (REPLACED AND SUPERSEDED. FOR SERVICE ORDER PN 31636-00, AXLE, TORSION SUSPENSION).

$

$

Not available

22

Bear Cat 31636-00

AXLE, TORSION SUSPENSION (SN 5VJAA0010BW002814 AND ABOVE)

$1346.99

$

Usually ships in 3-7 days

0

23

Bear Cat 71278

BRACKET, LH TAILLIGHT

$

$

Not available

24

Bear Cat 71279

BRACKET, RH TAILLIGHT

$

$

Not available

25

Bear Cat 73449-12

WELDMENT, REAR STABILIZER

$

$

Not available

26

Bear Cat 73450-12

GUIDE, TRAILER SUPPORT

$

$

Not available

27

Bear Cat 73865-12

FENDER, CHIPPER

$

$

Not available

28

Bear Cat 73866-12

BRACKET, FENDER

$

$

Not available

29

Bear Cat 73867-12

WELDMENT, CHIPPER TRAILER

$2458.99

$

Usually ships in 3-7 days

0

30

Bear Cat 74538-00

CONDUIT, 1/4 X 120 WIRE

$40.99

$

Usually ships in 3-7 days

0

31

Bear Cat 75183-12

BRACKET, LICENSE PLATE

$

$

Not available

32

Bear Cat 75210-12

ANGLE, FENDER GUSSET

$

$

Not available
