CH 8720 iH - Bear Cat 8" Chipper, 720cc Subaru Turntable (SN: 5VJAA0016AW002730 - 5VJAA0012CW003733) Idler (Part 1) Parts Diagram

8" Chipper, 720cc Subaru Turntable

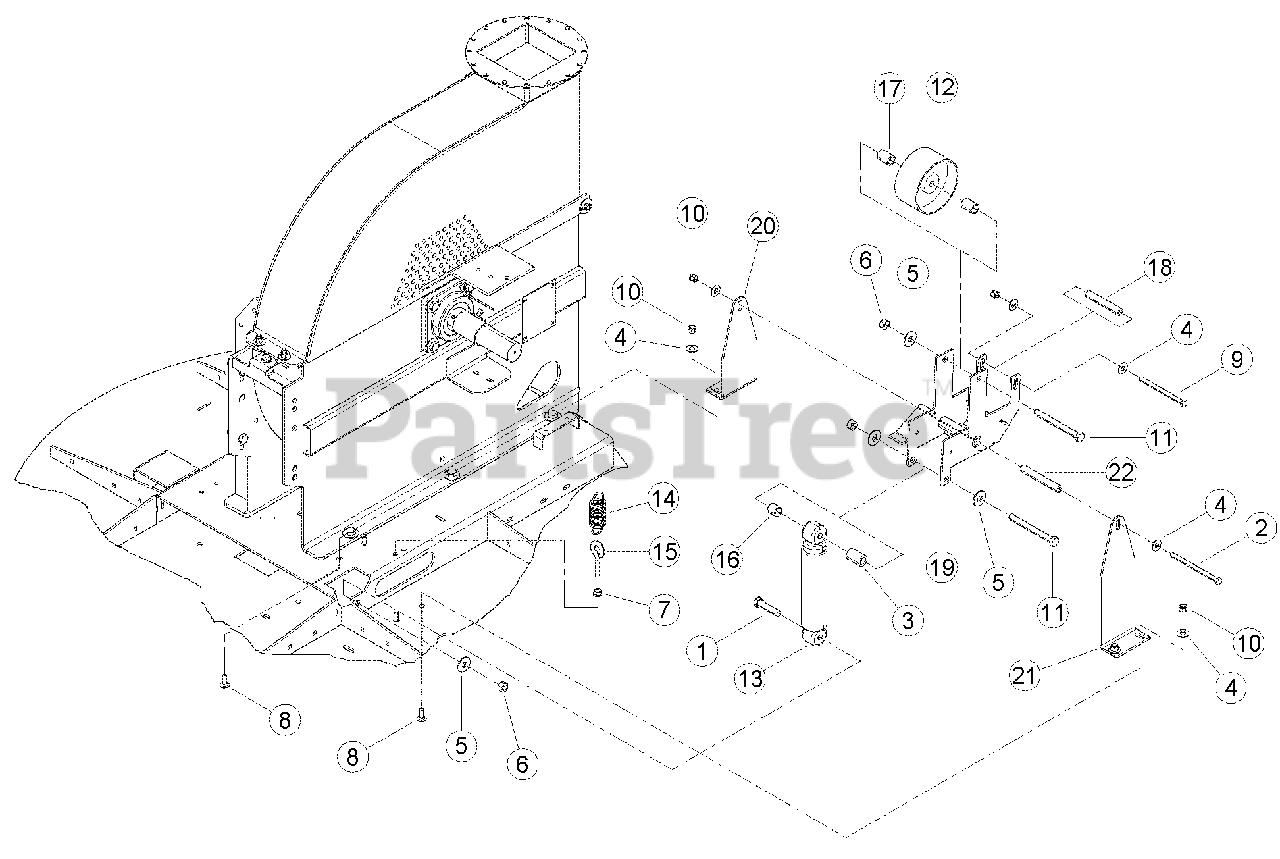

Idler (Part 1) Parts Diagram

  • Title

1

0103-0792-00

BOLT, 1/2 X 2-1/4 HEX HD GR5 ZP

$

$

Not available

2

0103-0848-00

BOLT, 3/8 X 5-1/2 HEX GR5 ZP

$

$

Not available

3

0313-0561-00

SPACER, 1.00 X .656 X 1.50 STL

$

$

Not available

4

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

5

Bear Cat 15034

WASHER, 1/2 FLAT ZP

$

$

Not available

6

Bear Cat 15049

NUT, 1/2 CENTERLOCK GRB ZP

$

$

Not available

7

Bear Cat 15051

NUT, 3/8 SERR FLANGE NC ZP

$

$

Not available

8

15057

BOLT, 3/8 X 1 CRG GR5 NC ZP

$

$

Not available

9

15205

BOLT, 3/8 X 5 HEX HD GR5 ZP

$

$

Not available

10

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

11

Bear Cat 15394

BOLT, 1/2 X 5 HHCS GR5 NC ZP

$

$

Not available

12

Bear Cat 16230

PULLEY, IDLER 5" X 2.50"

$85.99

$

Usually ships in 3-7 days

0

13

Bear Cat 16786

ABSORBER, IDLER SHOCK

$

$

Not available

14

Bear Cat 17415

SPRING, 1.25OD X 3.50LG X .148WD

$

$

Not available

15

17416

EYE BOLT, 3/8 X 2 GR2 ZP

$

$

Not available

16

Bear Cat 71105

SPACER, .875 X .81

$15.99

$

Usually ships in 3-7 days

0

17

Bear Cat 71106

SPACER, .875 X 1.25

$

$

Not available

18

Bear Cat 72511

SPACER, 5/8 OD X 11 GA X 3.80

$18.99

$

Usually ships in 3-7 days

0

19

Bear Cat 75200-12

WELDMENT, BELT IDLER

$

$

Not available

20

Bear Cat 75204-12

ANGLE, IDLER BRACKET

$

$

Not available

21

Bear Cat 75205-12

ANGLE, IDLER BRACKET

$

$

Not available

22

Bear Cat 75212-00

SPACER, 5/8 OD X 11 GA X 4.30

$22.99

$

Usually ships in 3-7 days

0
