CH 8720 iH - Bear Cat 8" Chipper, 720cc Subaru Turntable (SN: 5VJAA0416GW005193 & Above) Frame (A) (Part 2) Parts Diagram

8" Chipper, 720cc Subaru Turntable

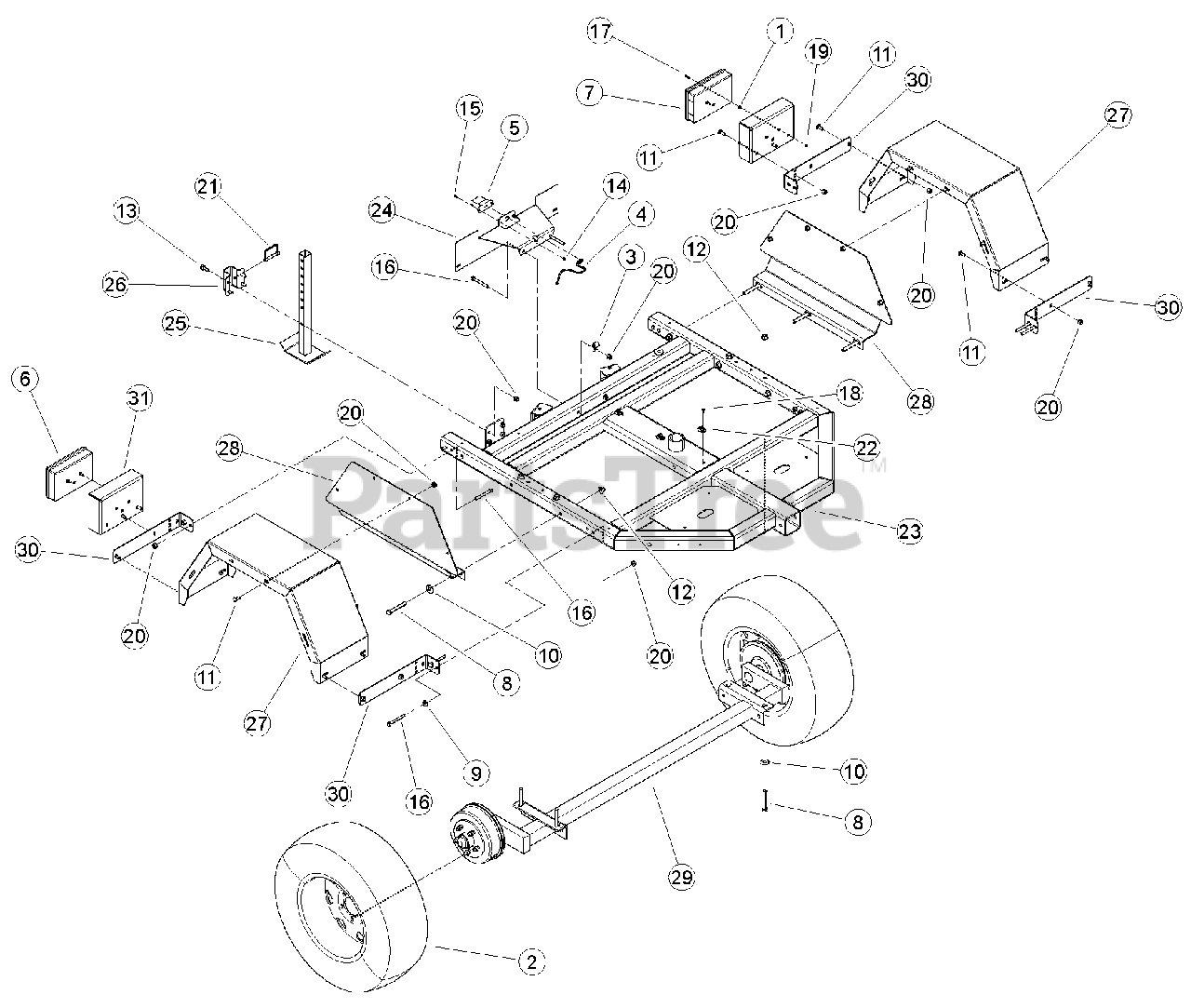

Frame (A) (Part 2) Parts Diagram

  • Title

1

0934-0004-00

GROMMET, 1/4 X 5/8 RUBBER

$

$

Not available

2

Bear Cat 12125

ASSEMBLY, 15 INCH TIRE + WHEEL

$584.99

$

Usually ships in 3-7 days

0

3

14048-00

CLAMP, 9/16 COATED

$

$

Not available

4

Bear Cat 14367-00

PLUG, 12 VOLT LIGHT

$9.49

$

Usually ships in 3-7 days

0

5

Bear Cat 14368-00

LIGHT, LICENSE PLATE

$

$

Not available

6

Bear Cat 14566-00

LIGHT, TAIL RH

$93.99

$

Usually ships in 3-7 days

0

7

Bear Cat 14580-00

LIGHT, TAIL LH

$93.99

$

Usually ships in 3-7 days

0

8

15016

BOLT, 1/2 X 3-1/2" GR5 HEX HD ZP

$

$

Not available

9

Bear Cat 15031

WASHER, 3/8" FLAT ZP

$

$

Not available

10

Bear Cat 15034

WASHER, 1/2" FLAT ZP

$0.99

$

Usually ships in 3-7 days

0

11

15057

BOLT, 3/8 X 1" GR5 CRG NC ZP

$

$

Not available

12

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

13

15163-00

BOLT, 3/8 X 1 FLANGE NC

$

$

Not available

14

15397

NUT, 10/24 NYLOCK TYPE NM ZP

$

$

Not available

15

15423

SCREW,MCH 10-24 X 1/2" PAN HD PH ZP

$

$

Not available

16

Bear Cat 15501

BOLT, 3/8 X 3-1/4 HEX HD GR5 ZP

$

$

Not available

17

15557

BOLT, 10-24 X 3/4" HHCS GR8 PLAIN

$

$

Not available

18

Bear Cat 15828-00

RIVET, AL BLIND 1/4 X 3/4 DOME HEAD

$2.99

$

Usually ships in 3-7 days

0

19

Bear Cat 15830-00

NUT, #10-24 K-LOCK ZP

$2.49

$

Usually ships in 3-7 days

0

20

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

21

16808

PIN, 3/8 X 2-3/4" SNAP

$

$

Not available

22

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$8.49

$

Usually ships in 3-7 days

0

23

70623-12

WELDMENT, 8" CHIPPER TRAILER

$

$

Not available

24

71342-12

BRACKET, CE LICENSE PLATE MOUNT

$

$

Not available

25

Bear Cat 73449-12

WELDMENT, REAR STABILIZER

$

$

Not available

26

Bear Cat 73450-12

GUIDE, TRAILER SUPPORT

$

$

Not available

27

Bear Cat 73865-12

FENDER, CHIPPER

$

$

Not available

28

Bear Cat 73866-12

BRACKET, FENDER

$

$

Not available

29

Bear Cat 74564-00

ASSEMBLY, 2,500 LB TORSION AXLE

$

$

Not available

30

Bear Cat 75210-12

ANGLE, FENDER GUSSET

$

$

Not available

31

Bear Cat 75271-12

BRACKET, TAIL LIGHT

$

$

Not available

17320

STRAP, 11 IN BLACK TIE

Note: (NOT SHOWN)

$

$

Not available

Bear Cat 18570-00

HARNESS, CHIPPER TRAILER

Note: (NOT SHOWN)

$

$

Not available
