CH 8720 iH - Bear Cat 8" Chipper, 720cc Subaru Turntable (SN: 5VJAA0416GW005193 & Above) Hitch (Part 2) Parts Diagram

8" Chipper, 720cc Subaru Turntable

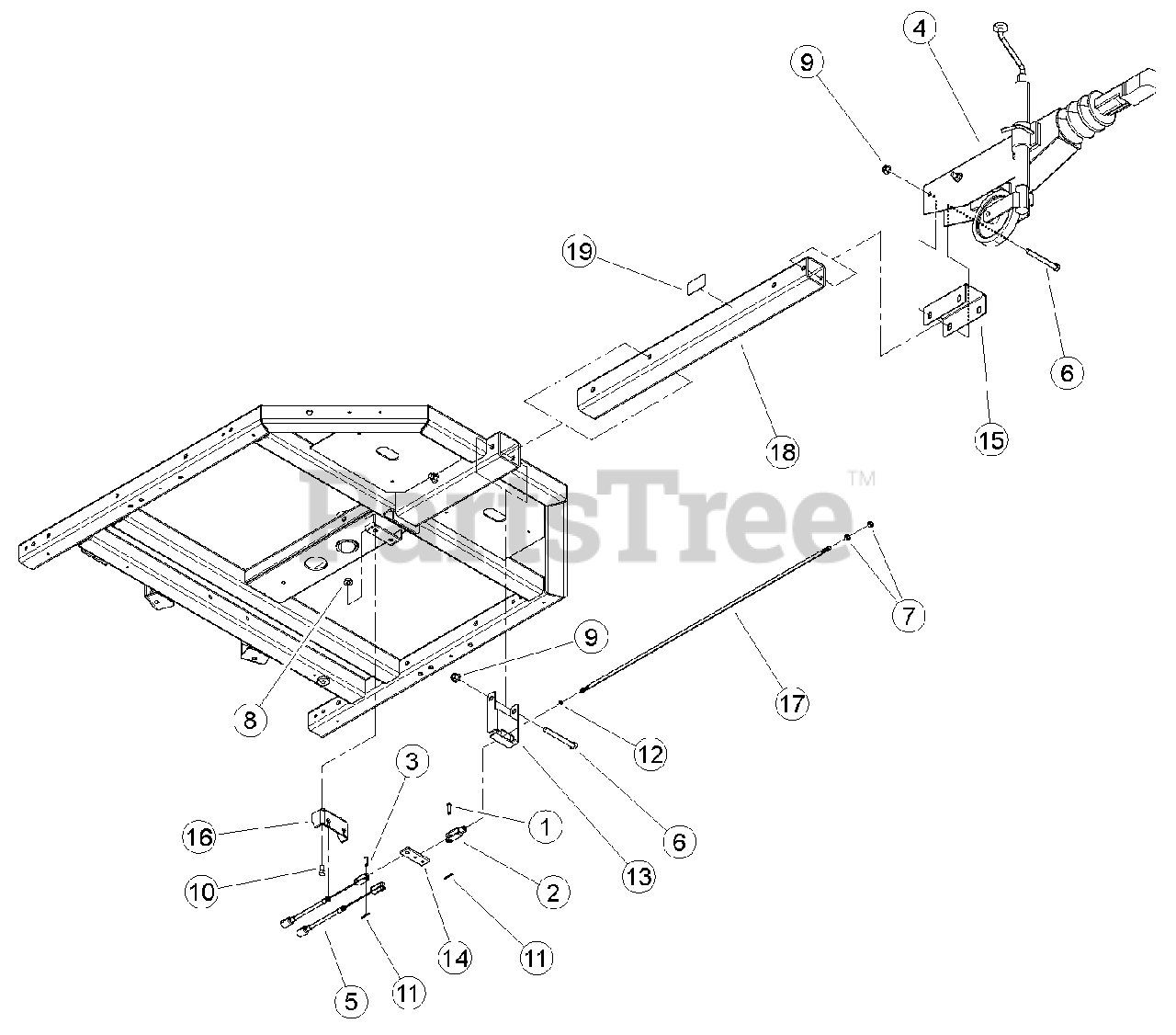

Hitch (Part 2) Parts Diagram

  • Title

1

0110-0339-00

PIN, CLEVIS-3/8 X 1-1/4 ZP

$

$

Not available

2

0150-0050-00

CLEVIS, ADJ ROD END 3/8-24UNF

$

$

Not available

3

14582-00

PIN, CLEVIS 5/16 X 1

$

$

Not available

4

Bear Cat 14583-00

COUPLING, SURGE W/ JOCKEY WHEEL

$1638.99

$

Usually ships in 3-7 days

0

5

Bear Cat 14585-00

CABLE, BRAKE

$73.99

$

Usually ships in 3-7 days

0

6

15017

BOLT, 1/2 X 4-1/2" GR5 HHCS NC ZP

$

$

Not available

7

Bear Cat 15042

NUT, 3/8" HEX NC ZP

$

$

Not available

8

15052

NUT, 7/16" SERRATED FLANGE NC ZP

$

$

Not available

9

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

10

Bear Cat 15199

BOLT, 7/16 X 3/4 HHCS GR5 ZP

$1.49

$

Usually ships in 3-7 days

0

11

Bear Cat 15375

PIN, 1/8 X 1.00 ZP COTTER

$

$

Not available

12

Bear Cat 15523

NUT, 3/8 NC JAM ZP

$

$

Not available

13

Bear Cat 74328-12

BRACKET, ROD HANGER

$

$

Not available

14

Bear Cat 74329-12

BAR, BRAKE COMPENSATOR

$

$

Not available

15

74339-12

CHANNEL, SPACER

$

$

Not available

16

Bear Cat 74627-12

WELDMENT,CABLE BRACKET

$

$

Not available

17

Bear Cat 75272-12

ROD, BRAKE

$

$

Not available

18

Bear Cat 77217-00

ASSEMBLY, HITCH POLE

Note: (INCLUDES ITEM 19)

$292.99

$

Usually ships in 3-7 days

0

19

Bear Cat 14375-00

REFLECTOR, WIDE ANGLE AMBER

$5.99

$

Usually ships in 3-7 days

0
