CH 8993 H - Bear Cat 8" Chipper, 993cc Briggs & Stratton Turntable (SN: 5VJAA0000DW000001 - 5VJAA0413GW005166) Engine Parts Diagram

8" Chipper, 993cc Briggs & Stratton Turntable

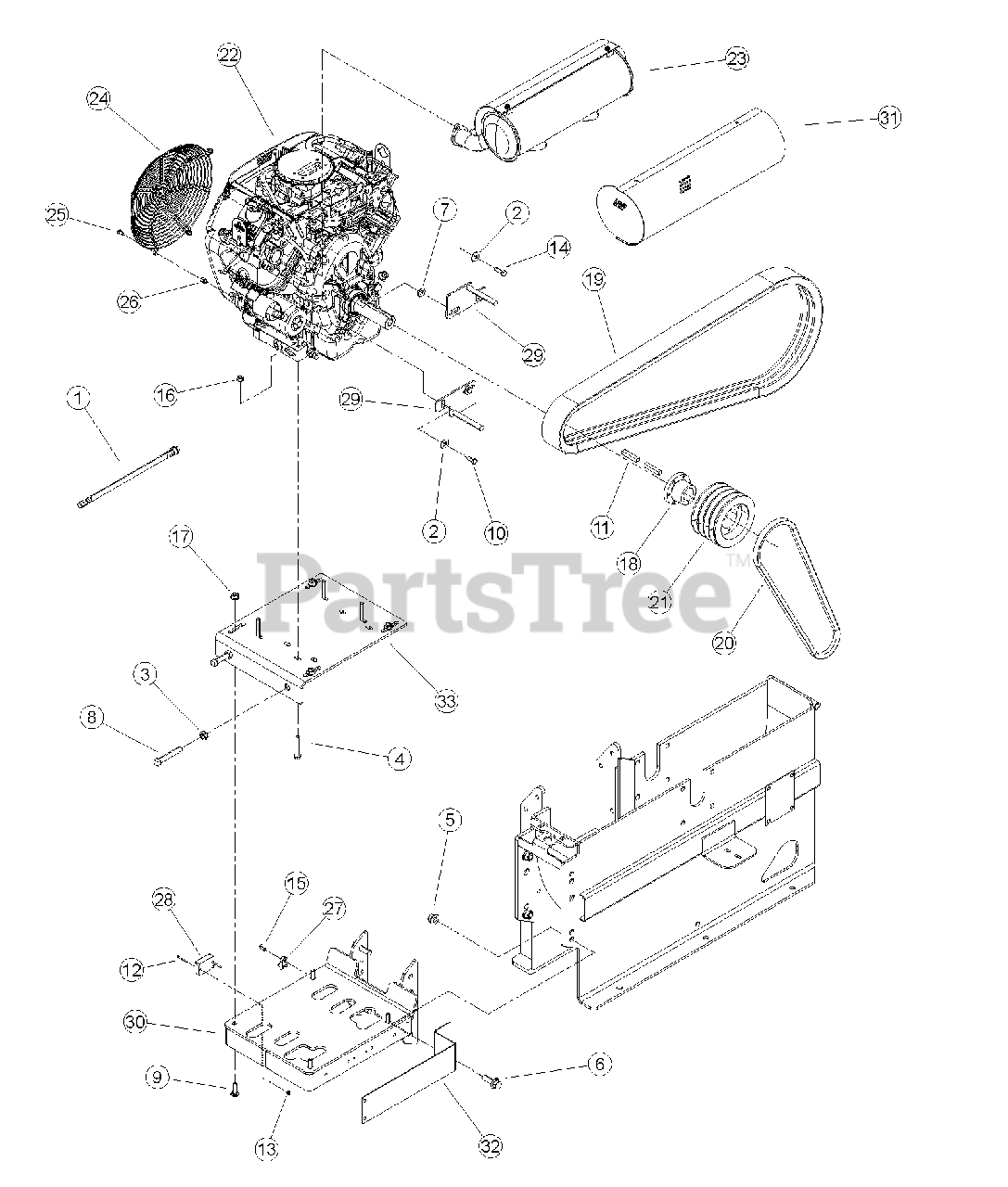

Engine Parts Diagram

  • Title

1

Bear Cat 14373-00

HOSE ASSEMBLY, CRANKCASE DRAIN

$81.99

$

Usually ships in 3-7 days

0

2

Bear Cat 15031

WASHER, 3/8" FLAT ZP

$

$

Not available

3

15089

NUT, 1/2 NC ZP JAM

$

$

Not available

4

Bear Cat 15135-00

BOLT, 5/16 X 2-1/4 FLANGE NC

$2.99

$

Usually ships in 3-7 days

0

5

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

6

15230-00

BOLT, 1/2-13 X 1-1/2 GR5 FLANGE NC

$

$

Not available

7

Bear Cat 15250

WASHER, 5/16" FLAT ZP

$

$

Not available

8

15285

SETSCREW, 1/2 X 3 SQ HD 1/2 DOG PT

$

$

Not available

9

15378

BOLT, 3/8 X 1-1/4" GR5 CRG NC ZP

$

$

Not available

10

Bear Cat 15381

BOLT, 5/16-24 X 3/4" GR5 HHCS ZP

$0.99

$

Usually ships in 3-7 days

0

11

Bear Cat 15440

KEY, 3/8" SQ X 2" LG PLAIN

$5.49

$

In Stock, only 2 left!

0

12

Bear Cat 15600

SCREW, #6-32 X 1-1/4" PHP HD

$0.99

$

Usually ships in 3-7 days

0

13

Bear Cat 15601

NUT, #6-32 NYLON LOCK ZP

$

$

Not available

14

Bear Cat 15775-00

NUT, 5/8-32 JAM

$13.99

$

Usually ships in 3-7 days

0

15

Bear Cat 15828-00

RIVET, AL BLIND 1/4 X 3/4 DOME HEAD

$2.99

$

Usually ships in 3-7 days

0

16

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

17

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

18

Bear Cat 16552

BUSHING, SD 1-7/16"

$60.99

$

Usually ships in 3-7 days

0

19

Bear Cat 16559

BELT, 3B83 BANDED

$232.99

$

Usually ships in 3-7 days

0

20

Bear Cat 18277-00

BELT, BX44

$77.99

$

Usually ships in 3-7 days

0

21

Bear Cat 18450-00

SHEAVE, 4B5.2 SD

$181.99

$

Usually ships in 3-7 days

0

22

ENGINE, BRIGGS 35 HP

Note: (FOR SERVICE SEE ENGINE OWNER'S MANUAL OR YOUR NEAREST BRIGGS & STRATTON INDUSTRIAL ENGINE DEALER)

$

$

Not available

23

MUFFLER, BRIGGS 35 HP

Note: (FOR SERVICE SEE ENGINE OWNER'S MANUAL OR YOUR NEAREST BRIGGS & STRATTON INDUSTRIAL ENGINE DEALER)

$

$

Not available

24

GUARD, WIRE FLYWHEEL BRIGGS

Note: (FOR SERVICE SEE ENGINE OWNER'S MANUAL OR YOUR NEAREST BRIGGS & STRATTON INDUSTRIAL ENGINE DEALER)

$

$

Not available

25

SCREW, FLYWHEEL GUARD BRIGGS

Note: (FOR SERVICE SEE ENGINE OWNER'S MANUAL OR YOUR NEAREST BRIGGS & STRATTON INDUSTRIAL ENGINE DEALER)

$

$

Not available

26

NUT, FLYWHEEL GUARD BRIGGS

Note: (FOR SERVICE SEE ENGINE OWNER'S MANUALOR YOUR NEAREST BRIGGS & STRATTON INDUSTRIAL ENGINE DEALER)

$

$

Not available

27

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$8.49

$

Usually ships in 3-7 days

0

28

Bear Cat 31605-00

METER, TACH/HOUR

$115.99

$

Usually ships in 3-7 days

0

29

Bear Cat 74516-12

WELDMENT, BELT KICKER

$

$

Not available

30

Bear Cat 75177-12

WELDMENT, ENGINE BASE

$

$

Not available

31

Bear Cat 75180-12

WELDMENT, SHIELD HEAT

$

$

Not available

32

Bear Cat 75233-12

SHIELD, HYD PUMP

$

$

Not available

33

Bear Cat 76217-12

WELDMENT, ENGINE MOUNT PLATE

$

$

Not available

Bear Cat 14323-00

WIRE ASSEMBLY, ENGINE KILL

Note: (NOT SHOWN)

$68.99

$

Usually ships in 3-7 days

0

Bear Cat 14625-00

CONNECTOR, 1/4 QD MALE

Note: (NOT SHOWN)

$2.99

$

Usually ships in 3-7 days

0

Bear Cat 14629-00

CABLE, 50" NEG (R/R)

Note: (NOT SHOWN)

$

$

Not available

17320

STRAP, 11 IN BLACK TIE

Note: (NOT SHOWN)

$

$

Not available

Bear Cat 18278-00

CABLE, BATTERY POSITIVE 66"

Note: (NOT SHOWN)

$57.99

$

Usually ships in 3-7 days

0

18605-00

WIRE, IGNITION SPLICE

Note: (NOT SHOWN)

$

$

Not available

77581-00

CONDUIT, 1" OD X 30

Note: (NOT SHOWN)

$

$

Not available
