CH 8993 H - Bear Cat 8" Chipper, 993cc Briggs & Stratton Turntable (SN: 5VJAA0000DW000001 - 5VJAA0413GW005166) Turntable CE COMPLIANT Parts Diagram

8" Chipper, 993cc Briggs & Stratton Turntable

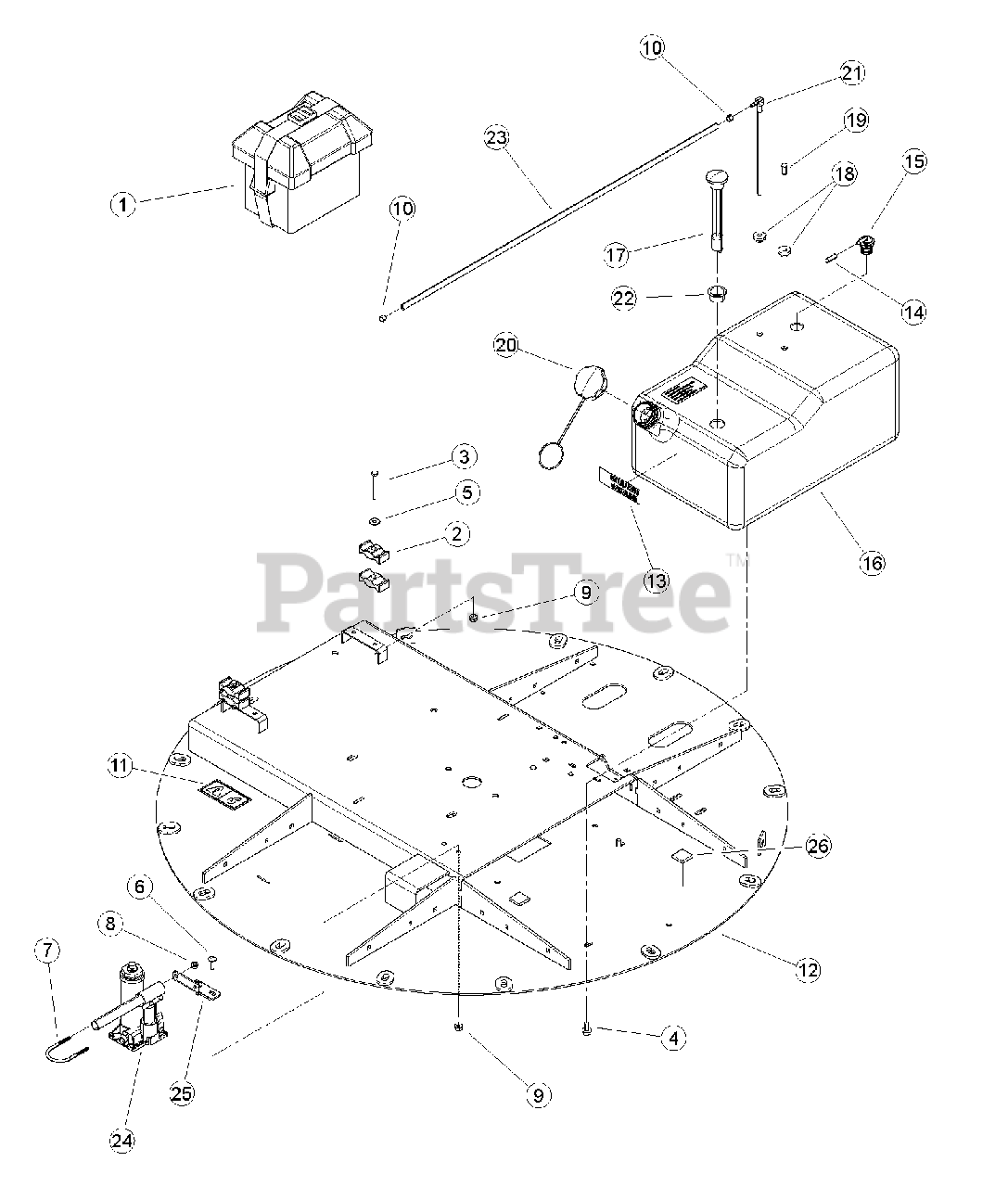

Turntable CE COMPLIANT Parts Diagram

  • Title
1

Bear Cat 12839

BOX, SMALL BATTERY

$83.99

$

Usually ships in 3-7 days

0

2

14157-00

CLAMP, PLASTIC HOSE

$

$

Not available

3

Bear Cat 15154

BOLT 5/16 X 2-1/2 G5 HX CAP ZP

$

$

Not available

4

15229-00

BOLT, 3/8 X 3/4 FLANGE NC

$

$

Not available

5

Bear Cat 15250

WASHER, 5/16" FLAT ZP

$

$

Not available

6

Bear Cat 15301

BOLT, 5/16" X 1" GR5 CRG ZP

$

$

Not available

7

Bear Cat 15768-00

U-BOLT, 1/4 X 1-1/2 PIPE

$8.99

$

Usually ships in 3-7 days

0

8

Bear Cat 15900-00

NUT, 1/4-20 NYLOCK-FLANGE

$0.99

$

Usually ships in 3-7 days

0

9

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

10

Bear Cat 16378

CLAMP, 15/32 SPRING

$3.99

$

Usually ships in 3-7 days

0

11

Bear Cat 36378-00

DECAL, LOCK

$11.99

$

Usually ships in 3-7 days

0

12

70525-12

WELDMENT, CHIPPER BASE

$

$

Not available

Bear Cat 70870-00

ASSEMBLY, FUEL TANK UNLEADED VENTED

Note: (INCLUDES ITEMS 13-22)

$436.99

$

Usually ships in 3-7 days

0

13

Bear Cat 18982-00

DECAL, UNLEADED GASOLINE

$5.49

$

Usually ships in 3-7 days

0

14

30342-00

CAP, EPDM BLACK .223 ID X 1.0 LG X .06 WALL

$

$

Not available

15

Bear Cat 32542-00

VALVE, ROLL OVER

$181.99

$

In Stock, only 1 left!

0

16

32822-00

TANK, ROTOMOLDED FUEL

$

$

Not available

17

Bear Cat 32823-00

GAUGE, FUEL LEVEL KELCH 100

$51.99

$

Usually ships in 3-7 days

0

18

Bear Cat 36689-00

GROMMET, TANK FITTING

$2.99

$

Usually ships in 3-7 days

0

19

Bear Cat 36690-00

PLUG, TANK VENT

$9.99

$

Usually ships in 3-7 days

0

20

Bear Cat 36693-00

CAP, FUEL TANK VENTED

$33.99

$

Usually ships in 3-7 days

0

21

Bear Cat 36694-00

FITTING, TANK FUEL PICK-UP TUBE

$25.99

$

Usually ships in 3-7 days

0

22

Bear Cat 36696-00

GROMMET, KELCH 100 GAUGE

$7.99

$

Usually ships in 3-7 days

0

23

Bear Cat 73079

HOSE, 38" FUEL LINE

$54.99

$

Usually ships in 3-7 days

0

24

Bear Cat 73722-12

JACK, HYDRAULIC 2 TON

$

$

Not available

25

Bear Cat 74981-12

PLATE, JACK MOUNT

$

$

Not available

26

Bear Cat 76477-00

PAD, FOAM FUEL TANK DAMPER

$20.99

$

Usually ships in 3-7 days

0
