CH 8993 H - Bear Cat 8" Chipper, 993cc Briggs & Stratton Turntable (SN: 5VJAA0000DW000001 - 5VJAA0413GW005166) Turntable NON-CE COMPLIANT Parts Diagram

8" Chipper, 993cc Briggs & Stratton Turntable

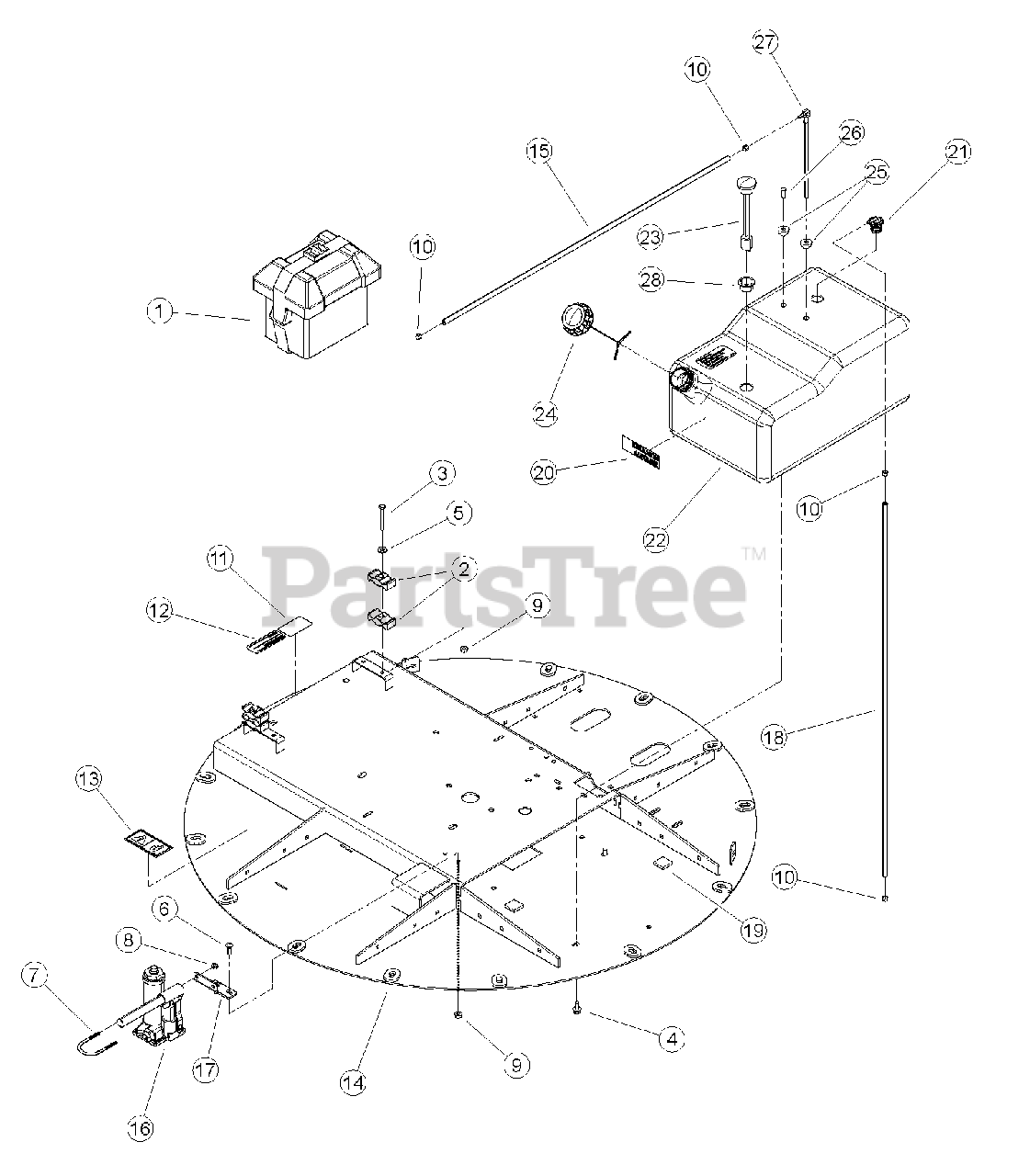

Turntable NON-CE COMPLIANT Parts Diagram

  • Title

1

Bear Cat 12839

BOX, SMALL BATTERY

$88.99

$

Usually ships in 3-7 days

0

2

14157-00

CLAMP, PLASTIC HOSE

$

$

Not available

3

Bear Cat 15154

BOLT, 5/16 X 2-1/2 G5 HEX CAP ZP

$

$

Not available

4

15229-00

BOLT, 3/8 X 3/4 FLANGE NC

$

$

Not available

5

Bear Cat 15250

WASHER, 5/16" FLAT ZP

$

$

Not available

6

Bear Cat 15301

BOLT, 5/16" X 1" GR5 CRG ZP

$

$

Not available

7

Bear Cat 15768-00

U-BOLT, 1/4 X 1-1/2 PIPE

$9.49

$

Usually ships in 3-7 days

0

8

Bear Cat 15900-00

NUT, 1/4-20 NYLOCK-FLANGE

$0.99

$

Usually ships in 3-7 days

0

9

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

10

Bear Cat 16378

CLAMP, 15/32 SPRING

$4.49

$

Usually ships in 3-7 days

0

11

Bear Cat 32154-00

DECAL, P215/70R15 LOAD RATING

$24.99

$

Usually ships in 3-7 days

0

12

32519-00

DECAL, EPA EVAP

$

$

Not available

13

Bear Cat 36378-00

DECAL, LOCK

$12.99

$

Usually ships in 3-7 days

0

14

70525-12

WELDMENT, CHIPPER BASE

$

$

Not available

15

Bear Cat 73079

HOSE, 38" FUEL LINE

$68.99

$

Usually ships in 3-7 days

0

16

Bear Cat 73722-12

JACK, HYDRAULIC 2 TON

$

$

Not available

17

Bear Cat 74981-12

PLATE, JACK MOUNT

$

$

Not available

18

Bear Cat 75057-00

HOSE, 43 INCH FUEL LINE

$73.99

$

Usually ships in 3-7 days

0

19

Bear Cat 76477-00

PAD, FOAM FUEL TANK DAMPER

$24.99

$

Usually ships in 3-7 days

0

Bear Cat 77711-00

ASSEMBLY, FUEL TANK

Note: (INCLUDES ITEMS 20-28)

$448.99

$

Usually ships in 3-7 days

0

20

Bear Cat 18982-00

DECAL, UNLEADED GASOLINE

$5.49

$

Usually ships in 3-7 days

0

21

Bear Cat 32542-00

VALVE, ROLL OVER

$190.99

$

In Stock, only 1 left!

0

22

32822-00

TANK, ROTOMOLDED FUEL

$

$

Not available

23

Bear Cat 32823-00

GAUGE, FUEL LEVEL KELCH 100

$60.99

$

Usually ships in 3-7 days

0

24

Bear Cat 32824-00

CAP, NON-VENTED EPA/CARB APPROVED

$41.99

$

Usually ships in 3-7 days

0

25

Bear Cat 36689-00

GROMMET, TANK FITTING

$3.49

$

Usually ships in 3-7 days

0

26

Bear Cat 36690-00

PLUG, TANK VENT

$10.99

$

Usually ships in 3-7 days

0

27

Bear Cat 36694-00

FITTING, TANK FUEL PICK-UP TUBE

$26.99

$

Usually ships in 3-7 days

0

28

Bear Cat 36696-00

GROMMET, KELCH 100 GAUGE

$8.49

$

Usually ships in 3-7 days

0
