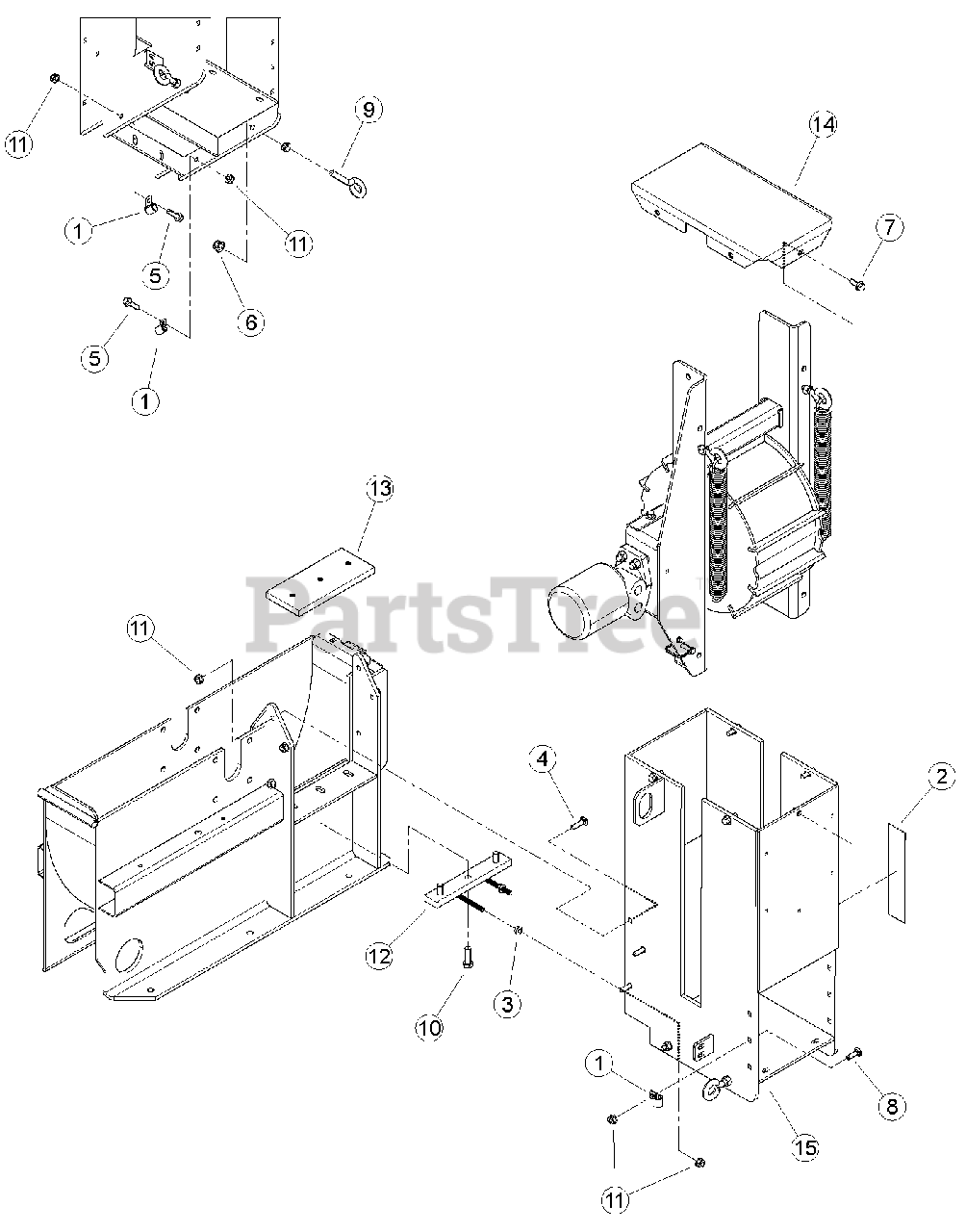

CH 8993 H - Bear Cat 8" Chipper, 993cc Briggs & Stratton Turntable (SN: 5VJAA0418GW005194 & Above) Feed Roller Housing Parts Diagram

8" Chipper, 993cc Briggs & Stratton Turntable

Feed Roller Housing Parts Diagram

  • Title

1

14048-00

CLAMP, 9/16 COATED

$

$

Not available

2

Bear Cat 14302-00

DECAL, CHIPPER ENGAGEMENT

$13.99

$

Usually ships in 3-7 days

0

3

Bear Cat 15051

NUT, 3/8" SERRATED FLANGE NC ZP

$

$

Not available

4

15058

BOLT, 3/8 X 1-1/2" GR5 CRG NC ZP

$

$

Not available

5

Bear Cat 15109-00

BOLT, 3/8 X 1-1/4 FLANGE NC

$2.49

$

Usually ships in 3-7 days

0

6

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

7

15163-00

BOLT, 3/8 X 1 FLANGE NC

$

$

Not available

8

15378

BOLT, 3/8 X 1-1/4"GR5 CRG NC ZP

$

$

Not available

9

Bear Cat 15502

EYEBOLT, 1/2 X 2" ZP

$31.99

$

Usually ships in 3-7 days

0

10

15855-00

BOLT, 1/2 X 1-1/2 GR8 NC ZP HEX HD

$

$

Not available

11

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

12

Bear Cat 71050-12

WELDMENT, BLOCK ADJUSTOR

$

$

Not available

13

Bear Cat 71132-12

PLATE, CHIPPER BOTTOM

$

$

Not available

14

Bear Cat 77151-35

WELDMENT, TOP ROLLER COVER

$

$

Not available

15

Bear Cat 77152-35

WELDMENT, ROLLER SUPPORT

$

$

Not available
