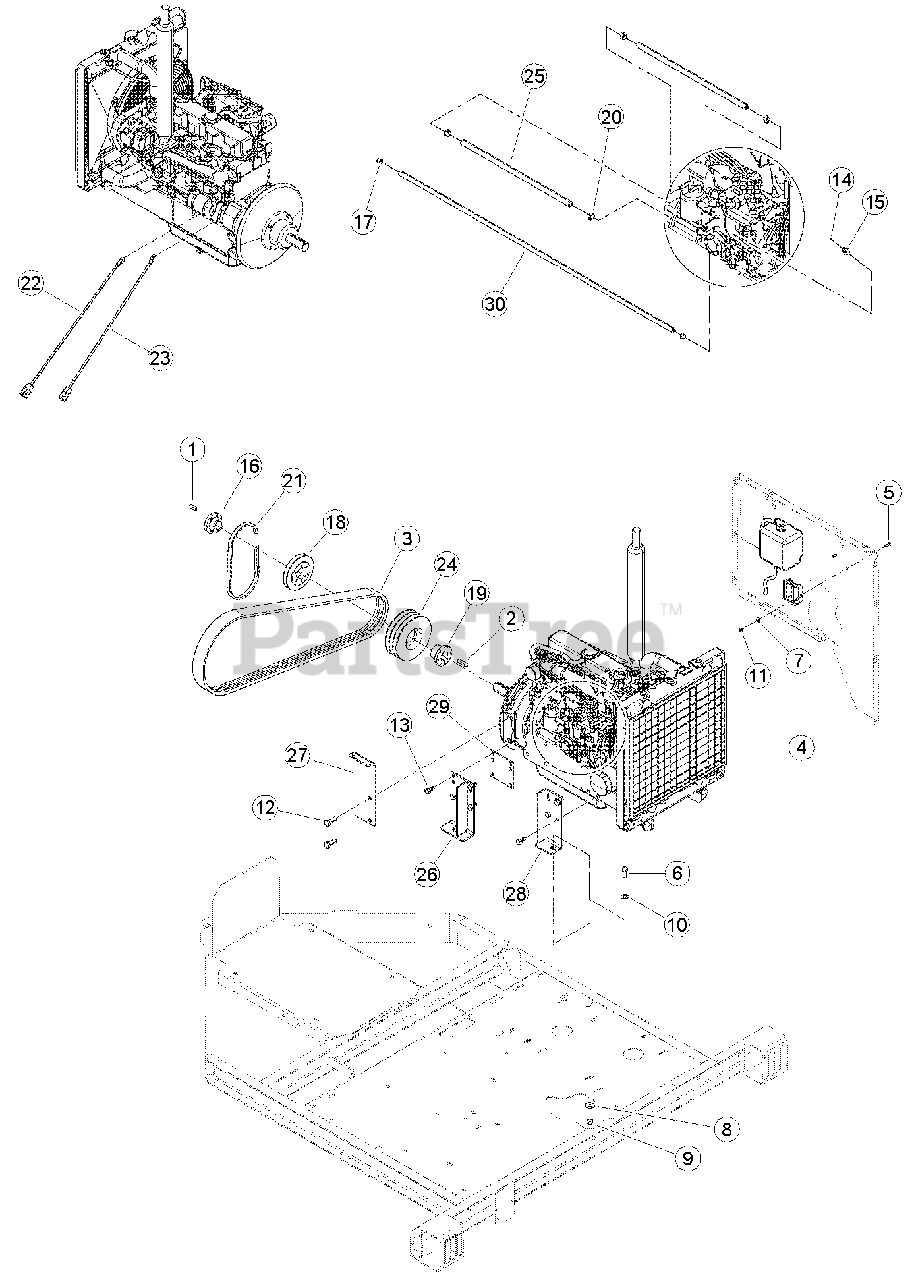

CH 922 DH - Bear Cat 9" Chipper, 2.2 L Diesel Kubota (SN: 5VJAA0000DW000001 - 5VJAA0010FW004657) Engine Parts Diagram

9" Chipper, 2.2 L Diesel Kubota

Engine Parts Diagram

  • Title

1

0122-0231-00

KEY, 3/8 SQUARE X 1-1/4 LONG

$

$

Not available

2

0122-0236-00

KEY, 3/8 SQUARE X 1-3/4 LONG

$

$

Not available

3

Bear Cat 12273

BELT, 3B90 BANDED

$210.99

$

Usually ships in 3-7 days

0

4

12274

ENGINE, 2203 KUBOTA DIESEL

$

$

Not available

5

15001

BOLT, 1/4 X 3/4 HEX HD GR5 ZP

$

$

Not available

6

15013

BOLT, 1/2 X 1-1/4 HEX HD GR5 ZP

$

$

Not available

7

15030

WASHER, 1/4 FLAT ZP

$

$

Not available

8

Bear Cat 15034

WASHER, 1/2 FLAT ZP

$0.99

$

Usually ships in 3-7 days

0

9

Bear Cat 15049

NUT, 1/2 CENTERLOCK GRB ZP

$0.99

$

Usually ships in 3-7 days

0

10

Bear Cat 15097

WASHER, 1/2 SAE FLAT ZP

$0.99

$

Usually ships in 3-7 days

0

11

Bear Cat 15355

NUT, 1/4 NE NYLOCK ZP

$

$

Not available

12

Bear Cat 15578

BOLT, M14-1.5 X 20 HEX HD GR8.8 ZP

$10.99

$

Usually ships in 3-7 days

0

13

BOLT, M12-1.25 X 25 HEX HD GR8.8 ZP (WAS 15579, REPLACED AND SUPERSEDED. FOR SERVICE ORDER PN 15961-00)

$

$

Not available

14

Bear Cat 15680-00

SCREW, #8-32 X 3/16 KNR CUP PT

$1.49

$

Usually ships in 3-7 days

0

15

Bear Cat 15769-00

PIN, 1/4 BOWDEN

$14.99

$

Usually ships in 3-7 days

0

16

Bear Cat 16327

BUSHING, SDS 1-7/16

$71.99

$

Usually ships in 3-7 days

0

17

Bear Cat 16378

CLAMP, 15/32 SPRING

$4.49

$

Usually ships in 3-7 days

0

18

Bear Cat 16482

SHEAVE, 1B5.2 SDS

$91.99

$

Usually ships in 3-7 days

0

19

Bear Cat 16552

BUSHING, SD 1-7/16

$60.99

$

Usually ships in 3-7 days

0

20

Bear Cat 16806

CLAMP, 9/16 SPRING

$

$

Not available

21

Bear Cat 18531-00

BELT, BX30
(Superseded to 32930-00)

$44.99

$

Usually ships in 3-7 days

0

22

Bear Cat 31256-00

CABLE, 72 IN. POSITIVE BATTERY

$

$

Not available

23

Bear Cat 31374-00

CABLE, 72 IN. NEGATIVE BATTERY

$

$

Not available

24

Bear Cat 36268-00

SHEAVE, 3B6.8 SD

$177.99

$

Usually ships in 3-7 days

0

25

Bear Cat 71696

HOSE, 15 IN. FUEL LINE

$46.99

$

Usually ships in 3-7 days

0

26

Bear Cat 72639-12

WELDMENT, ENGINE MOUNT

$

$

Not available

27

Bear Cat 72642-12

ANGLE, SPRING ANCHOR

$

$

Not available

28

Bear Cat 72686-12

WELDMENT, FRONT ENGINE MOUNT

$

$

Not available

29

Bear Cat 72744-12

PLATE, MOUNT SPACER

$

$

Not available

30

Bear Cat 73079

HOSE, 38 IN. FUEL LINE

$68.99

$

Usually ships in 3-7 days

0
