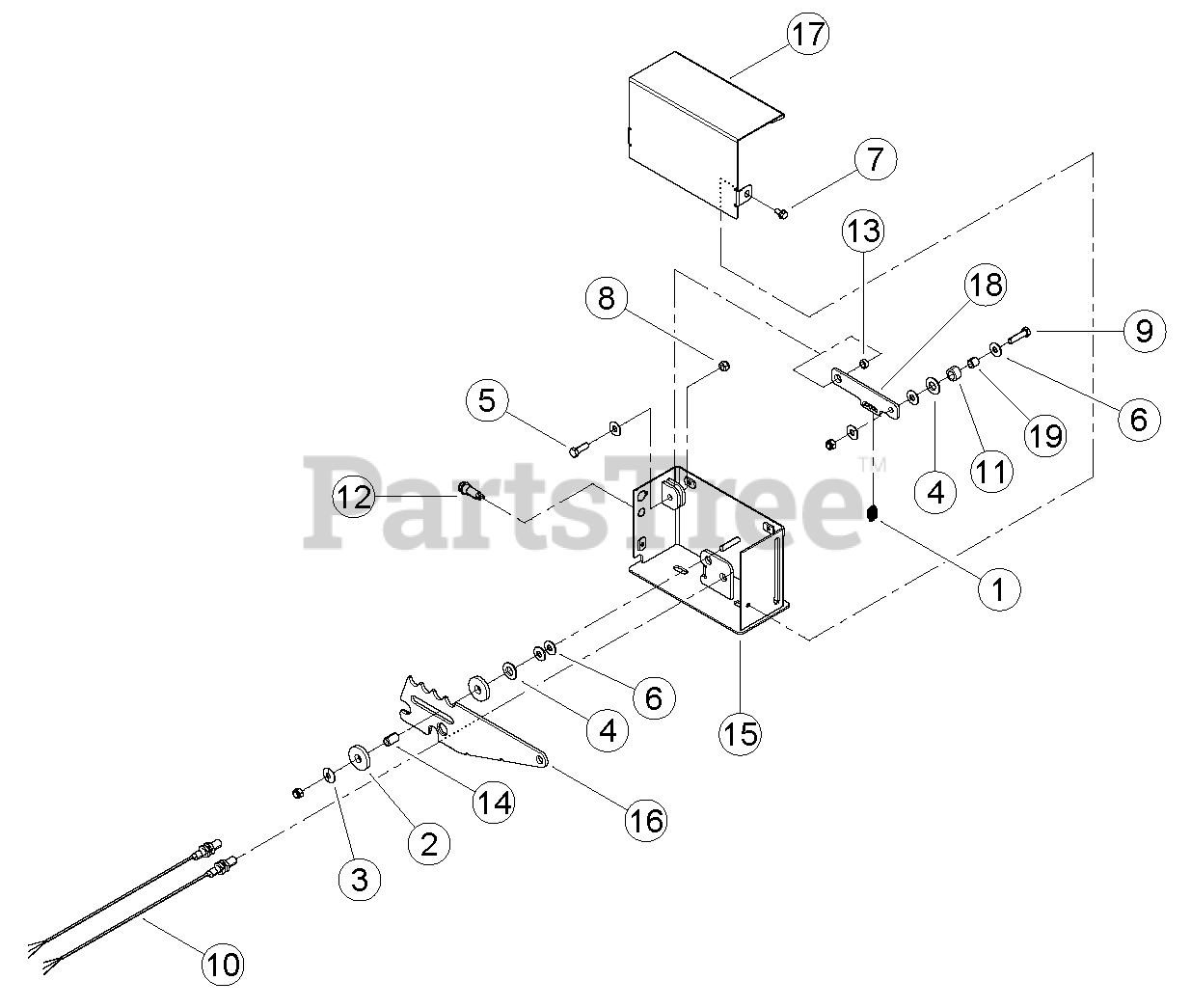

CH 922 DH - Bear Cat 9" Chipper, 2.2 L Diesel Kubota (SN: 5VJAA0000DW000001 - 5VJAA0010FW004657) Switch Box (NON-CE COMPLIANT) Parts Diagram

9" Chipper, 2.2 L Diesel Kubota

Switch Box (NON-CE COMPLIANT) Parts Diagram

  • Title

1

Bear Cat 12620

SPRING, CONTROL BAR

$24.99

$

Usually ships in 3-7 days

0

2

Bear Cat 12621

WASHER, UHM SPACER .515 ID X 1.50 OD

$9.49

$

Usually ships in 3-7 days

0

3

Bear Cat 12622

WASHER, SPRING

$4.99

$

Usually ships in 3-7 days

0

4

Bear Cat 15097

WASHER, 1/2 SAE FLAT ZP

$

$

Not available

5

Bear Cat 15219

BOLT, 5/16 X 1 HHCS GR5 NC ZP

$

$

Not available

6

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

7

15344

BOLT, 1/4 X 1/2 SERR FLANGE GR5 ZP

$

$

Not available

8

Bear Cat 15356

NUT, 5/16 NYLOCK

$

$

Not available

9

Bear Cat 15436

BOLT, 5/16 X 1-1/4 HHCS GR5 NC ZP

$

$

Not available

10

Bear Cat 18472-00

SENSOR, PROXIMITY (SERVICE REPLACEMENT PART)
(Superseded to 32108-00)

$181.99

$

In Stock, only 1 left!

0

11

Bear Cat 18548-00

ROLLER, NYLON .750 OD X .502 ID X .440

$3.99

$

Usually ships in 3-7 days

0

12

Bear Cat 36356-00

LED, TRI-COLOR 12V 3-TERMINAL BASE

$78.99

$

Usually ships in 3-7 days

0

13

Bear Cat 69126

SPACER, IDLER PIVOT

$4.49

$

Usually ships in 3-7 days

0

14

Bear Cat 73064

SPACER, .50 X .775

$16.99

$

Usually ships in 3-7 days

0

15

Bear Cat 77129-00

WELDMENT, SWITCH BOX

$301.99

$

Usually ships in 3-7 days

0

16

Bear Cat 75140-12

BAR, SWITCH CONTROL

$51.99

$

Usually ships in 3-7 days

0

17

COVER, CONTROL BOX (WAS 75141-12, REPLACED AND SUPERSEDED. FOR SERVICE ORDER PN 70006-00)

$

$

Not available

18

Bear Cat 75184-12

LINK, DETENT

$26.99

$

Usually ships in 3-7 days

0

19

Bear Cat 75185-00

SPACER, .50 OD X .35 ID X .47

$11.99

$

Usually ships in 3-7 days

0
