CH 922 DH - Bear Cat 9" Chipper, 2.2 L Diesel Kubota (SN: 5VJAA0016AW002226 - 5VJAA0013AW002734) Base Assembly (Part 1) Parts Diagram

9" Chipper, 2.2 L Diesel Kubota

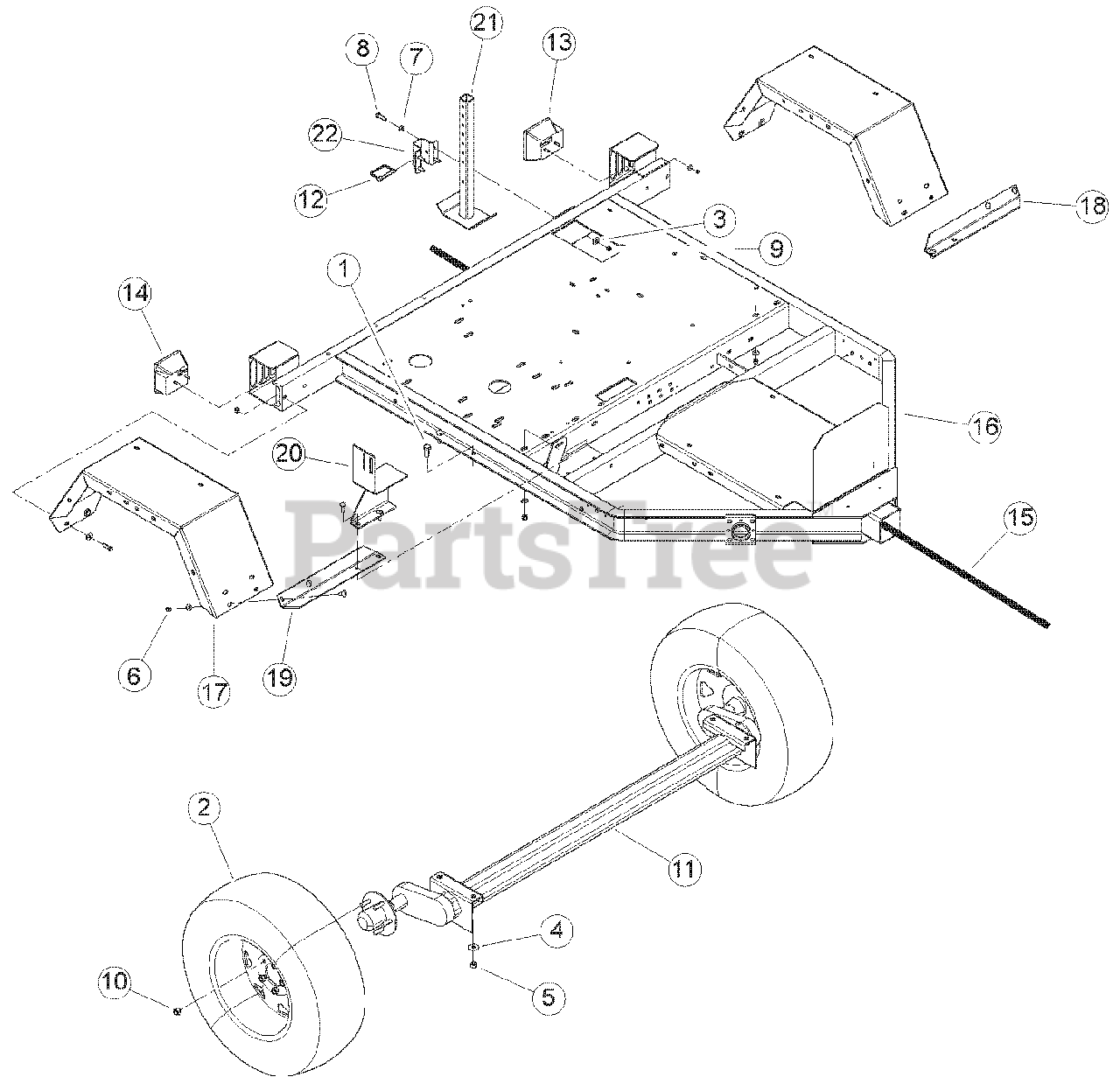

Base Assembly (Part 1) Parts Diagram

  • Title

1

0103-0792-00

BOLT, 1/2 X 2-1/4 HEX HD GR5 ZP

$

$

Not available

2

Bear Cat 12125

ASSEMBLY, 15 IN. TIRE & WHEEL

$556.99

$

Usually ships in 3-7 days

0

3

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

4

Bear Cat 15034

WASHER, 1/2 FLAT ZP

$

$

Not available

5

Bear Cat 15049

NUT, 1/2 CENTERLOCK GRB ZP

$

$

Not available

6

15057

BOLT, 3/8 X 1 CRG GR5 NC ZP

$

$

Not available

7

15260

WASHER, 3/8 SAE FLAT ZP

$

$

Not available

8

15364

BOLT, 3/8 X 1-1/4 HEX HD GR5 ZP

$

$

Not available

9

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

10

Bear Cat 15527

NUT, 1/2 -20 WHEEL

$

$

Not available

11

Bear Cat 16764

AXLE, 3000 LB. TORSION

$1281.99

$

Usually ships in 3-7 days

0

12

16808

PIN, 3/8 X 2-3/4 SNAP

$

$

Not available

13

Bear Cat 16903

LIGHT, LH TAIL

$36.99

$

Usually ships in 3-7 days

0

14

Bear Cat 16904

LIGHT, RH TAIL

$35.99

$

Usually ships in 3-7 days

0

15

Bear Cat 16905

HARNESS, TRAILER LIGHT

$57.99

$

Usually ships in 3-7 days

0

16

Bear Cat 71508

WELDMENT, CHIPPER TRAILER

$

$

Not available

17

Bear Cat 71534

FENDER, HEAVY DUTY

$273.99

$

Usually ships in 3-7 days

0

18

Bear Cat 71545

ANGLE, FENDER MOUNT LH

$

$

Not available

19

Bear Cat 71587

ANGLE, FENDER MOUNT RH

$

$

Not available

20

Bear Cat 72668-12

WELDMENT, BELT GUIDE

$

$

Not available

21

Bear Cat 73449-12

WELDMENT, REAR STABILIZER

$

$

Not available

22

Bear Cat 73450-12

GUIDE, TRAILER SUPPORT

$

$

Not available

Bear Cat 71707

CONDUIT, 1/4 X 158 WIRE

Note: (NOT SHOWN)

$37.99

$

Usually ships in 3-7 days

0

Bear Cat 71708

CONDUIT, 1/4 X 47 WIRE

Note: (NOT SHOWN)

$34.99

$

Usually ships in 3-7 days

0
