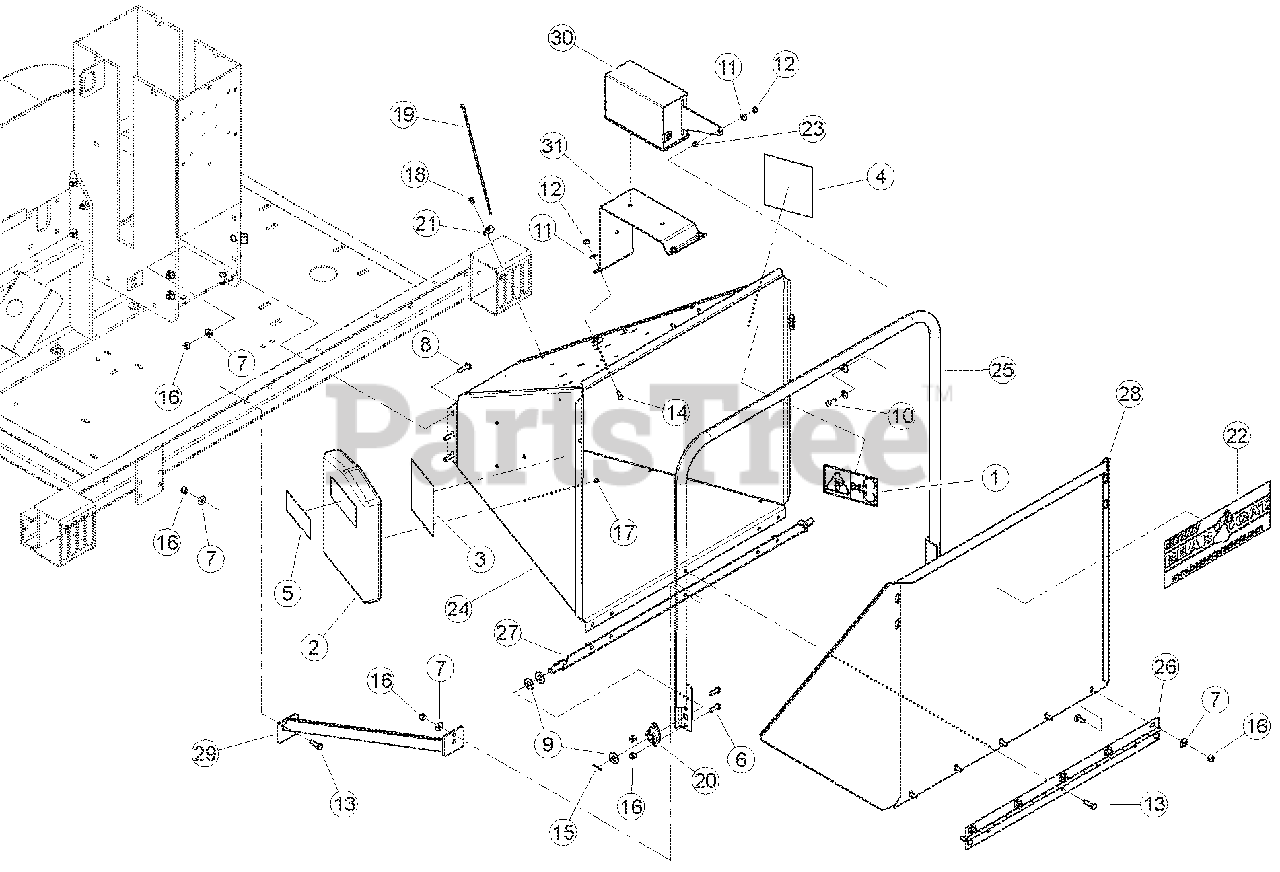

CH 922 DH - Bear Cat 9" Chipper, 2.2 L Diesel Kubota (SN: 5VJAA0016AW002226 - 5VJAA0013AW002734) Chute Assembly (NON-CE COMPLIANT) Parts Diagram

9" Chipper, 2.2 L Diesel Kubota

Chute Assembly (NON-CE COMPLIANT) Parts Diagram

  • Title

1

0111-0058-00

RIVET, 1/4 X 3/4 ST POP

$

$

Not available

2

Bear Cat 12175

DECAL, BLADE DANGER ISO

$7.49

$

In Stock, only 1 left!

0

3

Bear Cat 12250

DECAL, MAINTENANCE ISO

$3.99

$

Usually ships in 3-7 days

0

4

Bear Cat 12614

CONTAINER, INSTRUCTION MANUAL
(Superseded to 77113-00)

$108.99

$

Usually ships in 3-7 days

0

5

Bear Cat 12747

DECAL, FEED POSITION

$7.99

$

Usually ships in 3-7 days

0

6

Bear Cat 12748

DECAL, FEED POSITION

$10.99

$

Usually ships in 3-7 days

0

7

Bear Cat 14942-00

DECAL, MUTILINGUAL MANUAL

$38.99

$

Usually ships in 3-7 days

0

8

Bear Cat 15006

BOLT, 3/8 X 1 HEX HD GR5 ZP

$0.99

$

Usually ships in 3-7 days

0

9

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

10

15058

BOLT, 3/8 X 1-1/2 CRG GR5 ZP

$

$

Not available

11

15129

WASHER, 5/8 SAE FLAT ZP

$

$

Not available

12

Bear Cat 15219

BOLT, 5/16 X 1 HHCS GR5 NC ZP

$

$

Not available

13

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

14

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$0.99

$

Usually ships in 3-7 days

0

15

15364

BOLT, 3/8 X 1-1/4 HEX HD GR5 ZP

$

$

Not available

16

Bear Cat 15367

BOLT, 5/16 X 3/4 CRG GR5 NC ZP

$

$

Not available

17

Bear Cat 15375

PIN, 1/8 X 1.00 ZP COTTER

$

$

Not available

18

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$0.99

$

Usually ships in 3-7 days

0

19

15497

RIVET, 1/4 X 1/2 DOME HD BLIND SS

$

$

Not available

20

17320

STRAP, 11 IN. BLACK TIE

$

$

Not available

21

Bear Cat 17897

BEARING, SIDE FLNG MOUNT 5/8"

$36.99

$

Usually ships in 3-7 days

0

22

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$8.49

$

Usually ships in 3-7 days

0

23

Bear Cat 69126

SPACER, IDLER PIVOT

$

$

Not available

24

WELDMENT, BIG CHIPPER CHUTE (REPLACED AND SUPERSEDED. FOR SERVICE ORDER PN 77126-00)

$

$

Not available

25

Bear Cat 71352

WELDMENT, CONTROL ARM

$

$

Not available

26

Bear Cat 71492

HINGE, EXTENSION TRAY

$

$

Not available

27

Bear Cat 71526

WELDMENT, CONTROL PIVOT

$

$

Not available

28

WELDMENT, CHUTE EXTENSION TRAY (REPLACED AND SUPERSEDED. FOR SERVICE ORDER PN 77127-00)

$

$

Not available

29

Bear Cat 72696-12

WELDMENT, CHUTE SUPPORT

$

$

Not available

30

Bear Cat 75186-00

ASSEMBLY, SWITCH BOX

$541.99

$

Usually ships in 3-7 days

0

31

Bear Cat 75207-12

MOUNT, SWITCH BOX

$78.99

$

Usually ships in 3-7 days

0
