CH 922 DH - Bear Cat 9" Chipper, 2.2 L Diesel Kubota (SN: 5VJAA0017BW002771 - 5VJAA0016CW003752) Access Cover Parts Diagram

9" Chipper, 2.2 L Diesel Kubota

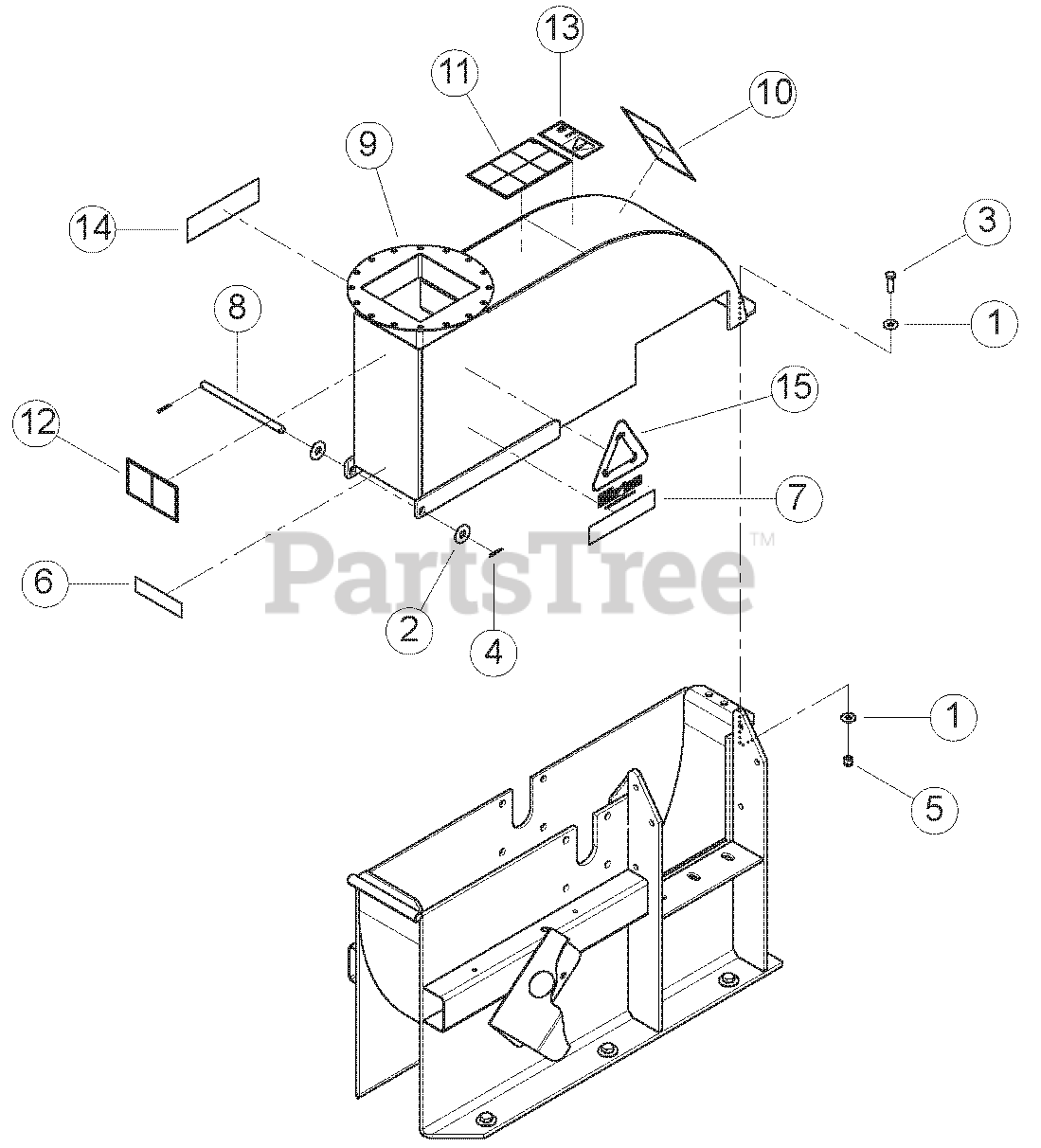

Access Cover Parts Diagram

  • Title

1

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

2

Bear Cat 15034

WASHER, 1/2 FLAT ZP

$

$

Not available

3

15364

BOLT, 3/8 X 1-1/4 HEX HD GR5 ZP

$

$

Not available

4

Bear Cat 15375

PIN, 1/8 X 1 COTTER

$

$

Not available

5

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

6

Bear Cat 31890-00

DECAL, ATLANTIC BRIDGE LTD INFO (CE COMPLIANT MODELS)

$9.99

$

Usually ships in 3-7 days

0

7

Bear Cat 36040-00

DECAL, MODEL CH911DH

$12.99

$

Usually ships in 3-7 days

0

7

Bear Cat 36041-00

DECAL, MODEL CH922DH

$16.99

$

Usually ships in 3-7 days

0

8

Bear Cat 71329

SHAFT, CHIPPER TOP PIVOT

$48.99

$

Usually ships in 3-7 days

0

9

Bear Cat 77123-00

ASSEMBLY, CHIPPER TOP HOUSING, SERVICE PART

Note: INCLUDES ITEMS 10 - 15

$

$

Not available

10

Bear Cat 12169

DECAL, KNIFE ACCESS ISO

$13.99

$

Usually ships in 3-7 days

0

11

Bear Cat 12172

DECAL, OPERATING INSTRUCTIONS ISO

$7.49

$

Usually ships in 3-7 days

0

12

Bear Cat 12173

DECAL, DISCHARGE ISO

$3.99

$

Usually ships in 3-7 days

0

13

Bear Cat 12250

DECAL, MAINTENANCE ISO

$3.99

$

Usually ships in 3-7 days

0

14

Bear Cat 17913

DECAL, ECHO BEARCAT 6.82 X 1.90

$6.49

$

Usually ships in 3-7 days

0

15

Bear Cat 31391-00

DECAL, CHIP IT

$13.99

$

Usually ships in 3-7 days

0
