CH 9540 H - Bear Cat 9" Chipper, 540cc PTO Hydraulic Feed (SN: D00001 - G08143) Access Cover Parts Diagram

9" Chipper, 540cc PTO Hydraulic Feed

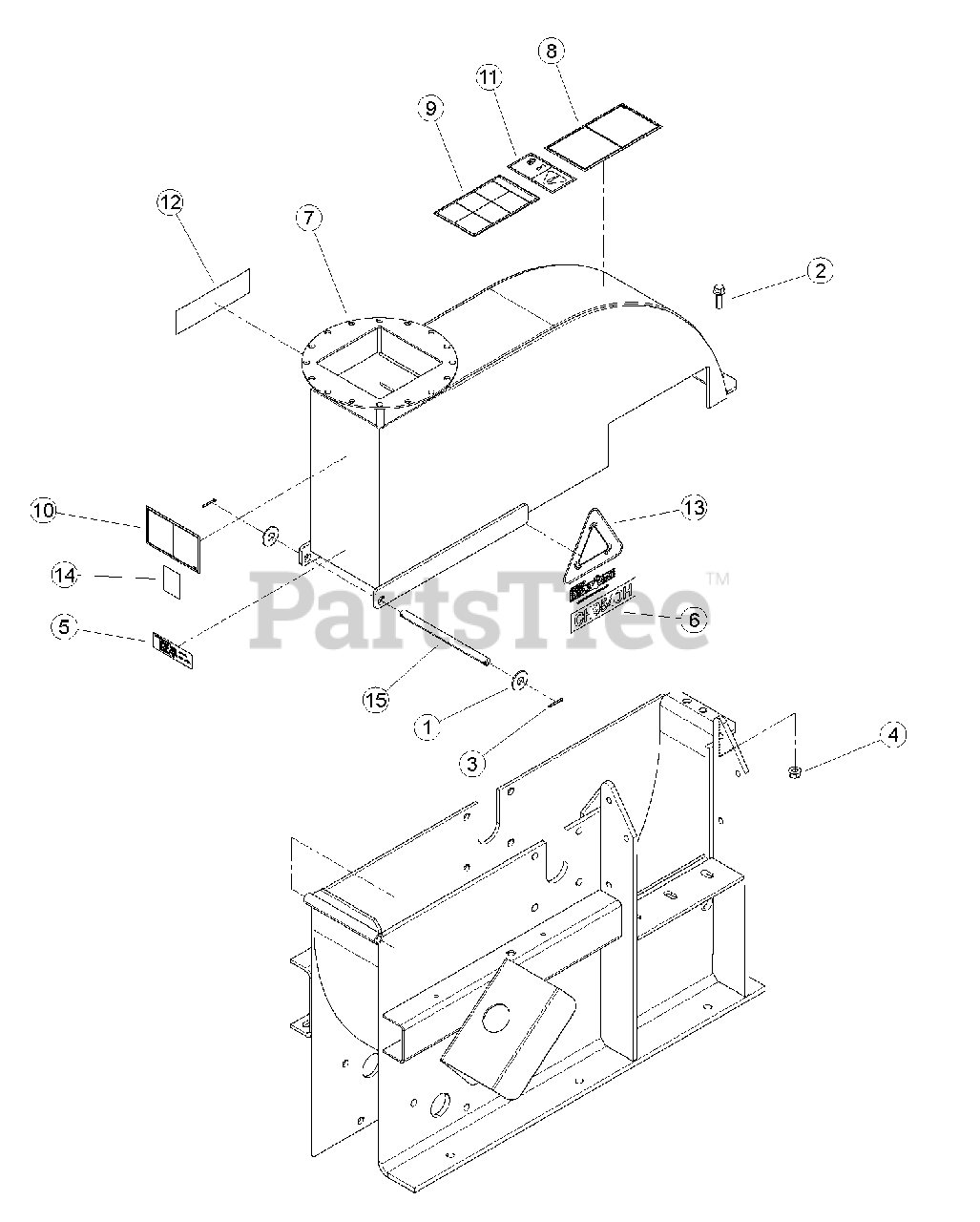

Access Cover Parts Diagram

  • Title

1

Bear Cat 15034

WASHER, 1/2" FLAT ZP

$

$

Not available

2

Bear Cat 15109-00

BOLT, 3/8 X 1-1/4 FLANGE NC

$2.49

$

Usually ships in 3-7 days

0

3

Bear Cat 15375

PIN, 1/8 X 1.00 ZP COTTER

$

$

Not available

4

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

5

Bear Cat 31890-00

DECAL, ATLANTIC BRIDGE LTD INFO (CE COMPLIANT ONLY)

$9.99

$

Usually ships in 3-7 days

0

6

Bear Cat 36038-00

DECAL, MODEL CH9540H

$12.99

$

Usually ships in 3-7 days

0

6

Bear Cat 36039-00

DECAL, MODEL CHF9540H

$7.99

$

Usually ships in 3-7 days

0

7

Bear Cat 71295-00

ASSEMBLY, CHIPPER COVER W/ DECALS

Note: (INCLUDES ITEMS 8-14)

$

$

Not available

8

Bear Cat 12169

DECAL, KNIFE ACCESS ISO

$13.99

$

Usually ships in 3-7 days

0

9

Bear Cat 12172

DECAL, OPERATING INSTRUCTIONS ISO

$7.49

$

Usually ships in 3-7 days

0

10

Bear Cat 12173

DECAL, DISCHARGE ISO

$3.99

$

Usually ships in 3-7 days

0

11

Bear Cat 12250

DECAL, MAINTENANCE ISO

$3.99

$

Usually ships in 3-7 days

0

12

Bear Cat 17913

DECAL, ECHO BEARCAT 6.82 X 1.90

$6.49

$

Usually ships in 3-7 days

0

13

Bear Cat 31391-00

DECAL, CHIP IT

$13.99

$

Usually ships in 3-7 days

0

14

Bear Cat 32392-00

DECAL, ECHO BEARCAT QR CODE

$2.99

$

Usually ships in 3-7 days

0

15

Bear Cat 71329

SHAFT, CHIPPER TOP PIVOT

$48.99

$

Usually ships in 3-7 days

0
