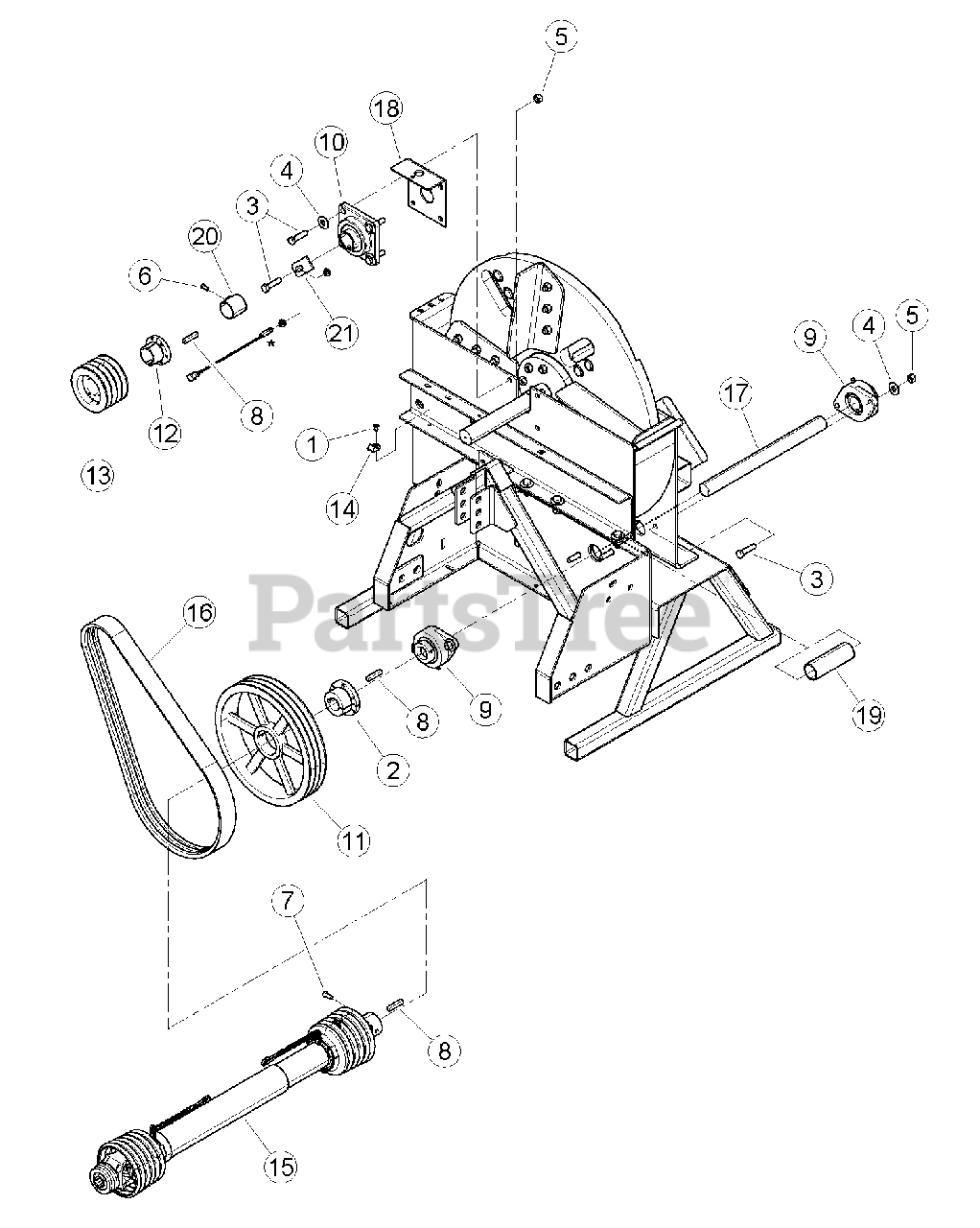

CH 9540 H - Bear Cat 9" Chipper, 540cc PTO Hydraulic Feed (SN: D00001 - G08143) Drive Assembly - Front (SN: G02637 AND BELOW)) Parts Diagram

9" Chipper, 540cc PTO Hydraulic Feed

Drive Assembly - Front (SN: G02637 AND BELOW)) Parts Diagram

  • Title
1

0111-0058-00

RIVET, 1/4 X 3/4 ST POP

$

$

Not available

2

Bear Cat 12441

BUSHING, SK 1-1/2

$

$

Not available

3

Bear Cat 15015

BOLT, 1/2 X 2 HEX GR5 ZP

$

$

Not available

4

Bear Cat 15034

WASHER, 1/2 FLAT ZP

$

$

Not available

5

Bear Cat 15049

NUT, 1/2 CENTERLOCK GRB ZP

$

$

Not available

6

Bear Cat 15131

SCREW, 5/16-18 X 5/8 SQ HD SET

$

$

Not available

7

Bear Cat 15256

SCREW, 3/8 X 3/4 SQ HD SET ZP

$

$

Not available

8

Bear Cat 15440

KEY, 3/8 SQUARE X 2 LONG PLAIN

$4.99

$

In Stock, only 2 left!

0

9

Bear Cat 16004

BEARING,2 BOLT FLANGE 1-1/2 BORE

$82.99

$

Usually ships in 3-7 days

0

10

Bear Cat 16553

BEARING, 1-3/4 4 BOLT FLANGE

$

$

Not available

11

Bear Cat 16581

SHEAVE, 3B13.6 SK

$

$

Not available

12

Bear Cat 16615

BUSHING, SD 1-3/4

$

$

Not available

13

17348

SHEAVE, 4BQ4.8 SD

$

$

Not available

14

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$7.99

$

Usually ships in 3-7 days

0

15

Bear Cat 32219-00

DRIVELINE, 33.9/47.6 1-1/2 RND/1-3/8 6 SPL
(Superseded to 71592-00)

$773.99

$

Usually ships in 3-7 days

0

16

Bear Cat 32252-00

BELT, 3RB64
(Superseded to 34400-00)

$177.99

$

Usually ships in 3-7 days

0

17

Bear Cat 71228

JACKSHAFT, CHIPPER DRIVE

$94.99

$

In Stock, only 1 left!

0

18

Bear Cat 71325

WELDMENT, LEFT BEARING BRACKET

$

$

Not available

19

Bear Cat 71409

SHIELD, SHAFT

$28.99

$

Usually ships in 3-7 days

0

20

Bear Cat 73354-12

WELDMENT, SPACER

$

$

Not available

21

Bear Cat 75951-12

BRACKET, SENSOR SHORT MOUNT

$

$

Not available

17320

STRAP, 11 INCH BLACK TIE

Note: (NOT SHOWN)

$

$

Not available

Bear Cat 32108-00

SENSOR, M12 PNP PROXIMITY

Note: (REPLACEMENT PART)

$181.99

$

In Stock, only 1 left!

0
