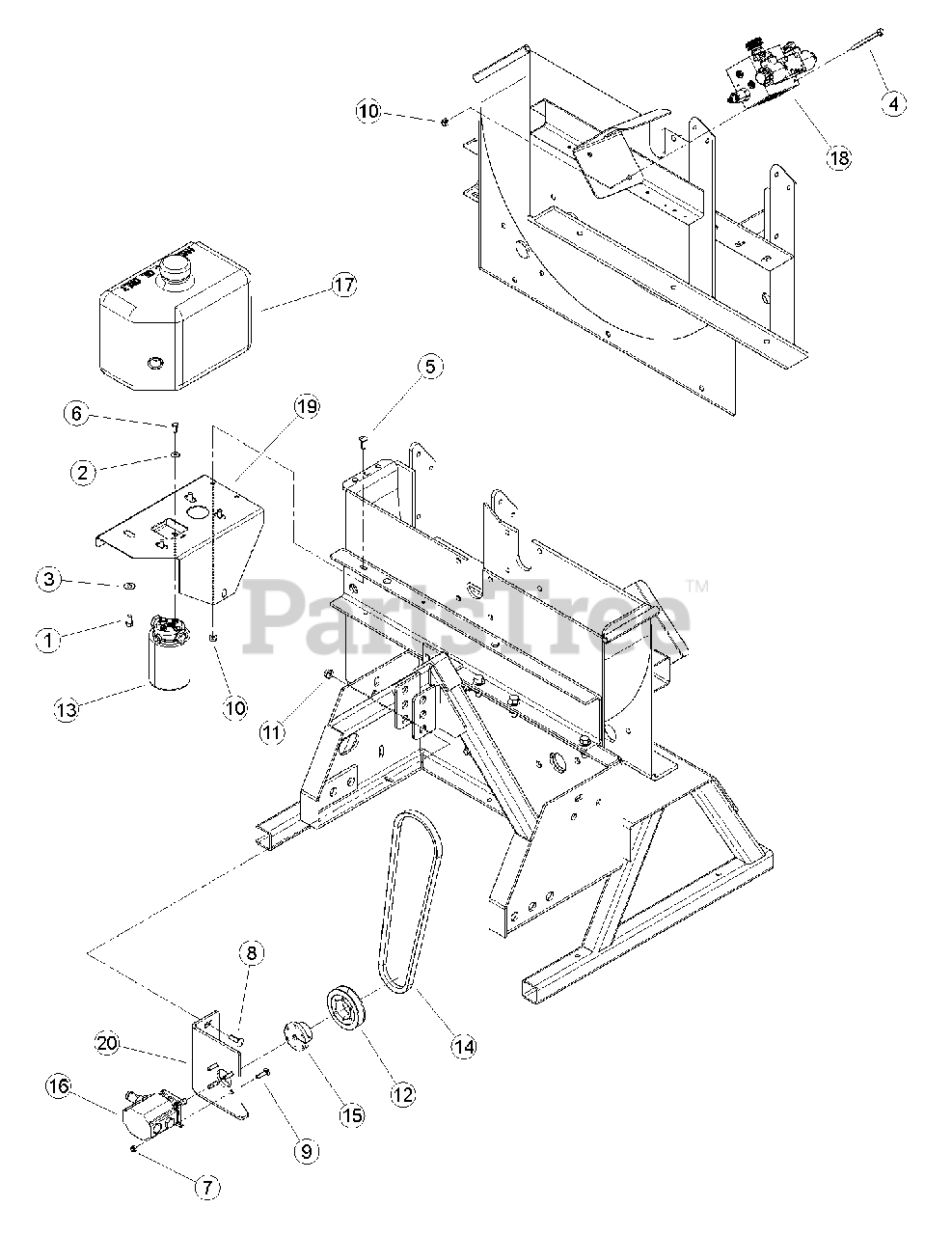

CH 9540 H - Bear Cat 9" Chipper, 540cc PTO Hydraulic Feed (SN: D00001 - G08143) Hydraulic Assembly (SN: G03555 - G08143) Parts Diagram

9" Chipper, 540cc PTO Hydraulic Feed

Hydraulic Assembly (SN: G03555 - G08143) Parts Diagram

  • Title
1

Bear Cat 15005

BOLT, 3/8 X 3/4 GR5 HEX CAPSCREW ZP

$

$

Not available

2

15030

WASHER, 1/4" FLAT ZP

$

$

Not available

3

Bear Cat 15031

WASHER, 3/8" FLAT ZP

$

$

Not available

4

15148-00

BOLT, 5/16 X 3-1/2 SERRATED FLANGE NC

$

$

Not available

5

Bear Cat 15301

BOLT, 5/16 X 1" GR5 CRG ZP

$

$

Not available

6

15343

BOLT, 1/4 X 5/8" HHCS GR5 ZP

$

$

Not available

7

Bear Cat 15356

NUT, 5/16" NE NYLOCK ZP

$

$

Not available

8

15378

BOLT, 3/8 X 1-1/4" GR5 CRG NC ZP

$

$

Not available

9

Bear Cat 15398

BOLT, 5/16 X 1-1/4" GR5 CRG ZP

$

$

Not available

10

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

11

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

12

Bear Cat 16499

SHEAVE, 1B3.6 SH

$66.99

$

Usually ships in 3-7 days

0

13

Bear Cat 16588

ASSEMBLY, HYDRAULIC FILTER

$112.99

$

Usually ships in 3-7 days

0

14

Bear Cat 18277-00

BELT, BX44

$54.99

$

Usually ships in 3-7 days

0

15

Bear Cat 18597-00

BUSHING, SH 1/2"

$58.99

$

Usually ships in 3-7 days

0

16

Bear Cat 31671-00

PUMP, 2 STAGE CW HI/LO 0.605 DISP.

$639.99

$

Usually ships in 3-7 days

0

17

Bear Cat 36322-00

TANK, HYDRAULIC

$356.99

$

Usually ships in 3-7 days

0

18

Bear Cat 71628-00

ASSEMBLY, HYDRAULIC FEED FLOW VALVE W/ PS

$2142.99

$

Usually ships in 3-7 days

0

19

71818-12

WELDMENT, HYDRAULIC TANK BRACKET

$

$

Not available

20

Bear Cat 75962-12

BRACKET, MOUNT HYDRAULIC PUMP

$

$

Not available
