CH 9540 H - Bear Cat 9" Chipper, 540cc PTO Hydraulic Feed (SN: G08206 & Above) Drive Assembly (B) (Part 2) Parts Diagram

9" Chipper, 540cc PTO Hydraulic Feed

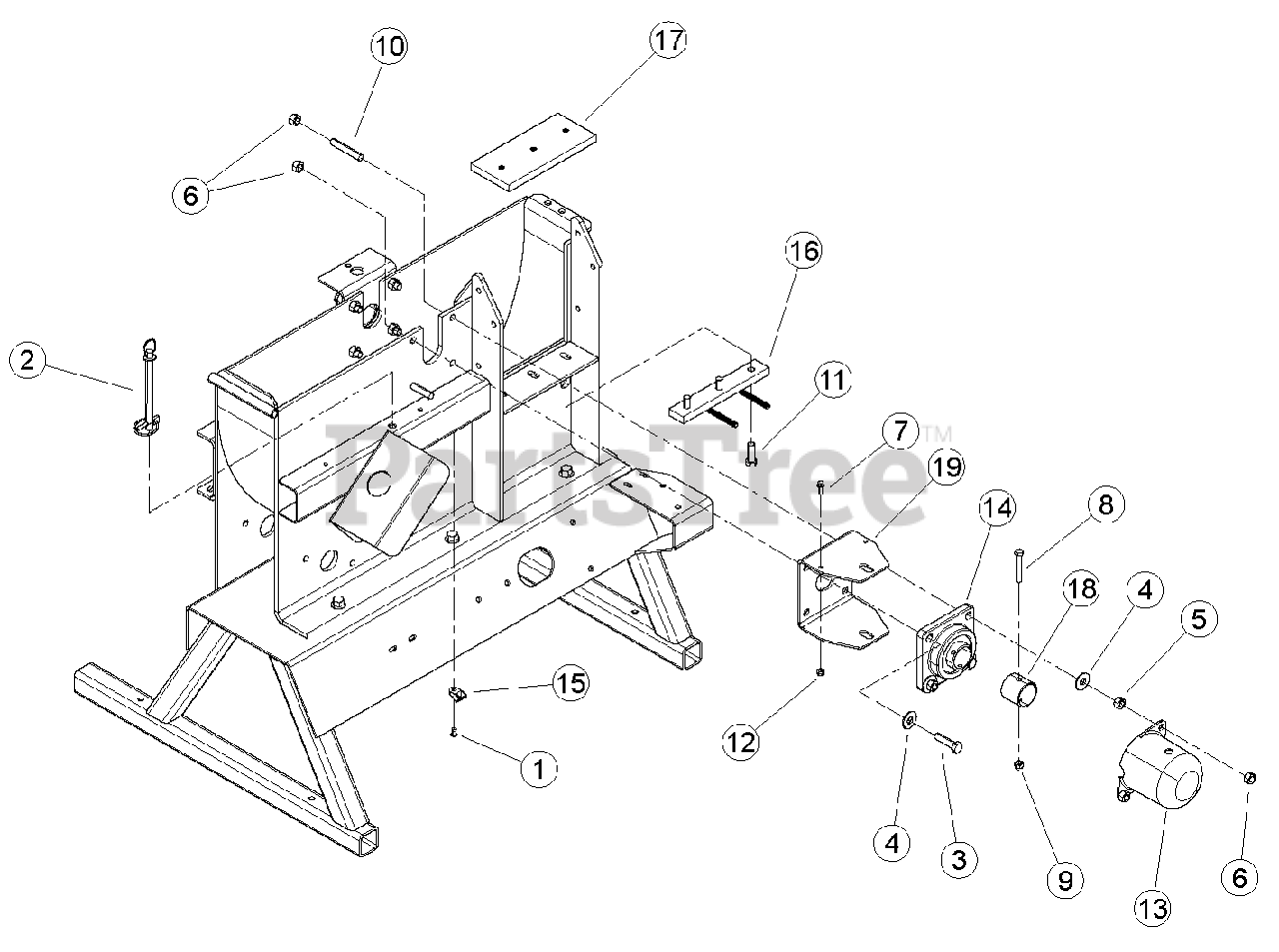

Drive Assembly (B) (Part 2) Parts Diagram

  • Title

1

0111-0058-00

RIVET, 1/4 X 3/4 ST POP

$

$

Not available

2

Bear Cat 14544-00

PIN, HITCH 1/2 X 6-1/2 W LYNCH

$39.99

$

Usually ships in 3-7 days

0

3

Bear Cat 15015

BOLT, 1/2 X 2 GR5 HEX CAPSCREW ZP

$1.49

$

Usually ships in 3-7 days

0

4

Bear Cat 15034

WASHER, 1/2" FLAT ZP

$0.99

$

Usually ships in 3-7 days

0

5

Bear Cat 15043

NUT, 1/2" HEX NC ZP

$0.99

$

Usually ships in 3-7 days

0

6

Bear Cat 15049

NUT, 1/2" CENTERLOCK GRB ZP

$0.99

$

Usually ships in 3-7 days

0

7

15079-00

BOLT, 1/4-20 X 3/4 HWH GR5 CZP

$

$

Not available

8

Bear Cat 15116

BOLT, 3/8 X 2-1/2 GR5 HHCS ZP

$

$

Not available

9

Bear Cat 15388

NUT, 3/8" NE NYLOCK ZP

$0.99

$

Usually ships in 3-7 days

0

10

Bear Cat 15481

STUD, 1/2"-13 X 3" LG B7 ZP

$18.99

$

Usually ships in 3-7 days

0

11

15855-00

BOLT, 1/2 X 1-1/2 GR8 NC ZP HEX HD

$

$

Not available

12

Bear Cat 15900-00

NUT, 1/4-20 NYLOCK-FLANGE

$0.99

$

Usually ships in 3-7 days

0

13

Bear Cat 16460

CAP, LARGE SHAFT

$

$

Not available

14

Bear Cat 16553

BEARING, 1-3/4 4 BOLT FLANGE

$

$

Not available

15

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$8.49

$

Usually ships in 3-7 days

0

16

Bear Cat 71050-12

WELDMENT, BLOCK ADJUSTOR

$

$

Not available

17

Bear Cat 71132-12

PLATE, CHIPPER BOTTOM

$

$

Not available

18

Bear Cat 71280

COLLAR, CHIPPER LOCK

$

$

Not available

19

Bear Cat 75960-12

BRACKET, ROTOR LOCK

$

$

Not available

17320

STRAP, 11 IN BLACK TIE

Note: (NOT SHOWN)

$

$

Not available
