CH 9540 HM - Bear Cat 9" Chipper, 540cc PTO Hydraulic Feed (SN: H05219 & Above) Hydraulic Layout Parts Diagram

9" Chipper, 540cc PTO Hydraulic Feed

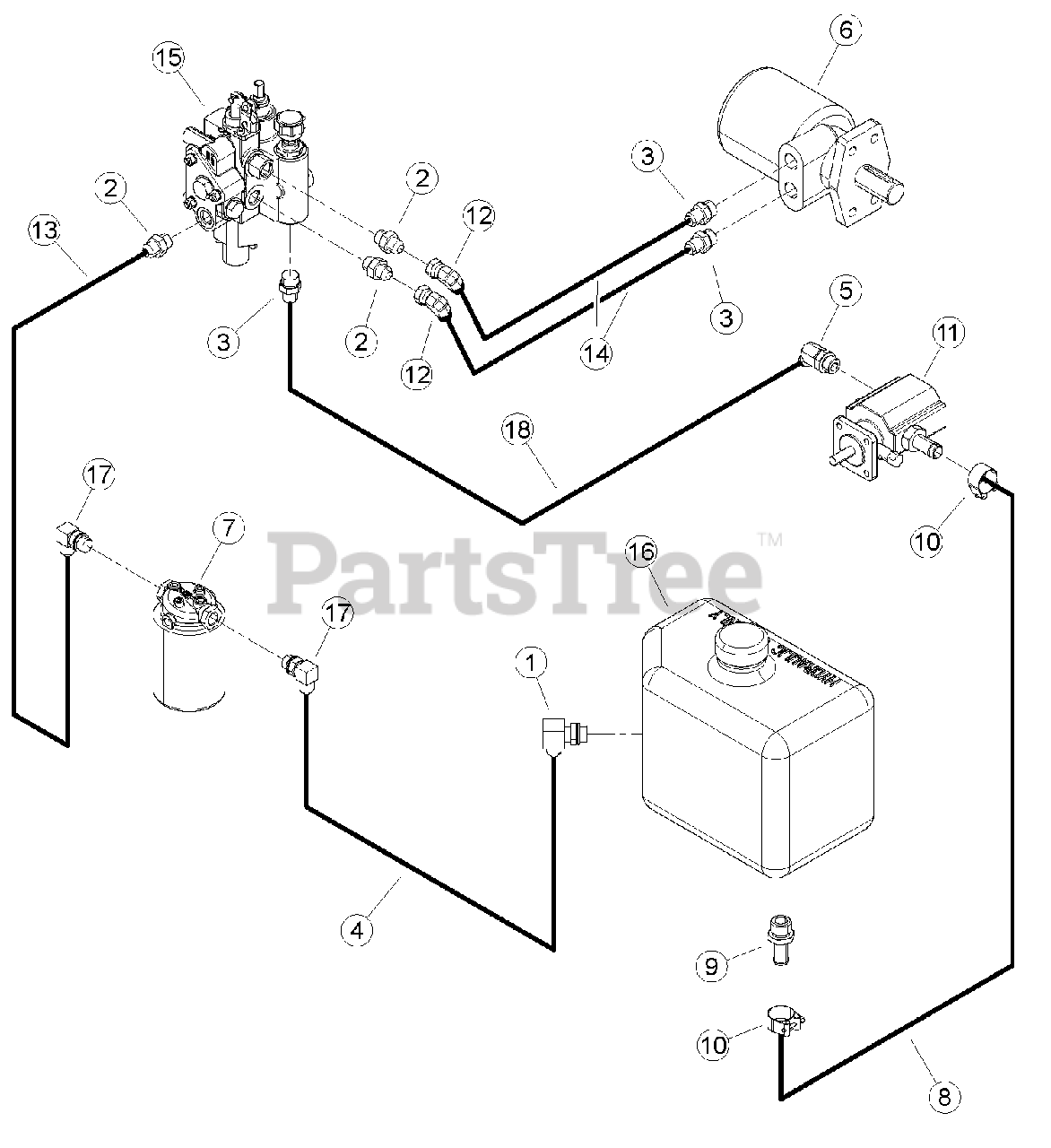

Hydraulic Layout Parts Diagram

  • Title

1

11810

ADAPTER, -10MORING/-8MJIC 90 DEG

$

$

Not available

2

Bear Cat 12615

ADAPTER, -8MORING/-8MJIC

$

$

Not available

3

Bear Cat 12626

ADAPTER, -10MORING/-8MJIC

$

$

Not available

4

Bear Cat 14278-00

HOSE ASSEMBLY, 8FMJIC/8FMJIC SW X 32"

$82.99

$

Usually ships in 3-7 days

0

5

16067

ADAPTER, -10MORING/-8MJIC 45 DEG

$

$

Not available

6

Bear Cat 16586

MOTOR, 45 CU IN HYDRAULIC

$1516.99

$

Usually ships in 3-7 days

0

7

Bear Cat 16588

ASSEMBLY, HYDRAULIC FILTER

$148.99

$

Usually ships in 3-7 days

0

8

30958-00

HOSE, .75 ID X 21 IN 100R4 HYD

$

$

Not available

9

30969-00

ADAPTER, -10 MORB/-12 HOSE BARB

$

$

Not available

10

Bear Cat 31425-00

CLAMP, 1-5/32 TO 7/32 OD RANGE T-BOLT

$52.99

$

Usually ships in 3-7 days

0

11

Bear Cat 31671-00

PUMP, 2 STAGE CW HI/LO 0.605 DISP.

$670.99

$

Usually ships in 3-7 days

0

12

33724-00

ADAPTER, SWIVEL -8MJIC / -8FMJIC

$

$

Not available

13

Bear Cat 33726-00

HOSE, .500" X 112" -8FMJICSW/-FMJICSW 90

$118.99

$

Usually ships in 3-7 days

0

14

33727-00

HOSE, .375" X 35" -8FMJICSW/-8FMJICSW 90 MED DROP

$

$

Not available

15

Bear Cat 33736-00

VALVE, 4-WAY 4-POSITION FC & RELIEF

$2824.99

$

Usually ships in 3-7 days

0

16

Bear Cat 36322-00

TANK, HYDRAULIC

$374.99

$

Usually ships in 3-7 days

0

17

41287

ADAPTER, -8MORING/-8MJIC 90 DEG

$

$

Not available

18

Bear Cat 76909-00

HOSE, 3/8 X 35 -8FJICSW

$75.99

$

Usually ships in 3-7 days

0
