Challenger 400 Yellow (37CV3BHK010) - Cub Cadet 4x4 Utility Vehicle (2020) CVT Parts Diagram

4x4 Utility Vehicle

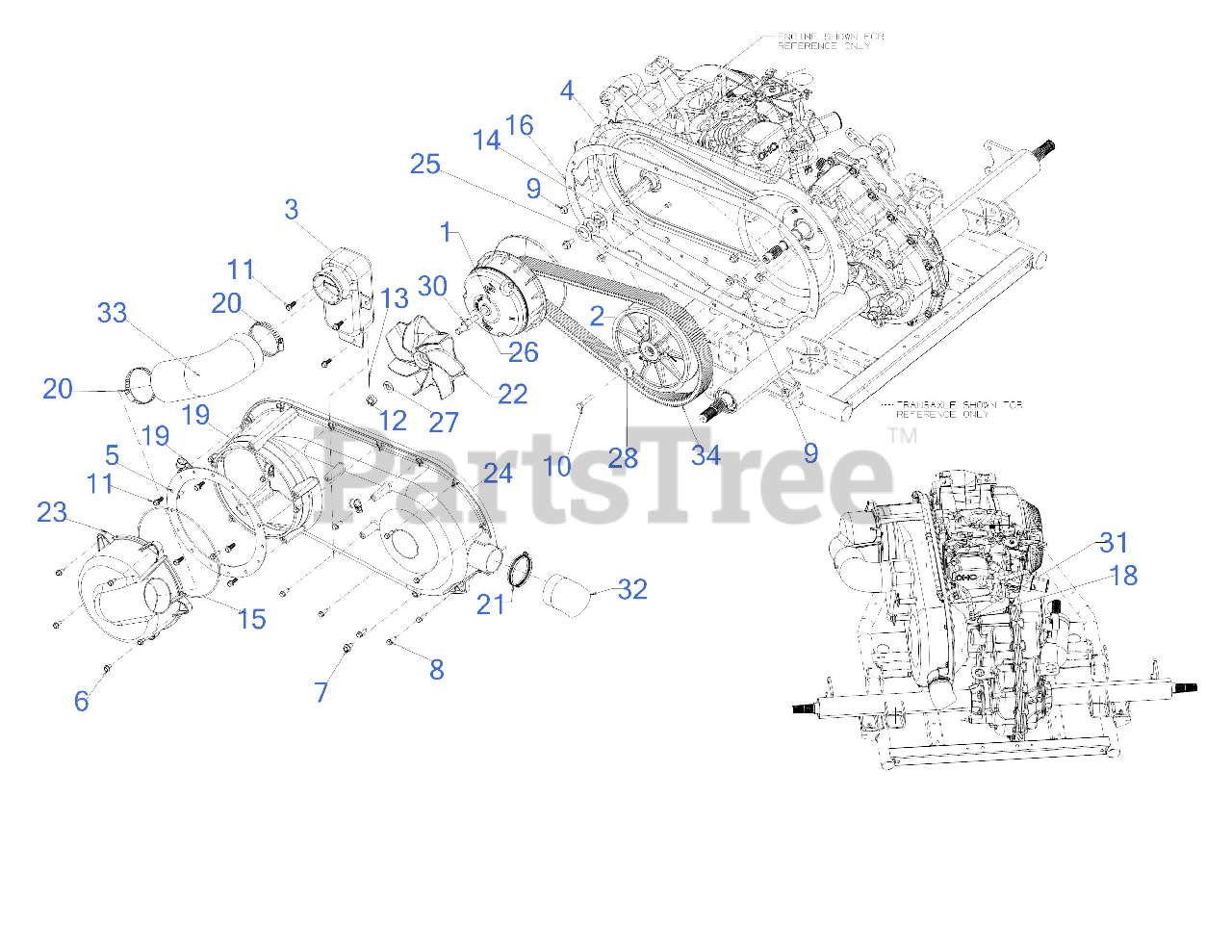

CVT Parts Diagram

  • Title

1

Cub Cadet 918-07368

DRIVER CVT CLUTCH ASSEMBLY

$890.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 918-07396

DRIVEN CVT CLUTCH ASSEMBLY

$805.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 631-05624

CVT FILTER HOUSING ASSEMBLY

$42.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 707-06491

BACK COVER PLATE

$145.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 707E06873

CVT MOUNTING PLATE

$34.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0604A

SCREW 5/16-18 x .625

$4.99

$

In Stock, Qty 13

0

8

Cub Cadet 710-06115

SCREW-TT 1/4-20 x .875

$4.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-06525

HEX FLANGE BOLT 5/16-24:0.75

$3.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-0805A

SCREW 5/16-18 x 1.5 LG

$4.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0895

SCREW 1/4-15 x .750

$6.99

$

In Stock, Qty 20+

0

12

Cub Cadet 912-3012

HEX NUT
(Superseded to 712-3012A)

$13.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 914-0111

COTTER PIN-3/32
(Superseded to 714-0111)

$5.49

$

In Stock, Qty 20+

0

14

Cub Cadet 714-05041

SQUARE KEY (1/4 x 1.0)

$5.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 921-04859

O-RING 7.98 X 8.137 X 0.103

$3.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 921-04871

CVT COVER SEAL

$76.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 726-0205

HOSE CLAMP 1/20

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 726-0272

CLAMP

$7.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 726-04080

HOSE CLAMP

$12.99

$

In Stock, only 2 left!

0

21

Cub Cadet 726-0476

HOSE CLAMP 2-3"

$12.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 731-04275

IMPELLER

$37.99

$

In Stock, only 3 left!

0

23

Cub Cadet 731-12055

CVT FAN COVER

$23.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 731-12099A

CVT COVER

$56.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 936-0163

FLAT WASHER
(Superseded to 736-0163)

$

$

Not available

26

Cub Cadet 736-0247

FLAT WASHER

$10.99

$

In Stock, Qty 20+

0

27

Cub Cadet 936-0272

FLAT WASHER .510 x 1.00 x .060
(Superseded to 736-0272)

$5.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 736-0505

FLAT WASHER

$6.99

$

In Stock, Qty 6

0

30

Cub Cadet 738-05193

THREADED FAN ROD

$36.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 751-10349-36

FUEL HOSE LOW PERMEATION

$

$

Not available

32

Cub Cadet 751-15306

CVT EXHAUST HOSE

$28.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 751-15767

CVT INTAKE TUBE

$46.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 954-05379

CVT BELT

$131.99

$

Usually ships in 3-6 days

0

Cub Cadet 721-04949

O-RING (2.225 x 2.645 x 0.21)

$5.49

$

Usually ships in 3-6 days

0
