Challenger 400LX Yellow (37AV3AHK010) - Cub Cadet 4x2 Utility Vehicle (2017) Bed Assembly Parts Diagram

4x2 Utility Vehicle

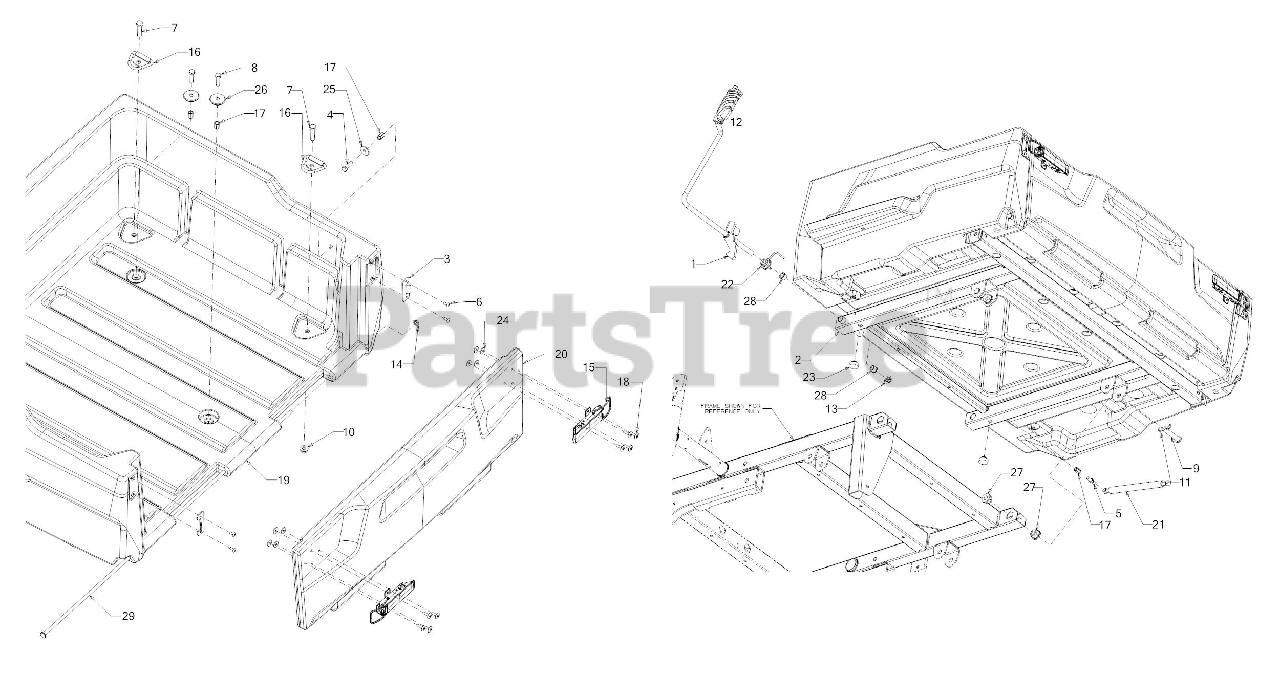

Bed Assembly Parts Diagram

  • Title

1

Cub Cadet 607-05030-0637

BED LATCH ASSEMBLY (LH)

$130.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 607-05033-0637

BED FRAME ASSEMBLY

$164.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 707-06282-0637

TAILGATE LATCH BRACKET

$9.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0376

SCREW 5/16-18 x 1.0 GR5

$3.99

$

In Stock, Qty 17

0

5

Cub Cadet 710-04166

BALL STUD 5/16-18

$9.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0473A

SCREW #10-24 x .500

$3.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-0520

SCREW 3/8-16 x 1.50

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0528

SCREW 5/16-18 x 1.25 GR5

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 711-06500

CLEVIS PIN .494 x 2.528

$5.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 714-05005

BOW TIE COTTER PIN

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 720-05107

GRIP

$13.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 726-0299

PUSH CAP

$7.49

$

In Stock, Qty 20+

0

14

Cub Cadet 726-04009

PUSH CAP
(Superseded to 726-04009A)

$6.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 726-04058A

OVER CENTER DRAW LATCH

$75.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 726-05047

TIE DOWN MOUNT

$11.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 728-04068

NUT RIVET 5/16-18

$4.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 728-05033

POP RIVET - .188 DIAMETER

$2.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 731-10486

BED

$604.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 731-10494

TAILGATE

$188.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 732-05303

7.87 STROKE GAS SPRING

$37.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 732-05313

TORSION SPRING

$3.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 735-05058

RUBBER BUMPER 1.000 x .313

$3.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 936-0400

FLAT WASHER .194x.620x.063
(Superseded to 736-0400)

$

$

Not available

25

Cub Cadet 736-04117

FLAT WASHER 1.0 OD:.331 ID

$3.49

$

In Stock, Qty 20+

0

26

Cub Cadet 738-05153A

SHOULDER SPACER

$5.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 741-04453A

FLANGE BEARING

$4.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 741-0748

FLANGE BUSHING

$11.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 747-06551

TAIL GATE ROD

$24.99

$

Usually ships in 3-6 days

0
