Challenger 500 Yellow (37AW7CKD010) - Cub Cadet 4x4 Utility Vehicle Front Axle 2 Parts Diagram

4x4 Utility Vehicle

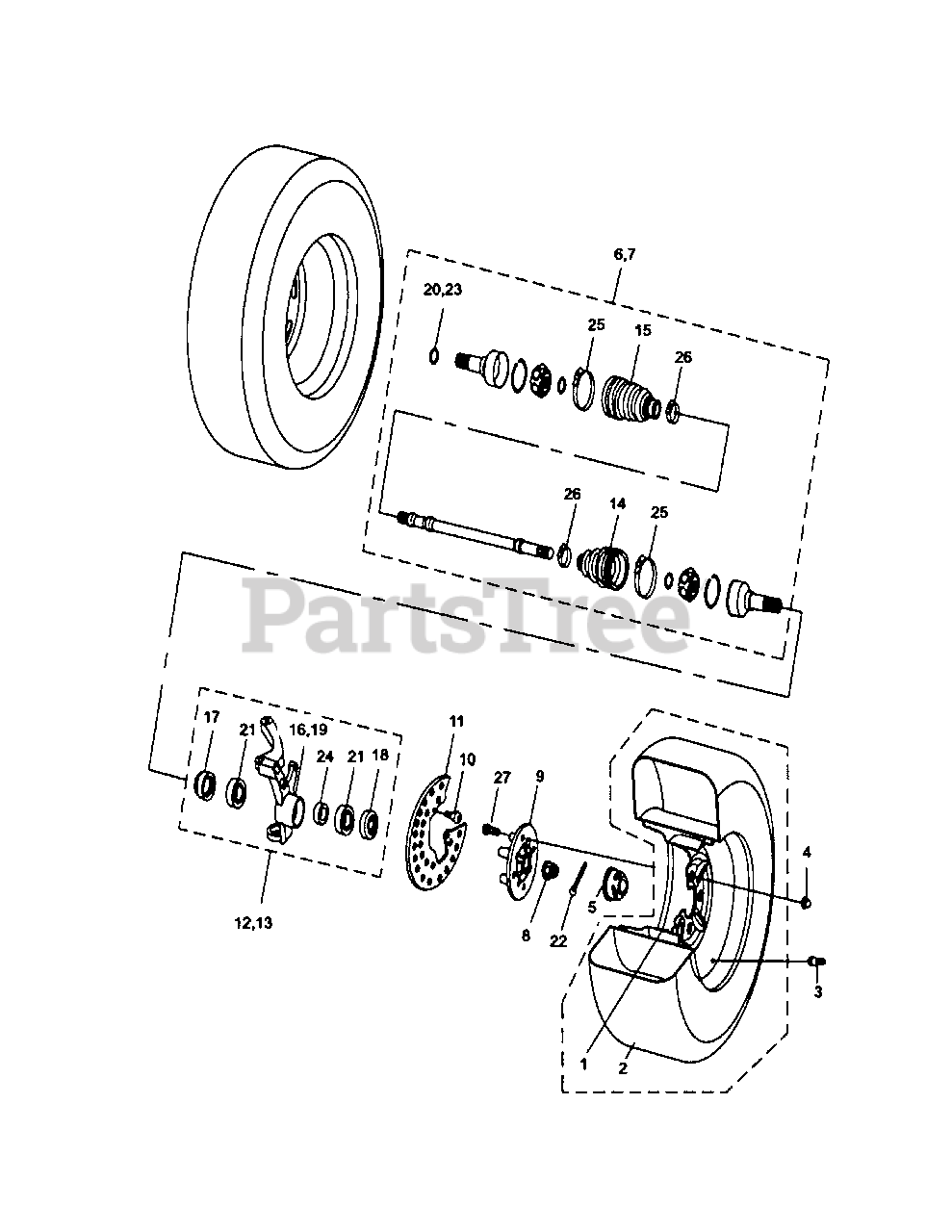

Front Axle 2 Parts Diagram

  • Title

1

Cub Cadet 41120-116-1F00

Front Alu. Wheel F116

$405.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 41170-115-5200

Front Tyre

$225.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 41275-115-0000

Cycle Valve
(Superseded to 503-00417)

$9.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 90431-102-0000

Nut M10
(Superseded to 503-00418)

$9.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 83102-115-0000

Wheel Caps II

$16.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 47210-115N-0000

Front Left C.V Axle

$414.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 47230-115N-0000

Front Right C.V Axle

$414.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 47203-115-0000

Nut M22×1.5

$

$

Not available

9

Cub Cadet 62310-115N-0000

Front Hub

$329.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 90542-103-0002

Cross Large Plate Head Screw M6×12
(Superseded to 503-00140)

$6.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 41112-115-0000

Front Brake Disk Cover
(Superseded to 503-00424)

$47.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 62210-115N-0000

Front Left Steering Knuckle Assy.

$218.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 62230-115N-0000

Front Right Steering Knuckle Assy.

$237.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 47212-107-0000

Inner Rubber Dust-P Cover (C-1605)

$34.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 47211-107-0000

Outer Rubber Dust-P Cover (C-1610)

$34.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 62211-115-0000

Front Left Steering Knuckle
(Superseded to 62210-115N-0000)

$218.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 62212-115-0000

Inner Oil Seal, Front Knuckle 38×55×8
(Superseded to 503-00432)

$25.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 62213-115-0000

Outer Oil Seal, Front Knuckle 38×55×7
(Superseded to 503-00434)

$17.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 62231-115-0000

Front Right Steering Knuckle
(Superseded to 62230-115N-0000)

$237.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 47213-115-0000

Circlip

$2.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 62258-115N-0000

Bearing DAC30×60×30
(Superseded to 503-00433)

$54.99

$

Usually ships in 3-6 days

0

22

Cub Cadet B12-3.2X50-WA

Cotter Pin 3.2×50
(Superseded to 47204-112-0000)

$8.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 47213-115-0000

Circlip

$2.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 62215-115-0000

Inner Bushing

$15.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 47201-107-0000

CV Boot Proof Clamp A

$6.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 47202-107-0000

CV Boot Proof Clamp B

$4.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 62331-115-0000

Bolt M10×30

$3.99

$

Usually ships in 3-6 days

0
