Challenger 500 Yellow (37AW7CKD710) - Cub Cadet 4x4 Utility Vehicle 500UTV Engine Cylinder Head Complete Parts Diagram

4x4 Utility Vehicle

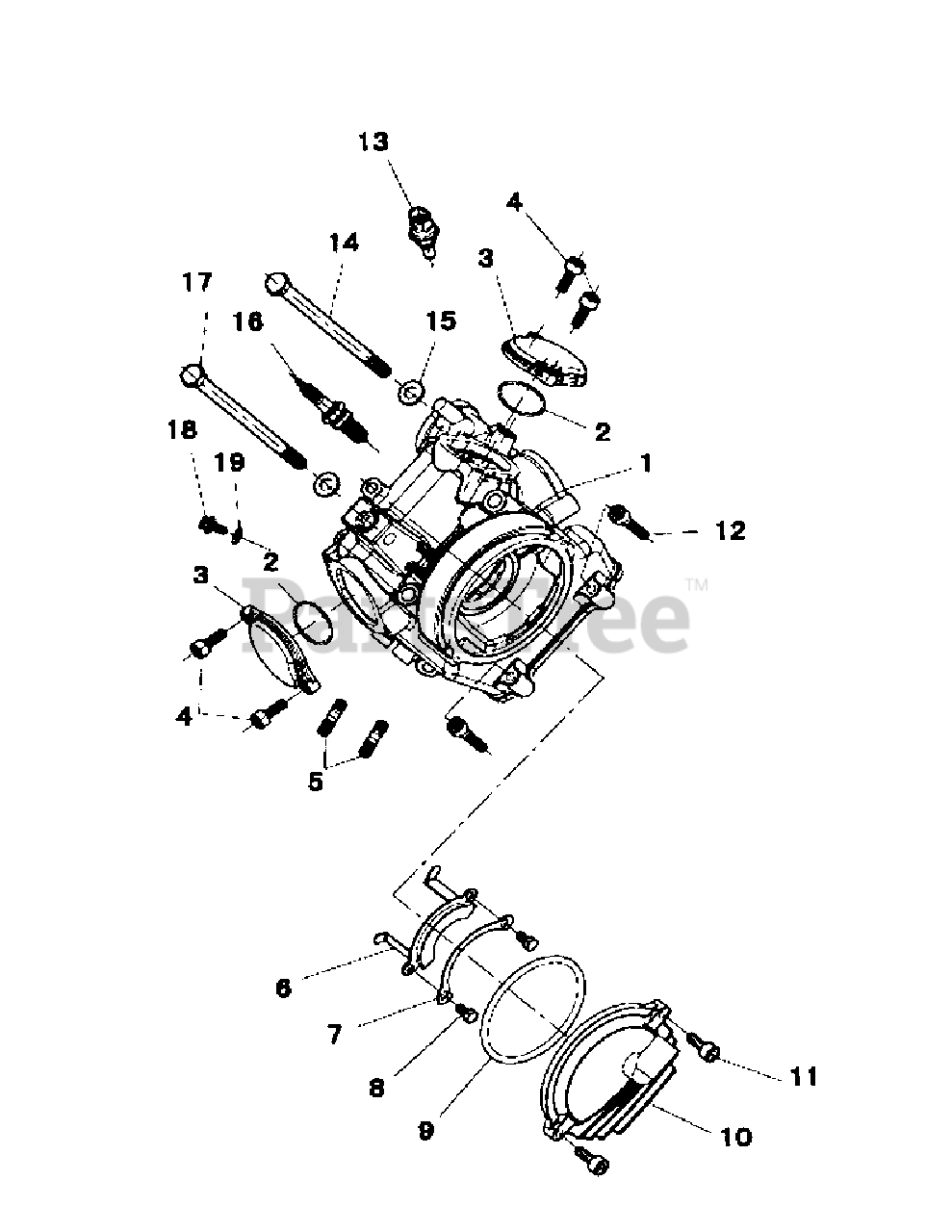

500UTV Engine Cylinder Head Complete Parts Diagram

  • Title

1

Cub Cadet 12200-004C-0000

Cylinder Head-Comp (EFI Engine)
(Superseded to 12200-004G-0000)

$456.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 91205-002-0000

O-Ring 58X2.4

$7.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 12361-002-0000

Cover-Inlet Valve

$3.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 93432-0602-0060

Screw-Cylinder M6 X 20 Inner

$2.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 93140-0804-5060

Studbolt M8X45

$2.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 93102-004-0000

Pressure Plate-Camshaft

$2.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 93112-004-0000

Bolt Limit Board

$2.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 93103-0601-6060

Hexagon Head Bolt M6X16

$2.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 91229-002-0000

O-Ring 107X2.4
(Superseded to 503-01260)

$20.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 12331-004-0000

Cover-Cylinder Head Lh

$15.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 93432-0602-5060

Screw-Cylinder M6 X 25 Inner

$2.49

$

In Stock, only 4 left!

0

12

Cub Cadet 93432-0804-0060

Screw-Cylinder M8 X 40 Inner

$2.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 36540-010-0000

Sensor-Water Temperature

$63.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 90032-015-0000

Bolt M10X1.25X250

$6.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 90602-002-0000

Washer

$3.49

$

Usually ships in 3-6 days

0

16

Cub Cadet DR8EA

Sparkplug(Ngk dr8Ea)

$4.49

$

In Stock, Qty 8

0

17

Cub Cadet 90031-015-0000

Bolt M10X1.25X223

$4.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 93107-0601-2060

Flangebolt M6X12

$2.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 90601-002-0000

Aluminum Washer

$1.99

$

Usually ships in 3-6 days

0
