Challenger 550 Red (37AZ7CMK710) - Cub Cadet 4x4 Utility Vehicle (2017) CYLINDER Parts Diagram

4x4 Utility Vehicle

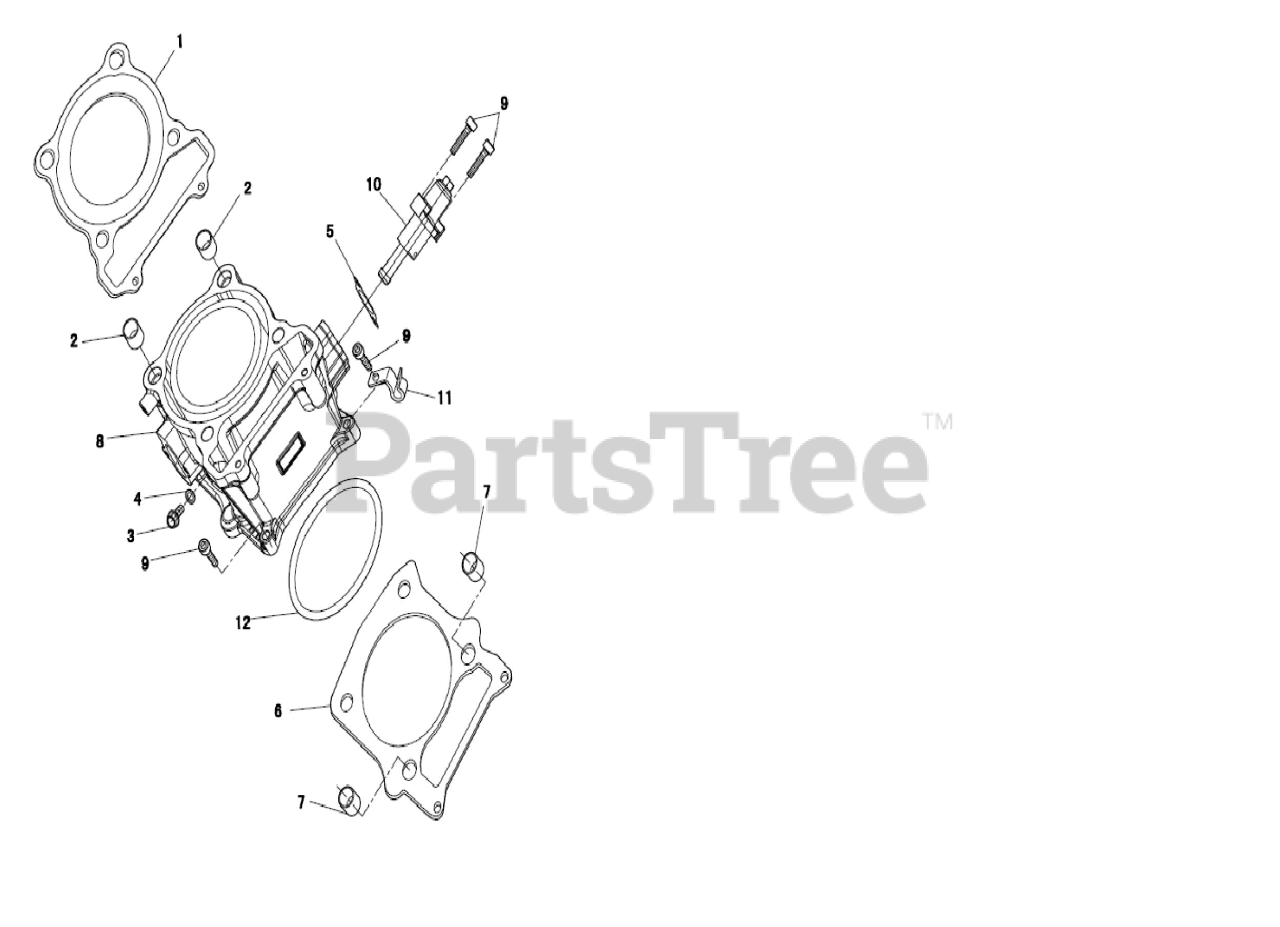

CYLINDER Parts Diagram

  • Title
1

Cub Cadet 503-01285

HEAD GASKET
(Superseded to 503P01285)

$51.99

$

In Stock, only 1 left!

0

2

Cub Cadet 503-00974

Pin,Dowel 12X16

$6.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 503-00921

Hex flange bolts M6X12

$6.49

$

In Stock, only 1 left!

0

4

Cub Cadet 503-00922

Aluminum Washer 6X12X1.5

$6.49

$

In Stock, only 1 left!

0

5

Cub Cadet 503-01286

TENSIONER GASKET

$4.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 503-01287

CYLINDER GASKET

$6.99

$

In Stock, only 1 left!

0

7

Cub Cadet 503-00982

Pin,Dowel 14X16

$6.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 503-01288

CYLINDER ASSEMBLY

$483.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 503-00936

Hex head cap screw M6X25

$6.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 503-01289

TENSIONER ASSEMBLY

$41.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 503-00981

Pipe Clamp ?

$5.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 503-01290

O-RING 90 X 3

$23.99

$

Usually ships in 3-6 days

0
