Challenger 700 Yellow (37AX7CKD710) - Cub Cadet 4x4 Utility Vehicle Brake Parts Diagram

4x4 Utility Vehicle

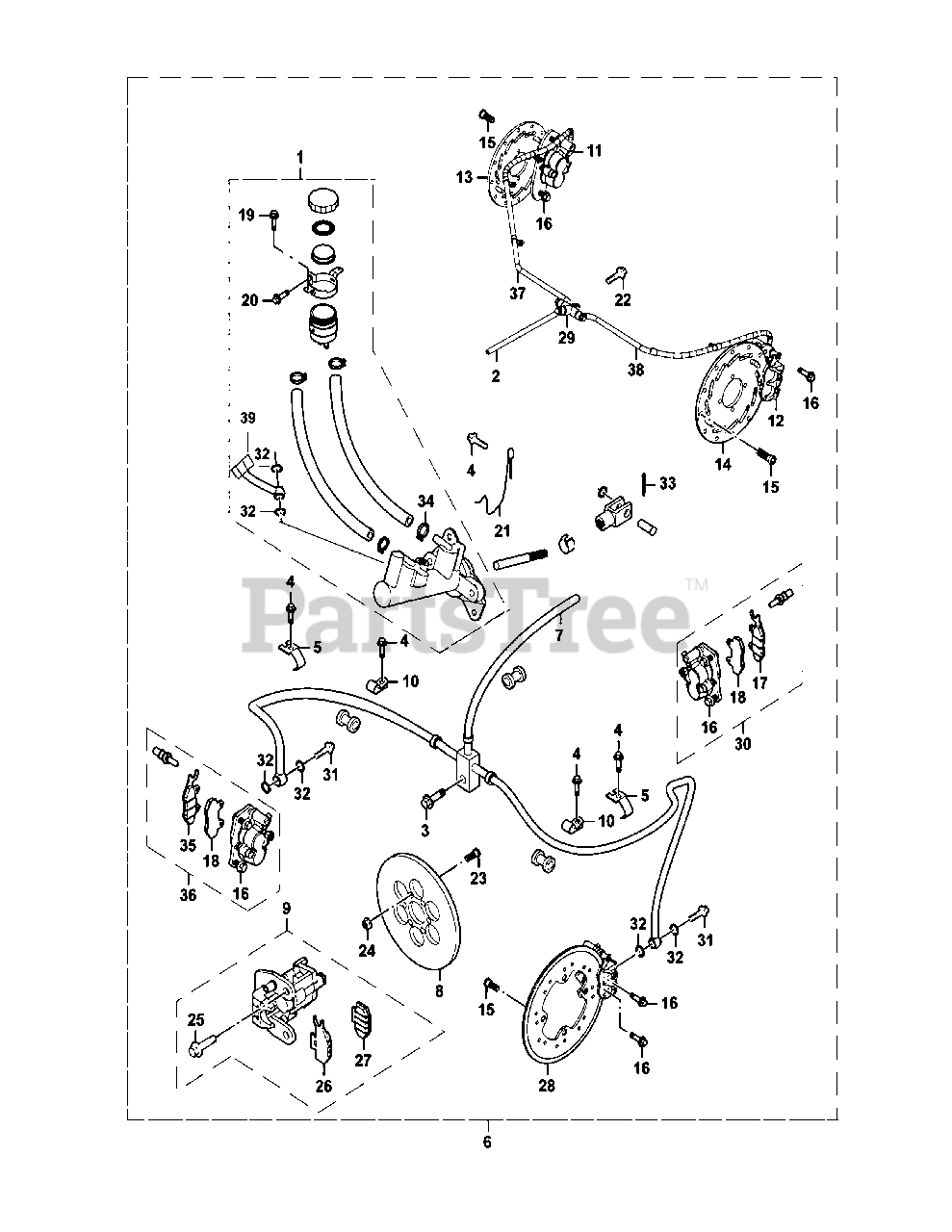

Brake Parts Diagram

  • Title

1

Cub Cadet 44520-115-0100

Rear Brake Pump
(Superseded to 503-00660)

Note: (includes 19, 20, 39, 32, 34)

$454.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 45400-115-0100

Rear Brake Oil Pipe
(Superseded to 45400-115-0100P)

$67.99

$

Usually ships in 3-6 days

0

3

Cub Cadet B05-M6X25-57

Hexagon Flange Bolt M6×25

$2.49

$

Usually ships in 3-6 days

0

4

Cub Cadet B05-M6X12-57

Hexagon Flange Bolt M6×12

$2.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 44231-115-0000

Oil Pipe Clip, Front Disc Brake
(Superseded to 503-00664)

$5.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 44000-115N-0101

Disc Brake Parts
(Superseded to 44000-115-0101P)

$1212.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 44400-115N-0000

Front Brake Hose

$166.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 41201-115-0000

Braking Plate
(Superseded to 503-00667)

$62.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 45800-115-0000

Middle Brake
(Superseded to 503-00668)

Note: (includes 25, 26, 27)

$349.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 44923-115-0000

Cable Clip

$

$

Not available

11

Cub Cadet 44600-115-0000

Rear Right Brake Caliper
(Superseded to 503-00670)

$369.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 44700-115-0000

Rear Left Brake Caliper
(Superseded to 503-00671)

$375.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 41214-115-0000

Rear Right Brake Plate
(Superseded to 503-00455)

$213.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 41205-115-0000

Rear Left Brake Plate

$276.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 90101-115-0000

Bolt M8×15-15×5
(Superseded to 503-00438)

$6.49

$

Usually ships in 3-6 days

0

16

Cub Cadet B06-M10X1.25X22

Bolt M10×1.25×22

$2.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 44203-115-0000

Outer Brake Pad Assy (Front & Left)
(Superseded to 503-00675)

$104.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 44204-115-0000

Inner Brake Pad Assy

$93.99

$

Usually ships in 3-6 days

0

19

Cub Cadet B05-M6X16-57

Hexagon Flange Bolt M6×16

$2.49

$

In Stock, only 1 left!

0

20

Cub Cadet B05-M6X20-57

Hexagon Flange Bolt M6×20
(Superseded to 503-00004)

$6.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 95061-115-0000

Oil Pipe Orientated Spring
(Superseded to 503-00678)

$5.49

$

Usually ships in 3-6 days

0

22

Cub Cadet B05-M6X30-57

Hexagon Flange Bolt M6×30

$2.49

$

In Stock, only 4 left!

0

23

Cub Cadet 90111-115-0000

Hexagon Step Bolt M6×14-7×15

$3.99

$

Usually ships in 3-6 days

0

24

Cub Cadet B09-M6-27

Hexagon Flange Self-Lock Nuts M6
(Superseded to 503-00007)

$6.49

$

In Stock, Qty 5

0

25

Cub Cadet B06-M10X1.25X55

Hexagon Bolt M10×1.25×55

$4.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 45801-115-0000

Outer Brake Pad
(Superseded to 503-00683)

$75.99

$

In Stock, only 1 left!

0

27

Cub Cadet 45802-115-0000

Inner Brake Pad Assy
(Superseded to 503-00683)

$75.99

$

In Stock, only 1 left!

0

28

Cub Cadet 41105-115-0000

Front Brake Pad
(Superseded to 503-00430)

$66.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 45401-115-0100

Rear Triplet Joint

$62.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 44200-115-0000

Front Left Brake Caliper
(Superseded to 503-00685)

Note: (includes 16, 18, 17)

$297.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 44001-115-0000

Strainer Bolt

$14.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 44004-115-0000

Cooper Seal

$5.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 44007-115-0000

Cotter Pin

$1.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 44011-115-0000

Oil Pipe Hoop

$4.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 44318-115-0000

Outer Brake Pad Assy (Front & Right)
(Superseded to 503-00686)

$104.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 44300-115-0000

Front Right Brake Caliper
(Superseded to 503-00687)

Note: (includes 35, 18, 16)

$289.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 45402-115N-0100

Rear right Brake Hose

$116.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 45403-115N-0100

Rear left Brake Hose

$131.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 37630-119-0000

Brake Switch
(Superseded to 503-00672)

$84.99

$

Usually ships in 3-6 days

0
