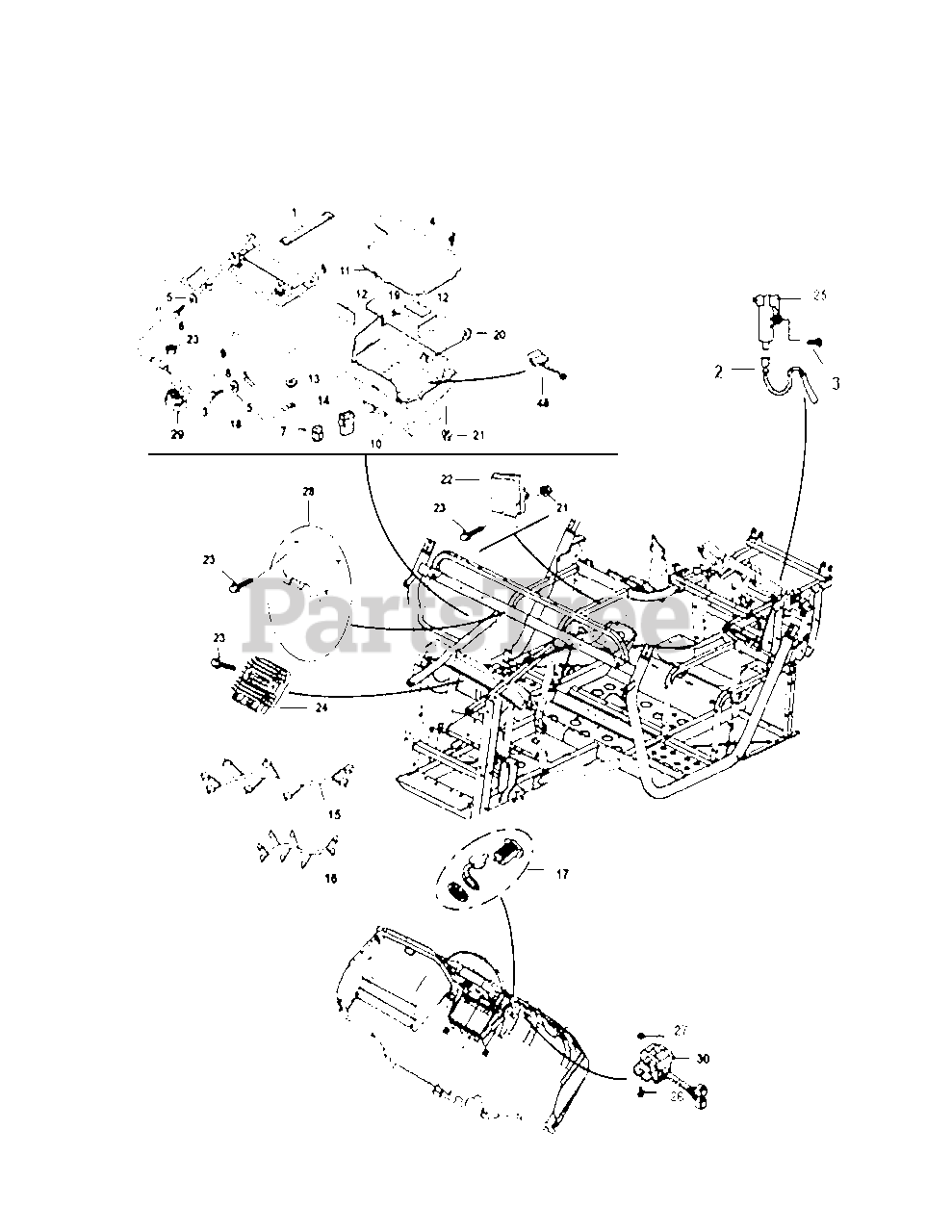

Challenger 700 Yellow (37AX7CKD710) - Cub Cadet 4x4 Utility Vehicle Electrical Parts Parts Diagram

4x4 Utility Vehicle

Electrical Parts Parts Diagram

  • Title

1

Cub Cadet 94052-115-0000

Rubber Latch II
(Superseded to 503-00520)

$6.49

$

In Stock, only 1 left!

0

2

Cub Cadet 33120-115H-0000

Connecting Cable, Ignition Coil(EFI Engine)
(Superseded to 503-00545)

$86.99

$

In Stock, only 2 left!

0

3

Cub Cadet 90542-115-0005

Hexagon Flange Bolt M6X40
(Superseded to 503-00864)

$6.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 90213-115-0000

Bolt M6×20
(Superseded to 503-00521)

$4.49

$

Usually ships in 3-6 days

0

5

Cub Cadet n/a

Cushion 6.5×11.5×1

$

$

Currently unavailable

6

Cub Cadet 37713-115-0000

Positive Cable, Battery

$14.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 34610-115-0000

Flasher
(Superseded to 503-00546)

$255.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 37710-119-0000

Starting Relay
(Superseded to 37710-119-0000P)

$107.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 925-1707D

Battery -T

$

$

Not available

10

Cub Cadet 32232-115-0000

Battery Box
(Superseded to 503-00525)

$81.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 32233-115-0000

Battery Mounting Cap
(Superseded to 503-00526)

$19.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 51301-115-0000

Battery Cushion
(Superseded to 503-00527)

$14.99

$

Usually ships in 3-6 days

0

13

Cub Cadet B01-6-B7

Spring Washer -6
(Superseded to 503-00005)

$6.49

$

In Stock, only 2 left!

0

14

Cub Cadet 37770-119-0000

Main Relay
(Superseded to 503-00547A)

$143.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 34100-115N-0100

Main Cables
(Superseded to 34100-115N-010P)

$1021.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 34200-115N-0000

EFI Cable Assy(EFI Engine)
(Superseded to 503-00538P)

$453.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 32310-107-0000

DC Socket
(Superseded to 503-00539)

$57.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 34160-115-0000

Negative Cable, Battery

$67.99

$

Usually ships in 3-6 days

0

19

Cub Cadet B05-M6X16-57

Hexagon Flange Bolt M6×16

$2.49

$

In Stock, only 1 left!

0

20

Cub Cadet B03-6-B7

Washer6×18×1.6
(Superseded to 503-00019)

$4.49

$

In Stock, only 4 left!

0

21

Cub Cadet B22-M6-27

Hexagon Flange Nut M6
(Superseded to 503-01350)

$4.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 39200-115H-0000

ECU Controller Assy(EFI Engine)
(Superseded to 39200-115H-000P)

$480.99

$

Usually ships in 3-6 days

0

23

Cub Cadet B05-M6X20-57

Hexagon Flange Bolt M6×20
(Superseded to 503-00004)

$6.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 32100-115-0000

Voltage Regulator
(Superseded to 503-00535)

$189.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 33100-116-0000

Ignition Coil
(Superseded to 503-00543)

$169.99

$

In Stock, only 1 left!

0

26

Cub Cadet 90542-102-0001

Cross Large Plate Head Screw M5X16
(Superseded to 503-00142)

$4.49

$

Usually ships in 3-6 days

0

27

Cub Cadet B22-M5-27

Hexagon flange nut M5
(Superseded to 503-00374)

$5.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 37700-115N-0000

Relay Assy (EFI Engine)
(Superseded to 503-00536)

$216.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 37717-115-0000

Starting Relay Rubber Coat

$23.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 37120-115N-0000

2WD/ 4WD Switch
(Superseded to 503-00540)

$74.99

$

Usually ships in 3-6 days

0

31

Cub Cadet B22-M5-27

Hexagon flange nut M5
(Superseded to 503-00374)

$5.49

$

Usually ships in 3-6 days

0

32

Cub Cadet 90542-102-0001

Cross Large Plate Head Screw M5×16
(Superseded to 503-00142)

$4.49

$

Usually ships in 3-6 days

0

33

Cub Cadet 33100-116-0000

Ignition Coil
(Superseded to 503-00543)

$169.99

$

In Stock, only 1 left!

0

Cub Cadet 32239-115-0000

Nut, Battery

Note: (not shown)

$

$

Not available

Cub Cadet 36551-115-0000

Fuse(5A)

Note: (not shown)

$4.49

$

Usually ships in 3-6 days

0

Cub Cadet 36552-115-0000

Fuse(10A)

Note: (not shown)

$4.99

$

Usually ships in 3-6 days

0

Cub Cadet 36553-115-0000

Fuse(15A)

Note: (not shown)

$7.49

$

Usually ships in 3-6 days

0
