Challenger 750 Blue (37AY7CNK710) - Cub Cadet 4x4 Utility Vehicle (2017) LOWER DOORS Parts Diagram

4x4 Utility Vehicle

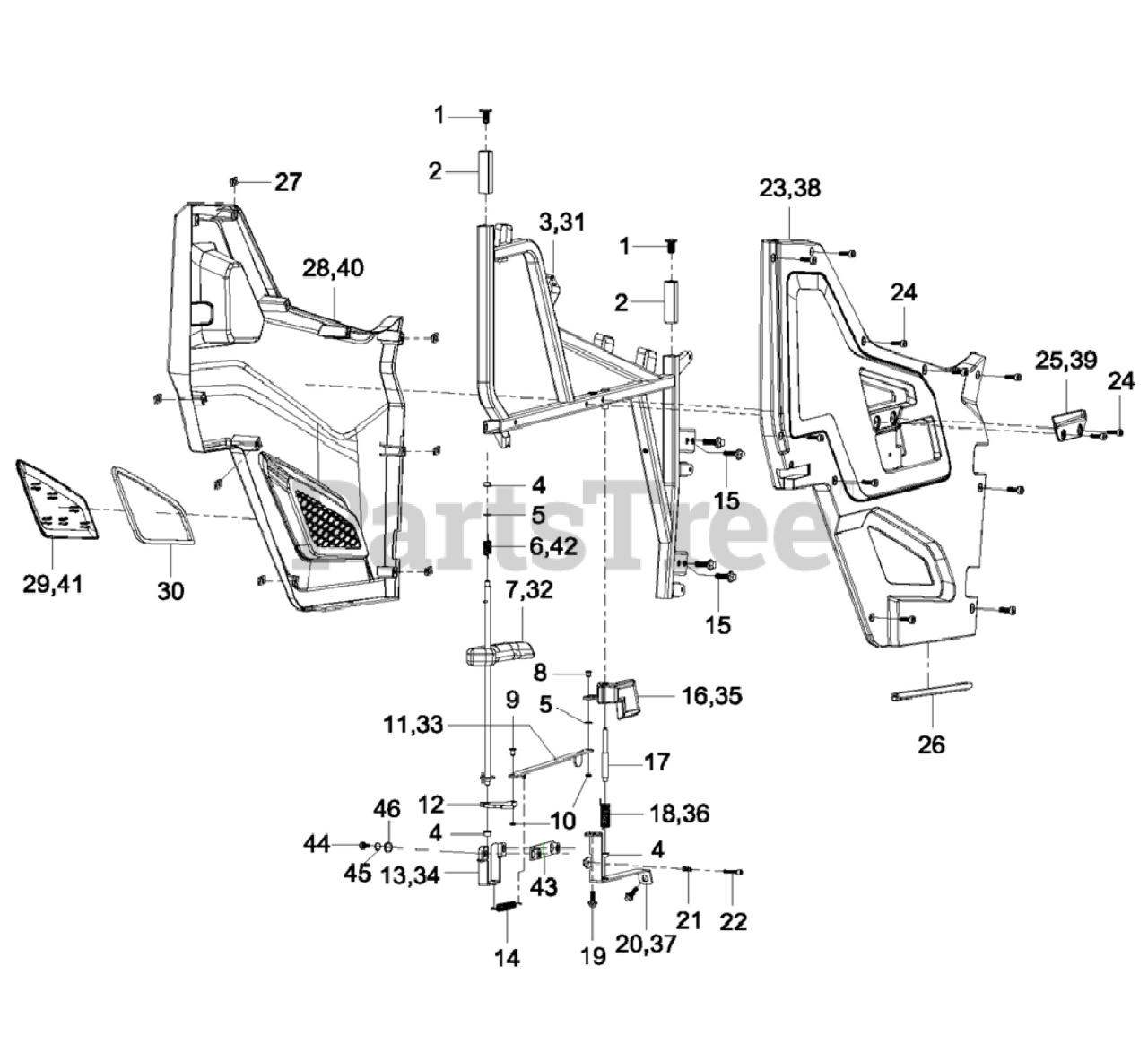

LOWER DOORS Parts Diagram

  • Title

1

Cub Cadet 503-01782

PLUG - DOOR

$4.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 503-01783

UPPER DOOR SEAT

$108.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 503-01784

DOOR FRAME - LEFT LOWER

$235.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 503-01785

BUSHING PLASTIC 8x11

$4.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 503-01411

WASHER 8

$4.49

$

In Stock, only 4 left!

0

6

Cub Cadet 503-01786

SPRING RETURN AL

$4.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 503-01787

OUTSIDE DOOR HANDLE KIT - LEFT

$14.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 503-01788

PIN - SHOULDER 8x11

$4.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 503-01789

PIN - SHOULDER 8x14

$4.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 503-01342

CLIP
(Superseded to 503-01342A)

$4.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 503-01790

DOOR LOCK ROD - LEFT

$8.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 503-01791

DORR LOCK KIT

$3.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 503-01792

INSIDE DOOR LOCK LEVER SEAT - LEFT

$23.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 503-01793

SPRING PULL S
(Superseded to 503-02234)

$2.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 503-00194

Flange bolt M8x25

$7.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 503-01794

INSIDE DOOR HANDLE KIT - LEFT

$3.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 503-01795

PIN - SHOULDER 8x104-12x47

$9.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 503-01796

SPRING - TORSION AJ

$4.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 503-00011

Hexagon Flange Bolt M6x16

$5.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 503-01797

INSIDE DOOR LOCK LEVER SEAT - LEFT

$8.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 503-01798

PRESSURE SPRING M

$4.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 503-01799

HExAGON SOCKET HEAD CAP SCREWS M6x40

$4.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 503-01800

DOOR PROTECTOR - LEFT INSIDE?
(Superseded to 503-01800A)

$149.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 503-00129

Socket Hex Flat Head Bolt M6x16

$5.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 503-01801

DOOR PULL - LEFT

$4.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 503-01802

DOOR STRIPS

$17.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 503-01702

CLAMP NUT M6x6

$6.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 503-01803

DOOR PROTECTOR - LEFT OUTSIDE?
(Superseded to 503-01803A)

$149.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 503-01804

COVER DOOR BREATHER WINDOWS - LEFT

$7.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 503-01941

COVER DOOR BREATHER WINDOWS LEFT YELLOW

$7.49

$

Usually ships in 3-6 days

0

29

Cub Cadet 503-01942

COVER DOOR BREATHER WINDOWS LEFT BLUE

$7.49

$

Usually ships in 3-6 days

0

29

Cub Cadet 503-01943

COVER DOOR BREATHER WINDOWS LEFT BLACK

$7.49

$

Usually ships in 3-6 days

0

29

Cub Cadet 503-01944

COVER DOOR BREATHER WINDOWS LEFT CAMO

$13.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 503-01805

DOOR SEAL

$74.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 503-01806

DOOR FRAME- RIGHT KIT

$209.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 503-01807

OUTSIDE DOOR HANDLE KIT - RIGHT

$14.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 503-01808

DOOR LOCK ROD - RIGHT

$8.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 503-01809

INSIDE DOOR LOCK LEVER SEAT - RIGHT

$26.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 503-01810

INSIDE DOOR HANDLE KIT - RIGHT

$3.49

$

Usually ships in 3-6 days

0

36

Cub Cadet 503-01811

SPRING - TORSION AK

$4.49

$

Usually ships in 3-6 days

0

37

Cub Cadet 503-01812

INSIDE DOOR LOCK SEAT - RIGHT

$25.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 503-01813

DOOR PROTECTOR - RIGHT INSIDE?

$138.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 503-01814

DOOR PULL - RIGHT

$4.49

$

Usually ships in 3-6 days

0

40

Cub Cadet 503-01815

DOOR PROTECTOR - RIGHT OUTSIDE?

$147.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 503-01816

COVER DOOR BREATHER WINDOWS RIGHT RED

$7.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 503-01945

COVER DOOR BREATHER WINDOWS RIGHT YELLOW
(Superseded to 503-01945A)

$7.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 503-01946

COVER DOOR BREATHER WINDOWS RIGHT BLUE

$7.49

$

Usually ships in 3-6 days

0

41

Cub Cadet 503-01947

COVER DOOR BREATHER WINDOWS RIGHT BLACK

$7.49

$

Usually ships in 3-6 days

0

41

Cub Cadet 503-01948

COVER DOOR BREATHER WINDOWS RIGHT CAMO

$15.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 503-01817

SPRING - RETURN AM

$4.49

$

Usually ships in 3-6 days

0

43

Cub Cadet 503-02010

SEAT MOOUNTING PLATE LOCK

$9.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 503-00042

Hexagon Flange Bolt M8X20

$6.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 503-00005

Spring Washer-8

$5.99

$

In Stock, only 4 left!

0

46

Cub Cadet 503-01411

WASHER 8

$4.49

$

In Stock, only 4 left!

0
