Challenger 750 Camo (37AY8CLD710) - Cub Cadet 4x4 Crew Utility Vehicle (2016) Rear Bridge Reducer Assembly Parts Diagram

4x4 Crew Utility Vehicle

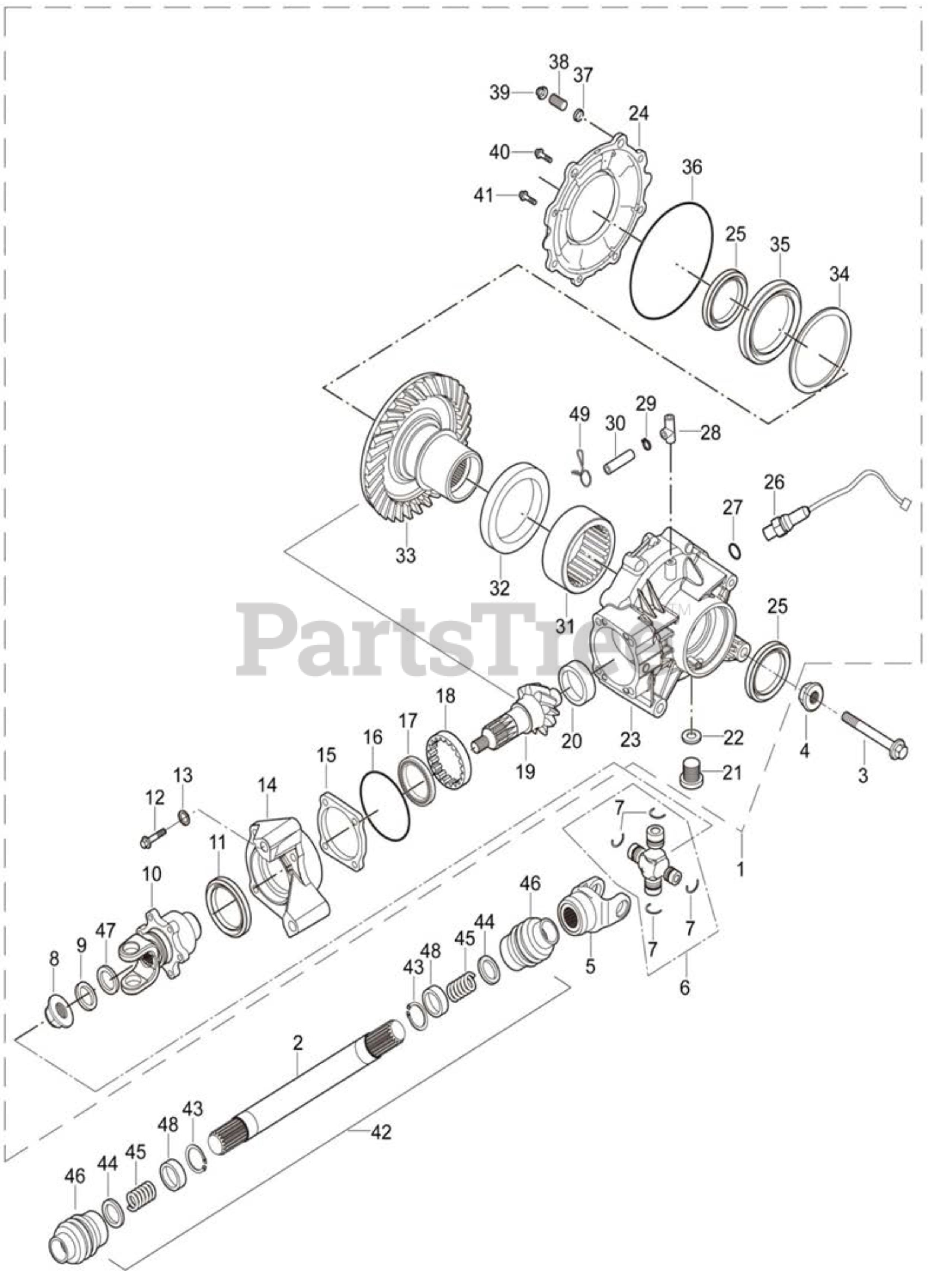

Rear Bridge Reducer Assembly Parts Diagram

  • Title

1

Cub Cadet 503-00155

Rear Diff. Assy

$2082.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 503-00156

Rear Transmission shaft K

$208.99

$

Usually ships in 3-6 days

0

3

Cub Cadet B06M10X1.25X120

Hexagon Flange Bolt M10X1.25X120
(Superseded to 503-01964)

$11.99

$

Usually ships in 3-6 days

0

4

Cub Cadet B10-M10X1.25-27

Hexagon Flange Self-Lock Nuts M10x1.25

$2.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 503-00159

Fork F

$99.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 503-00160

Criss-CrossShaft
(Superseded to 503-00160P)

$137.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 503-00161

ClipD0=62

$

$

Not available

8

Cub Cadet B10-M12X1.25-27

Flange bolt M12X1.25

$2.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 503-00163

Driving gear Washer

$10.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 503-00164

Fork G

$135.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 503-00165

Oil seal 61X35X9

$37.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 503-00001

Hexagon flange bolts M8X35

$8.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 503-00167

Flat waher 8

$5.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 503-00168

Brake caliper mounting case

$421.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 503-00169

Adjusting washer 78X93X0.1

$10.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 503-00170

O-type ring 71X2.65

$27.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 503-00171

Bearing 6305

$64.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 503-00172

Clamping bush

$23.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 503-00173

Rear differencial driving gear

$232.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 503-00174

Needle bearing 22X30X13

$23.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 503-00175

Flange bolt M10X1.25X16

$8.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 503-00176

O-type rubber ring 8.5X1.5

$12.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 503-00177

Rear Diff. Case

$409.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 503-00178

Rear Diff. Cover

$134.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 503-00179

Output oil seal 70X90X9

$70.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 503-00180

Speed Sensor Assy.

$85.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 503-00181

O-ring 18X2.65

$10.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 503-00182

Rear diff air fitting

$8.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 503-00183

Spring clamp C

$12.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 503-00184

Air vent line

$14.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 503-00185

Needle bearing 55X67X20

$36.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 503-00186

Adjusting washer 55.2X66.8X1.7

$14.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 503-00187

Rear diff driven gear
(Superseded to 503-01252)

$594.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 503-00186

Adjusting washer 86X100X0.1

$14.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 503-00189

Bearing 16017

$186.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 503-00190

O-ring 3.1X150

$36.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 503-00191

Copper washer 8.2X1

$6.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 503-00192

Flat screw M8X45

$7.49

$

Usually ships in 3-6 days

0

39

Cub Cadet 503-00002

Flange nut M8

$6.49

$

Usually ships in 3-6 days

0

40

Cub Cadet B05-M8X25-57

Flange bolt M8X25
(Superseded to 90183-115-0002)

$8.99

$

In Stock, only 2 left!

0

41

Cub Cadet B06-M10X1.25X25

Flange bolt M10X1.25X25

$8.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 503-00196

Rear axle

$382.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 503-00197

Spring clip 25

$13.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 503-00198

Rear axle Washer B

$12.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 503-00199

Rear axle Spring B

$17.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 503-00200

Rear axle rubber boot C

$19.99

$

In Stock, only 1 left!

0

47

Cub Cadet 503-00201

Driving gear rubber washer

$12.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 503-00202

bushing A

$42.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 503-00203

Clamp 10

$10.99

$

Usually ships in 3-6 days

0
