Challenger 750 Red (37AY8CMD710) - Cub Cadet 4x4 Crew Utility Vehicle (2016) Engine Crankcase Parts Diagram

4x4 Crew Utility Vehicle

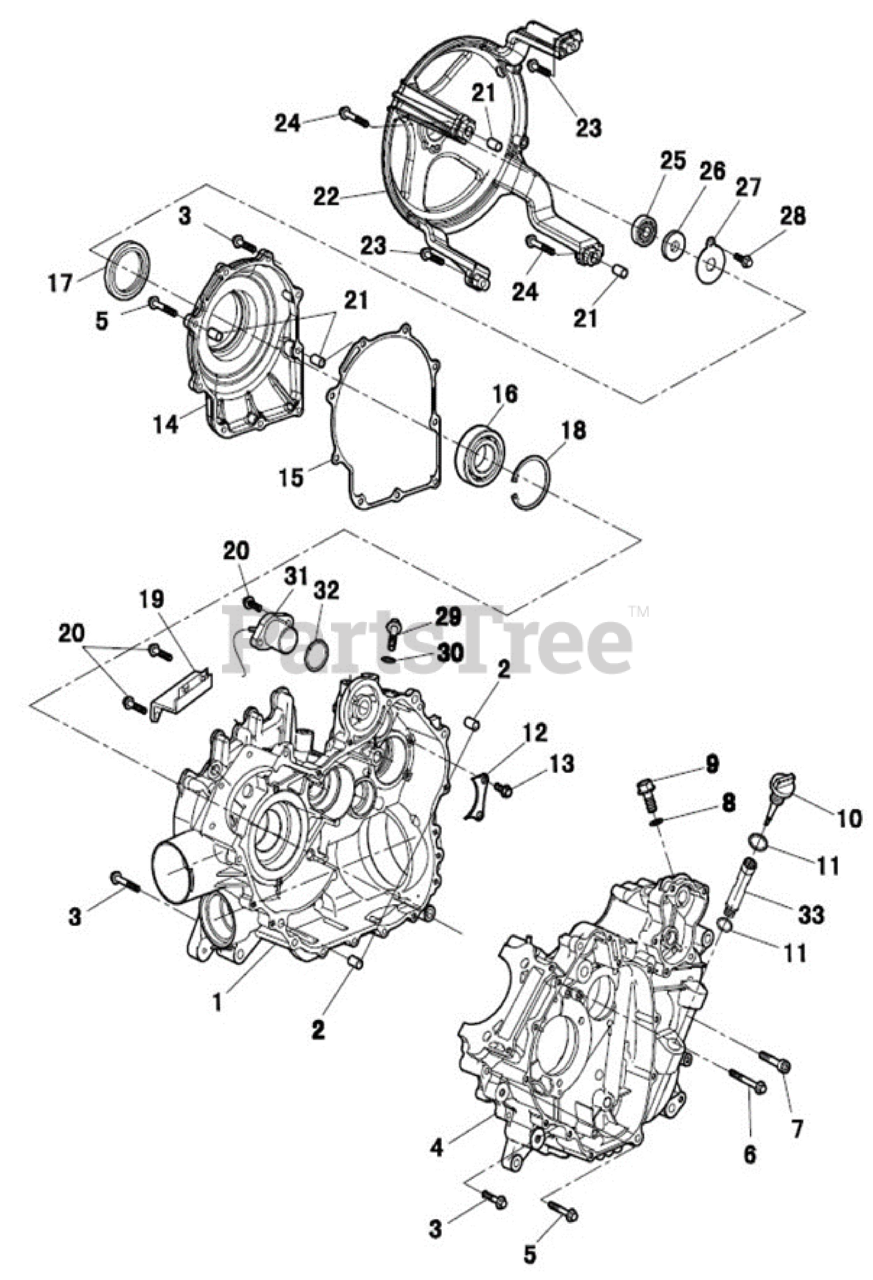

Engine Crankcase Parts Diagram

  • Title

1

Cub Cadet 503-01019

Right Crankcase Assy

$643.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 503-01020

Pin,Dowel 9X12X16

$6.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 503-01021

Hexagon flange bolts M6X30

$6.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 503-01022

Left Crankcase Assy

$642.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 503-01023

Hexagon flange bolts M6X40

$6.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 503-01024

Hexagon flange bolts M6X85

$6.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 503-01025

Hexagon socket head cap screws M8X40

$6.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 503-01026

Aluminum Washer 14X20X1.5

$9.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 503-01027

Hexagon flange Screw Plug M14X1.5X16

$7.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 503-01028

Plug,Oil Level

$6.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 503-01029

O-Ring 18X3.5

$6.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 503-01030

Press Plate,Main Shaft Bearing

$6.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 503-01031

Hexagon flange bolts M6X16

$6.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 503-01032

Bearing Block,outer cover

$173.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 503-01033

Gasket,Bearing Block
(Superseded to 503P01033)

$16.99

$

In Stock, only 2 left!

0

16

Cub Cadet 503-01034

Bearing 16010

$122.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 503-01035

Oil Seal 35X65X9

$72.99

$

In Stock, only 3 left!

0

18

Cub Cadet 503-01036

Circlip for hole 80

$10.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 503-01037

Bracket,CVT Vent-Pipe

$68.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 503-00990

Hexagon head bolt and plain washer assemblies M6X16

$6.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 503-00928

Pin,Dowel 10X16

$6.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 503-01038

Shield Bracket,Clutch

$322.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 503-01039

Hexagon flange bolts M6X32

$6.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 503-01040

Hexagon flange bolts M6X40

$6.49

$

Usually ships in 3-6 days

0

25

Cub Cadet 503-01041

Bearing 62012Z

$71.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 503-01042

Oil Seal 12X32X6

$28.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 503-01043

Press Plate,Bracket oil seal

$6.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 503-00921

Hexagon flange bolts M6X12

$6.49

$

Usually ships in 3-6 days

0

29

Cub Cadet 503-01044

Hexagon flange bolts M10X1.25X16

$5.49

$

Usually ships in 3-6 days

0

30

Cub Cadet 503-01045

Copper Washer 10X16X1

$3.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 503-01046

Sensor,Gear Indicator

$105.99

$

In Stock, only 1 left!

0

32

Cub Cadet 503-01047

O-Ring 29.6X2.4

$22.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 503-01048

Extended Oil Dipstick Pipe

$62.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 503-01049

Extended Oil Dipstick Pipe

$83.99

$

Usually ships in 3-6 days
