Challenger 750 Red (37AY8CMD710) - Cub Cadet 4x4 Crew Utility Vehicle (2016) Engine Cylinder Parts Diagram

4x4 Crew Utility Vehicle

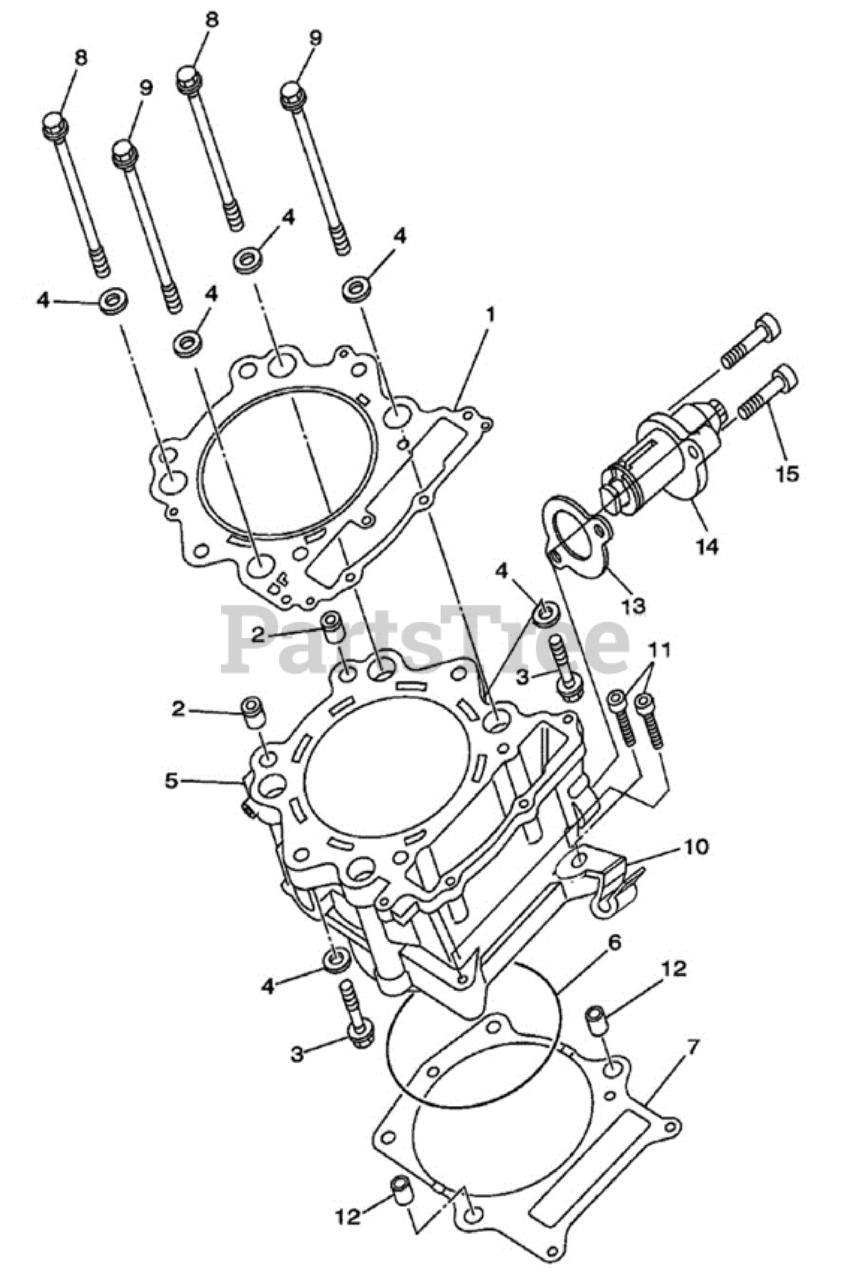

Engine Cylinder Parts Diagram

  • Title

1

Cub Cadet 503-00973

Gasket,Cylinder Head
(Superseded to 503-00973AP)

$46.99

$

In Stock, only 1 left!

0

2

Cub Cadet 503-00974

Pin,Dowel 12X16

$5.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 503-00975

Cylinder bolts M9X1.25X39

$7.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 503-00926

Washer 10X19X2

$3.99

$

In Stock, only 4 left!

0

5

Cub Cadet 503-00976

Cylinder Body assy

$651.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 503-00977

O-Ring 105.7X2.8

$32.99

$

In Stock, only 1 left!

0

7

Cub Cadet 503-00978

Gasket,Cylinder Body
(Superseded to 503P00978)

$24.99

$

In Stock, only 1 left!

0

8

Cub Cadet 503-00979

Cylinder bolts M10X1.25X121

$14.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 503-00980

Cylinder bolts M10X1.25X128

$13.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 503-00981

Pipe Clamp

$5.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 503-00941

Hexagon socket head cap screws M6X40

$5.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 503-00982

Pin,Dowel 14X16

$5.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 503-00983

Gasket,Tensioner
(Superseded to 503P00983)

$3.99

$

In Stock, Qty 10

0

14

Cub Cadet 503-00984

Tensioner
(Superseded to 503-00984P)

$68.99

$

In Stock, only 4 left!

0

15

Cub Cadet 503-00936

Hexagon socket head cap screws M6X25

$5.99

$

Usually ships in 3-6 days

0
