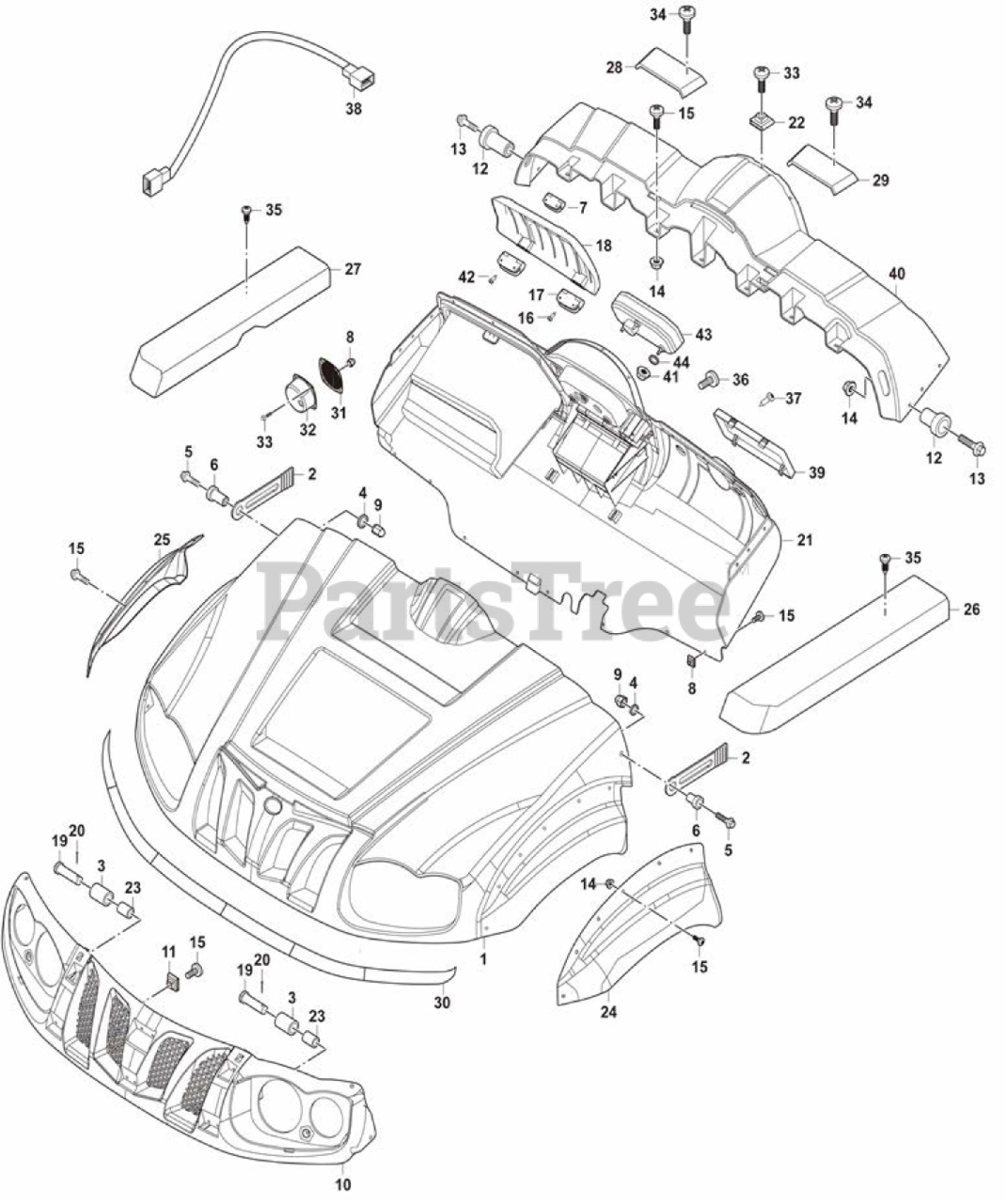

Challenger 750 Red (37AY8CMD710) - Cub Cadet 4x4 Crew Utility Vehicle (2016) Front Cover Parts Diagram

4x4 Crew Utility Vehicle

Front Cover Parts Diagram

  • Title

1

Cub Cadet 503-00074

Front board-Red

$443.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 503-00075

Front board-Blue

$443.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 503-00076

Front board-MTD Yellow

$476.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 503-00077

Front board-G2 Camo

$708.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 503-00078

Front Panel drawstring

$13.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 503-00079

Column Liner 13X25X30

$5.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 503-00019

Flat washer 6

$4.49

$

In Stock, only 4 left!

0

5

Cub Cadet B05-M6X25-57

Hexagon Flange Bolt M6X25

$2.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 503-00082

Turnup Liner 6X9X22X12

$15.99

$

In Stock, only 1 left!

0

7

Cub Cadet 503-00083

Sundry Box Locker

$68.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 503-00007

Hexagon Flange Self-Lock Nuts (With Metallic Insert) M6

$6.49

$

In Stock, Qty 5

0

9

Cub Cadet 503-00085

Cap Nut M6x12

$5.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 503-00086

mounting plate ?headlight

$156.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 503-00087

Nut clamp M6X2

$8.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 503-00088

Drawstring Seat, front Panel

$5.99

$

Usually ships in 3-6 days

0

13

Cub Cadet B05-M6X35-57

Hexagon Flange Bolt M6X35

$2.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 503-00007

Hexagon Flange Self-Lock Nuts (With Metallic Insert) M6

$6.49

$

In Stock, Qty 5

0

15

Cub Cadet 503-00091

Cross Large Plate Head Screw M6X16

$6.99

$

In Stock, only 4 left!

0

16

Cub Cadet B18ST3.9X13C-W7

Cross Small Plate Head Tapping Screw ST3.9X13

$1.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 503-00093

Plastic Hinges ,Sundry Box

$10.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 503-00094

Sundry Box Cover

$45.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 503-00095

Step Cotter Pin 12.5X94

$6.49

$

Usually ships in 3-6 days

0

20

Cub Cadet B12-2X30-W7

Cotter pin 2.5X30

$2.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 503-00097

Dashboard

$466.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 503-00098

Nut Clamp M6X6

$4.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 503-00082

Bushing

$15.99

$

In Stock, only 1 left!

0

24

Cub Cadet 503-00100

Left Fender

$42.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 503-00099

Right Fender

$62.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 503-00101

Left Trim

$108.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 503-00102

Right Trim

$108.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 503-00104

Meter shield, trim strip I

$36.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 503-00105

Meter shield, trim strip II

$69.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 503-00106

Trim Strip III, Front Panel

$28.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 503-00107

Speaker Cover

$17.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 503-00108

Speaker Case

$8.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 503-00092

Hexagon Small Head Screw M6X20

$7.99

$

Usually ships in 3-6 days

0

34

Cub Cadet B18ST3.9X13C-W7

Small Pan Head Tapping Screw With Cross Recess ST3.9X13

$1.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 503-00111

Small Pan Head Tapping Screw With Cross Recess ST3.9X13

$6.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 503-00112

Sunk Head Tapping Screw With Cross Recess ST6.0X20

$6.99

$

Usually ships in 3-6 days

0

37

503-00113

Small Pan Head Tapping Screw With Cross Recess ST6.2X16

$

$

Not available

38

Cub Cadet 503-00114

Connecting Cable, Speed Sensor

$97.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 503-00115

CD Case Cover

$105.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 503-01231

Meter shield-Red

$418.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 503-00117

Meter shield-Blue

$443.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 503-00118

Meter shield-MTD Yellow

$476.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 503-00119

Meter shield-G2 Camo

$563.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 503-00120

Hexagon Flange Nut M6

$10.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 503-00121

Meter Assy

$5.49

$

Usually ships in 3-6 days

0

43

Cub Cadet 503-00122

Meter Assy

$486.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 503-00019

Flat washer 6

$4.49

$

In Stock, only 4 left!

0
