Challenger 750 Yellow (37AY8CKD710) - Cub Cadet 4x4 Crew Utility Vehicle (2016) Front Swing Arm Parts Diagram

4x4 Crew Utility Vehicle

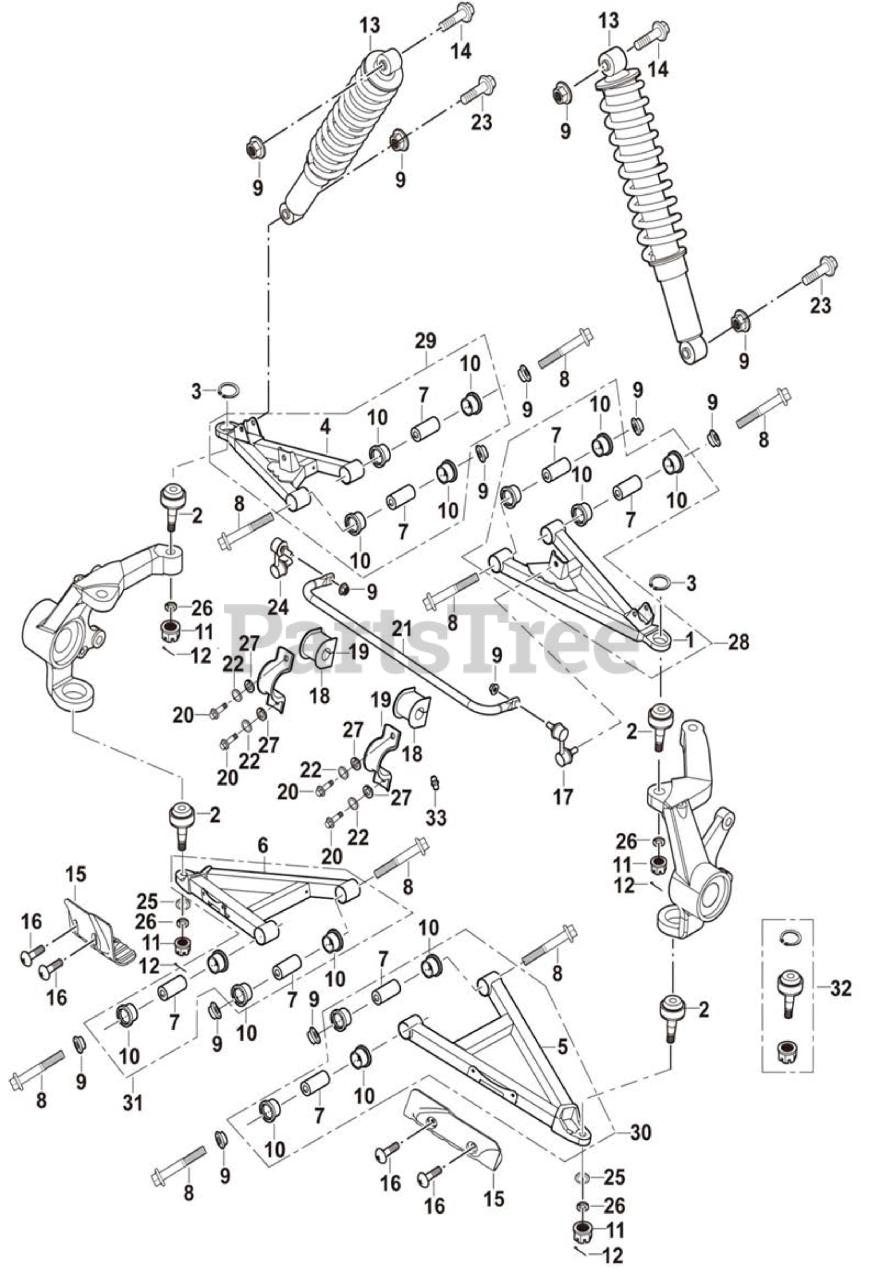

Front Swing Arm Parts Diagram

  • Title

1

Cub Cadet 503-00306

Front-Upper Suspension (L)

$140.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 503-00307

Universal Joint E
(Superseded to 503P0307B)

$63.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 503-00308

Elasticity Block Ring d=30

$20.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 503-00309

Front-Upper Suspension (R)

$150.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 503-00310

Front-Lower Suspension (L)

$132.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 503-00311

Front-Lower Suspension (R)

$140.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 503-00281

Bush 10.3X23X50

$30.99

$

In Stock, only 4 left!

0

8

Cub Cadet 503-00313

Hexagon Flange BoltM10X1.25X75

$7.99

$

Usually ships in 3-6 days

0

9

Cub Cadet B10-M10X1.25-27

Hexagon Flange Self-Lock Nuts M10x1.25

$2.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 503-00285

Bush 22X28

$7.49

$

Usually ships in 3-6 days

0

11

Cub Cadet B11-M12X1.25-22

hexagon thin slotted nut M12X1.25
(Superseded to PB11-M12X1.25)

$8.99

$

Usually ships in 3-6 days

0

12

Cub Cadet B12-2X30-W7

Cotter pin 2.5X30

$2.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 503-00318

Front Shock Absorber D

$302.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 503-00319

Hexagon Flange BoltM10X1.25X50

$10.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 503-00286

Front cradle backplate

$22.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 503-00140

Cross Large Plate Head Screw M6X12

$6.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 503-00295

Ball joint,left balancing lever

$80.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 503-00297

damped adhesive,balancing lever 20X45

$16.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 503-00298

mounting cap,cushion rubber

$12.99

$

Usually ships in 3-6 days

0

20

Cub Cadet B05-M8X30-57

Hexagon Flange Bolt M8X30

$2.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 503-00326

Anti-roll Bar, Front Suspension

$142.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 503-00005

Spring Washer-8

$6.49

$

In Stock, only 2 left!

0

23

Cub Cadet 503-00313

Hexagon Flange Bolt M10X1.25X75

$7.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 503-00296

Ball joint,right balancing lever

$86.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 503-00330

Flat Washer 12.5X24X2

$8.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 503-00331

Spring Washer 12

$8.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 503-00287

Washer8

$5.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 503-00333

Front left upper rocker arm

$134.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 503-00334

Front right upper rocker arm

$154.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 503-00335

Front left lower rocker arm

$138.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 503-00336

Front right lower rocker arm

$138.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 503-00337

Front Knuckle Ball Joint
(Superseded to 503-00337P)

$77.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 503-00305

Swing arm nozzle

$13.99

$

Usually ships in 3-6 days

0
