Challenger 750 Yellow (37AY8CKD710) - Cub Cadet 4x4 Crew Utility Vehicle (2016) Radiator 1 Parts Diagram

4x4 Crew Utility Vehicle

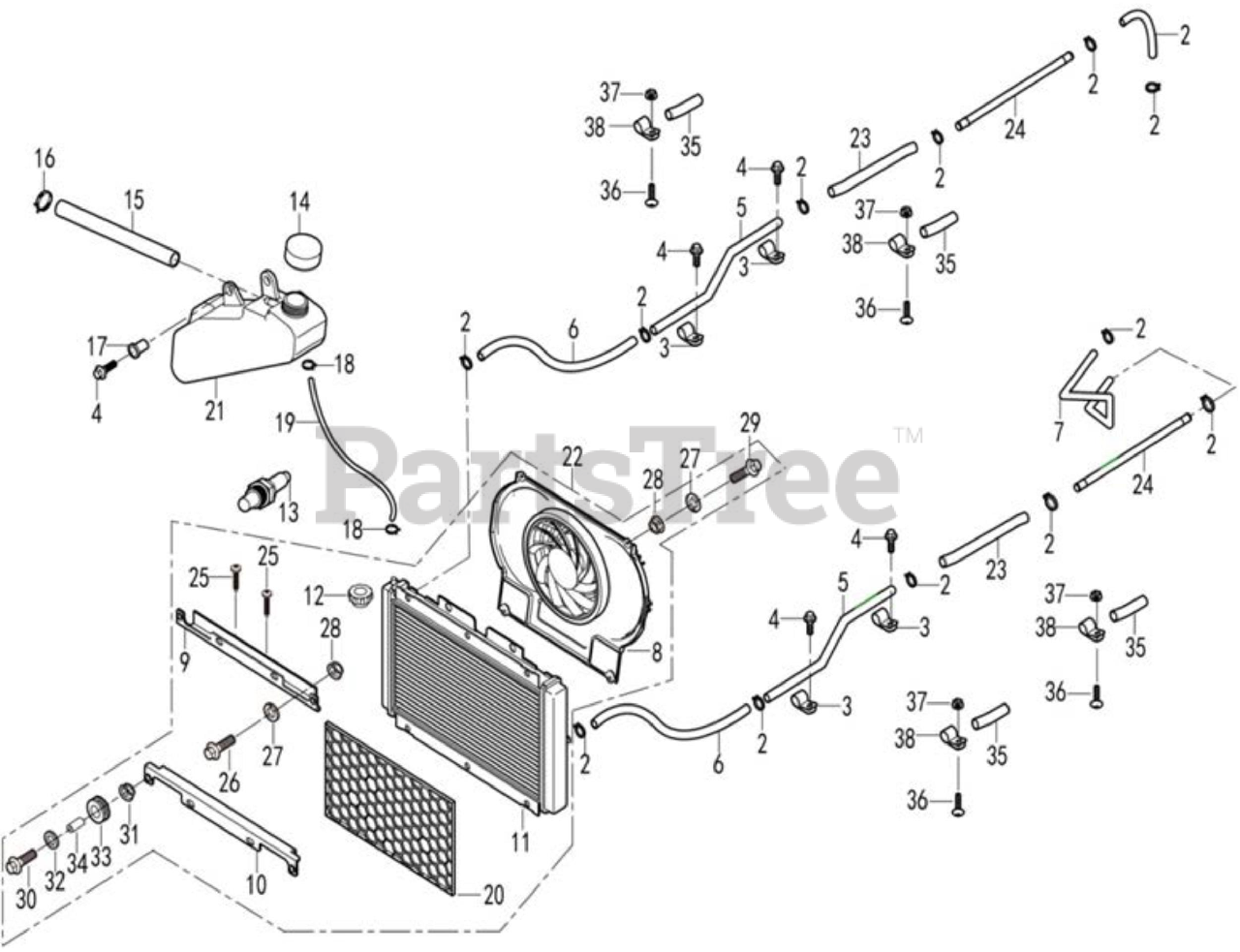

Radiator 1 Parts Diagram

  • Title

1

Cub Cadet 503-00748

water inlet

$55.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 503-00749

Screw Clip D

$10.99

$

In Stock, only 2 left!

0

3

Cub Cadet 503-00017

Clip V, Water Pipe

$11.99

$

Usually ships in 3-6 days

0

4

Cub Cadet B05-M6X16-57

Hexagon Flange Bolt M6X16

$2.49

$

In Stock, only 1 left!

0

5

Cub Cadet 503-00752

Metal Water Pipe I

$95.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 503-00753

water inlet

$66.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 503-00754

Exhalent siphon

$64.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 503-00755

Cooler Fan Assy

$557.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 503-00756

Radiator Support I

$24.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 503-00757

Radiator Support 2

$21.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 503-00758

Weding Water Tank Assy

$1826.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 503-00759

Water Tank Cover

$27.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 503-00760

Water Temperature Sensor

$149.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 503-00761

Secondary water tank cover

$14.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 503-00762

Exhalent siphon for auxiliary kettle

$68.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 503-00344

Flexible Clamp D

$11.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 503-00508

Bush 6.5X22X6.5

$8.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 503-00183

Elastic hoop C

$12.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 503-00766

water inlet for auxiliary kettle

$19.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 503-00767

Radiator Cover

$45.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 503-00768

Second Water Tank

$89.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 503-00769

Cooling water tank component

$823.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 503-00770

water inlet

$31.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 503-00771

Metal Water Pipe I

$36.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 503-00772

Self-tapping screw ST4.8X13

$5.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 503-00773

Flange Bolt M6X14

$6.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 503-00774

Spring Washer 6

$5.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 503-00775

Flange Nut M6

$5.49

$

Usually ships in 3-6 days

0

29

Cub Cadet 503-00776

Hexagon Bolt M6X18

$5.49

$

Usually ships in 3-6 days

0

30

Cub Cadet 503-00777

Flange Bolt M6X25

$8.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 503-00399

Flange Nut M6
(Superseded to 503-01350)

$4.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 503-00019

Flat washer 6

$4.49

$

In Stock, only 4 left!

0

33

Cub Cadet 503-00780

Water tank bracket Ring

$13.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 503-00781

Water tank bracket Bushing

$11.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 503-00782

Water pipe boot

$20.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 503-00091

Cross pan screw M6X16

$6.99

$

In Stock, only 4 left!

0

37

Cub Cadet 503-00007

Nut M6

$6.49

$

In Stock, Qty 5

0

38

Cub Cadet 503-00785

Water pipe clamp

$11.99

$

Usually ships in 3-6 days

0
